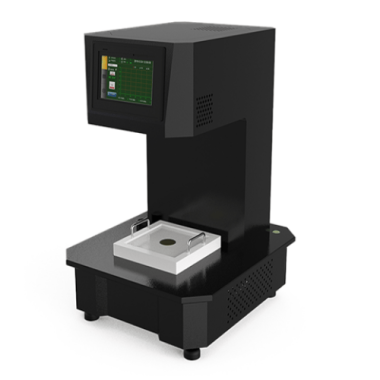

Luminous Afterglow Performance Tester
The luminous afterglow performance tester is suitable for testing the luminous afterglow performance of various textiles. Fibers, yarns, and powders can all be tested.
Applicable Standards
GB/T 43716 - 2024 Textiles - Test Method for Luminous Afterglow Performance - Photometer Method
Testing Principle
Use the specified light source as the excitation light source. Under the specified illuminance conditions, directly irradiate the sample. After the sample is excited to saturation, remove the excitation light source, and measure the afterglow brightness and decay time on the sample surface through a brightness meter.
Instrument Features
Automatically record the brightness value within the set time through software. Fully automatic measurement, simple operation, capable of long-time measurement, and automatically save data.
Multiple light-shielding designs in the fully enclosed test chamber reduce the influence of external light sources on test results.
Automatically switch test samples. One set of samples can be tested at a time for 3 groups.
Specially made imported sensors with fast sampling speed and high accuracy.
Wide testing range, covering powders, fibers, yarns, fabrics, etc.
Standard Configuration
1 main unit
1 Lenovo integrated computer
1 Lenovo laser printer
3 sample clamps
1 excitation light source
Technical Parameters
Excitation light source: Fluorescent lamp, color temperature (6500 ± 500) K
Brightness meter: 0 - 10000 mcd/m², resolution: 0.01 mcd/cm², accuracy: ±5%
Illuminometer: 0 - 10000 lx, resolution: 0.1 lx, accuracy: ±4%
Approximate weight of the whole machine: 30 kg
Power supply: AC 220V/50Hz
Approximate external dimensions: 375 x 500 x 598 mm (W x D x H)
