Photovoltaic module insulation resistance tester
The Photovoltaic Module Insulation Resistance Tester is a precision instrument designed for simultaneous measurement of insulation resistance and leakage current in PV modules. It ensures compliance with IEC 61215 and UL 61730 standards, providing reliable and non-destructive testing for residential, commercial, and utility-scale photovoltaic modules. The tester integrates advanced AI-powered diagnostics and auto-ranging functionality for efficient and accurate evaluation of module insulation integrity.
Application
The tester is suitable for:
Quality control in photovoltaic module production lines.
Research and development of module insulation materials.
Periodic inspection of installed PV modules for insulation degradation.
Testing for potential PID (Potential Induced Degradation) risks.
Standards
IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval
UL 61730: Safety Standard for Photovoltaic Modules
ISO 17025: General Requirements for the Competence of Testing and Calibration Laboratories
CE Certification (Conformité Européenne)
Features
Dual-Parameter Testing: Simultaneously measures insulation resistance and leakage current, eliminating the need for separate instruments.
High Reliability: AI-assisted diagnostics automatically flag insulation breakdown patterns and predict PID risks.
User-Friendly Operation: Laser-guided probe placement ensures precise contact on textured module surfaces.
Non-Destructive Testing: Preserves sample integrity during measurement.
Environmental Compensation: Dynamic calibration corrects for temperature and humidity drift.
Safety Assurance: Dual redundant emergency circuits and E-stop ensure safe operation.
Integration Capability: Can interface with MES/ERP systems and cloud-based analytics for smart data management.
Parameters
| Parameter | Specification |
|---|---|
| Insulation Resistance | 100 kΩ – 10 TΩ (10⁵ Ω – 10¹³ Ω) |
| Leakage Current | 10 nA – 20 mA (auto-ranging) |
| Test Voltage | 1.0 – 1,000 VDC (0.1 V steps <100 V, 1 V steps ≥100 V) |
| Voltage Accuracy | ±1% (at 1,000 VDC) |
| Measurement Speed | 55 / 25 / 3 readings/second (high / medium / full) |
| Max Charging Current | 30 mA ±5 mA |
| Power Supply | 100–240V AC, 50/60Hz (universal adapter) |
| Dimensions (W×D×H) | 300mm × 250mm × 150mm |
| Weight (Net/Gross) | 5 kg / 7 kg |
在线联系供应商
Other supplier products
 |
G238BB Electronic Crockmeter | G238BB Electronic Crockmeter(Electronic rubbing colour fastness tester) G238BB Electronic Crockmeteris used for testing the color fastness of fabr... |
 |

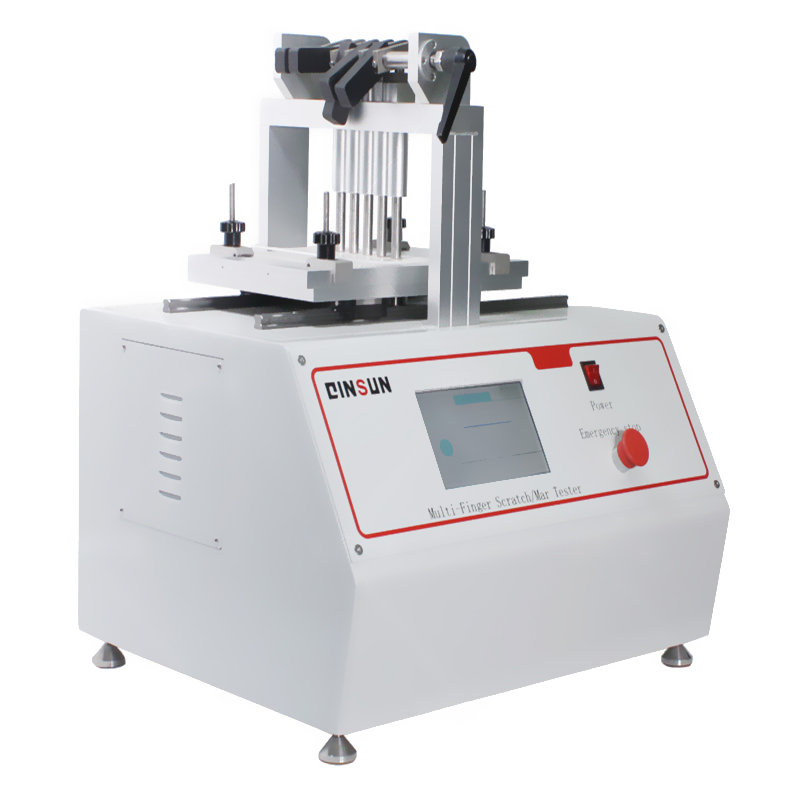

Five-Finger Scratch Tester | The Five-Finger Scratch Tester is suitable for testing automotive interior materials, plastics, rubber, leather, coated fabrics, coated materials, ... |
 |
