Liquid Sliding Penetration Comprehensive Performance Tester
The G373 Liquid Sliding Penetration Comprehensive Performance Tester is a precision instrument designed to evaluate the liquid penetration properties of diapers and hygienic non-woven fabrics. It measures strike-through, back-seepage, and penetration efficiency, simulating real-world liquid exposure to assess product performance and reproducibility. The instrument combines a solenoid-controlled funnel, adjustable sample holder, and automated data acquisition for accurate, repeatable testing.
Application
The tester is widely used in:
(1) Diaper and hygiene product manufacturing: evaluating absorbency, strike-through, and backflow resistance
(2) Non-woven fabric R&D: testing liquid penetration properties of sanitary materials
(3) Quality control laboratories: verifying batch-to-batch performance of diapers and pads
(4) Third-party testing institutions: product performance certification
(5) Regulatory and supervisory agencies: monitoring compliance with hygiene and safety standards
Standards
QB/T 2493-2000: Diapers (including diaper care/pads)
FZ/T 60017-1993: Hygienic thin non-woven fabric liquid permeability test method
ISO 9073-6: Nonwovens – Determination of liquid penetration
ASTM F1869/F1869M: Standard test method for liquid penetration resistance of textiles
Product Features
(1) Solenoid-controlled funnel: simulates liquid application for penetration and strike-through testing.
(2) Adjustable mechanical sample holder: allows multi-test setups with precise angle control for reproducibility.
(3) Sensor-integrated control system: captures real-time liquid penetration data.
(4) Data processing software: transmits test results to a computer, generates curves, and supports in-depth analysis.
(5) Automated operation: simplifies the test process for consistent, accurate results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample Holder Angle | 30° ± 2° |
| Penetrating Efficiency | Time to penetrate 50 mL of liquid |
| Pressing Weight | Ø100 mm, 1.2 ± 0.002 kg (produces 1.5 kPa pressure) |
| Pressing Block Pressurization Time | 1 min |
| Funnel Flow | 80 mL / 6 s |
| Strike-Through Penetration Time | 10 min |
| Power Supply | 220V, 50Hz |
| Instrument Weight | 30 kg |
| Dimensions | 500 × 600 × 500 mm (L×W×H) |
在线联系供应商
Other supplier products
 |
Fabric thickness tester | Fabric thickness tester mainly used to measure the thickness of the fabric, suitable for leather, rubber and textiles and other materials, the thic... |
 |

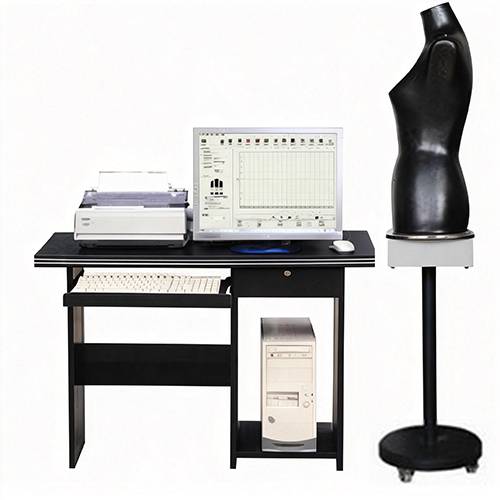

Simulated Human Body Underwear Tester | The Simulated Human Body Underwear Tester is designed to evaluate the wearing pressure and contact force between underwear or garments and the huma... |
 |
