Touch Haptics Test System
The Touch Haptics Test System is a precision laboratory instrument designed to evaluate the tactile perception and haptic quality of automotive interior materials. The system measures key parameters such as indentation force, rebound force, sliding friction, stick-slip behavior, and surface roughness under controlled conditions, providing objective data for material selection, design optimization, and quality control. This ensures user comfort, perceived luxury, and consistent tactile experience in vehicle interiors.
Application
(1) Automotive seat surfaces: leather, fabric, synthetic leather, and composite materials.
(2) Instrument panels, center consoles, and decorative trims: soft-touch plastics, coatings, laminates.
(3) Door panels, armrests, glove compartments: tactile evaluation of touch surfaces.
(4) Steering wheels, gear knobs, cup holders: high-frequency touch surfaces.
(5) Surface treatment and coating optimization: microtexture, friction tuning, coating selection.
(6) Material development and quality control: batch testing, formula improvement.
(7) User experience and ergonomics research: quantitative evaluation of tactile comfort and perceived quality.
Parameters
| Parameter | Range / Specification | Description |
|---|---|---|
| Micro Surface Roughness | Ra, Rq, Rz | Nanometer-level accuracy |
| Macro Surface Roughness | Measure material texture / waviness | ±1 μm |
| Indentation Force | 0–50 N | Simulates fingertip pressure |
| Rebound Force | 0–50 N | Measures material recovery |
| Sliding Friction Force | 0–10 N | Static and dynamic friction |
| Stick-Slip Pulse Frequency | 0–150 Hz | Friction discontinuity and micro-slip |
| Temperature Simulation | 0–50 ℃ | Simulates finger contact temperature |
| Sensor Sampling Frequency | ≥1 kHz | Real-time data acquisition |
| Control | PLC / PC | Programmable, automatic curves and reports |
| Machine Dimensions | 600 × 400 × 500 mm | Desktop lab design |
| Test Head Type | Artificial finger or custom probe | Simulates real fingertip touch |
在线联系供应商
Other supplier products
 |
Rubber Mooney Viscosity Tester | The Rubber Mooney Viscosity Tester measures the viscosity of rubber under controlled temperature and shear conditions. A rubber sample is loaded in... |
 |
Nanofiber electrospinning device | The Nanofiber Electrospinning Unit uses electrospinning techniques to safely and easily produce nanofibers with diameters of 50 to 800 nm. This dev... |
 |
Nail Hammer Snag Tester | The nail hammer snag tester is mainly used to evaluate the ability of fabrics to resist snag. Structure and principle Structure: It is generally... |
 |
rca tape scroll abrasion testing machine | TheRCA Abrasion Wear Testeris used to test surfaces for resistance to abrasion and wear. Typically used on painted or plated organic finishes, foil... |
 |

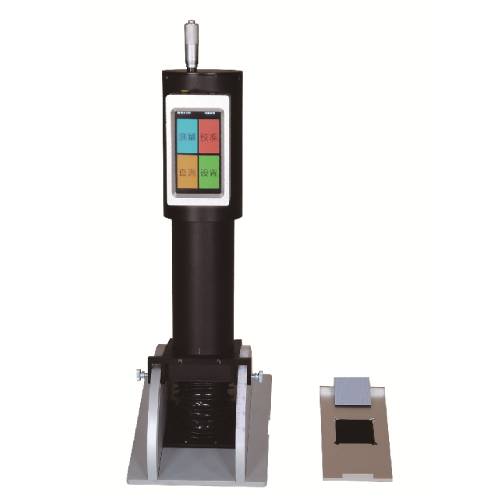

Retro-Reflective Coefficient Tester | The Retro-Reflective Coefficient Tester is a precision instrument designed to evaluate the retro-reflective performance of high-visibility safety m... |
