Expansion Tank Static Pressure Test Machine
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Expansion Tank Static Pressure Test Machine is suitable for a variety of automotive component testing applications:
Expansion Tanks: Evaluate static pressure resistance, leakage, and functional performance.
Coolant System Components: Test caps, valves, and connectors under controlled static pressure.
Material Durability Testing: Assess long-term reliability of plastic, metal, and composite tank materials.
Quality Control: Ensure compliance with OEM and supplier specifications for automotive cooling systems.
R&D and Certification Testing: Support component development, validation, and system integration.
Typical test products include automotive expansion tanks, coolant reservoir tanks, and associated components requiring static pressure evaluation.
Standards
The system supports compliance with major automotive engineering standards:
VW TL889 (4.1) – Volkswagen Group technical specification for interior and related component functional performance.
ESDG93-8A080-AA (3.6) – Ford engineering specification for component functionality and reliability.
GMW15310 (3.2.1.2) – General Motors global standard for material and component performance testing.
QV17004D (3.2.6) – BMW group specification for system component functionality and durability.
Parameters
| Parameter Category | Details |
|---|---|
| Test Bench Dimensions | 2200 × 2240 × 1550 mm (W × H × D) |
| Chamber Dimensions | 1000 × 800 × 1000 mm (W × H × D) |
| Rated Power | 9.5 kW |
| Test Medium | Glycol/Water |
| Pressure Range | 0 … 5 bar |
| Flow Rate per Sample | 0 … 8 l/h |
| Pressure Type | Static |
| Test Medium Temperature Range | 25 … +150°C |
| Environmental Temperature Range | 25 … +150°C |
| Test Channels | 6 |
在线联系供应商
Other supplier products
 |

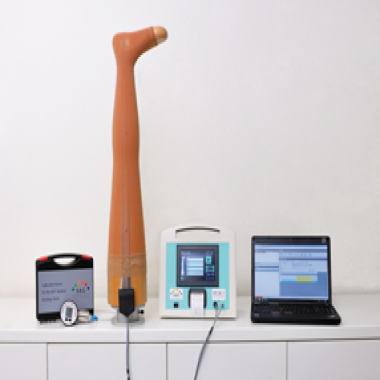

Medical Compression Stocking Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The instrument is widely used for quality control of medical compression stockings... |
 |
