Automatic Water Separation Test System
Applications
Textile Manufacturing:Testing waterproof fabrics for outdoor gear
R&D:Developing hydrophobic coatings for medical textiles
Quality Control:Batch inspection of rainwear
Forensic Analysis:Evaluating fabric degradation from water exposure
Standards
AATCC 22 (Spray Rating), ISO 4920 (Water resistance)
Key Metrics:
Water Repellency Rating (0–5 scale)
Separation Efficiency (%)
Absorption Time (seconds)
Sample Size: 150×150mm (adjustable clamping)
Compliance Standards
AATCC 22 (Water repellency spray test)
ISO 4920 (Textile water resistance)
EN 343 (European waterproof standard)
GB/T 4744 (Chinese hydrostatic pressure test)
Features
Dual Test Modes:
Spray Test:AATCC 22 vertical hydrophobicity evaluation
Drainage Test:ISO 4920 dynamic water separation
Advanced Detection:
High-speed camera (120fps) with image analysis
AI-based droplet tracking (5 severity levels)
Real-time absorption rate calculation
Automation:
Auto-fill/empty water reservoir
Programmable nozzle angle adjustment
Self-cleaning drainage system
Technical Parameters
| Parameter | Specifications |
|---|---|
| Spray System | 12-nozzle array (0.5mm droplet size) |
| Water Pressure | 50±5 kPa (programmable) |
| Test Duration | 1–30 minutes (auto-stop) |
| Drainage Rate | 1.5L/min (recirculating system) |
| Measurement Accuracy | ±1% FS (ISO 376 standard) |
| Dimensions | 800×600×1200mm (L×W×H) |
Accessoriess
1. Main unit;
2. Analysis software;
3. Conductivity tester
在线联系供应商
Other supplier products
 |
Fire-Resistance Cable Burning Test Apparatus,Accurate Fireproof Measurement for Wire Insulation | The Fire-Resistance Cable Burning Test Apparatus (Cable Fire Integrity Tester) is designed to evaluate the ability of mineral-insulated cables and ... |
 |
Bending Tester STD- FB2 - S，ASTM D790 advanced material flexibility test device | Compliance Standards ASTM D790 (Plastics Flexural Properties) ISO 178 (Flexural Strength of Rigid Plastics) SAE J2748 (Automotive Composite Flex... |
 |
Shoe heat insulation testing machine -- sand bath | Standard GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure. EN ISO 20344: European standard for... |
 |

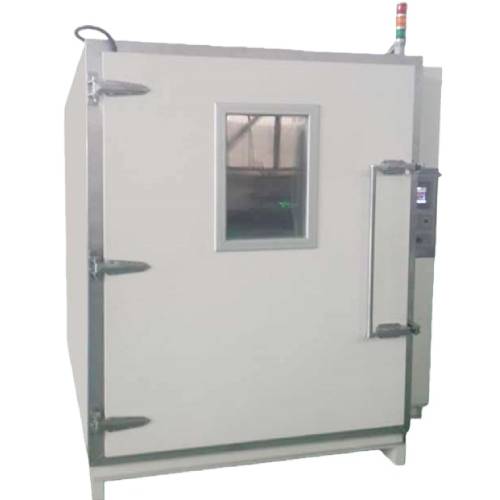

Photovoltaic Acid Corrosion Test Chamber | Applications The Photovoltaic Acid Mist Test Chamber is a specialized device designed to simulate coastal environments with high salt fog concentr... |
 |
