Vacuum Blood Collection Tube Suction Volume Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Vacuum Blood Collection Tube Aspiration Volume Tester is mainly used to detect the aspiration volume of disposable human venous blood sampling containers, especially to check whether they meet the standard requirements in different altitude areas. The tester precisely measures the aspiration volume of blood collection tubes by simulating different altitude or air pressure conditions, thereby evaluating the performance of blood collection tubes in various environments. This is crucial for ensuring the accuracy and reliability of blood collection tubes in actual use, and helps maintain the quality of blood samples and the accuracy of diagnostic results.
Standards
The design and manufacture of the Vacuum Blood Collection Tube Aspiration Volume Tester must comply with relevant medical industry standards, such as YY 0314 - 2021Disposable Human Venous Blood Sampling Containers. This standard clearly specifies key indicators, including the error range of the aspiration volume of blood collection tubes, container leakage tests, and container strength tests, to ensure the usability and safety of blood collection tubes. The tester must strictly adhere to these standards during the design and manufacturing process to ensure the accuracy and reliability of test results.
Features
1.Adoption of PLC Industrial Control System: The PLC industrial control system offers high stability and reliability, ensuring precise control of the testing process. It can quickly respond to various commands, enabling accurate adjustment of parameters such as test pressure and time, guaranteeing high accuracy and repeatability of test results. For example, when performing multiple blood collection tube aspiration volume tests, the PLC control system ensures consistent test conditions each time, improving testing efficiency and accuracy.
2. 7-inch HMI Touchscreen:Operation is simpler and more intuitive. Test personnel can easily set test parameters and view test results via the touchscreen, eliminating complex operating procedures. Even first-time users can quickly master the operation method, improving work efficiency.
3. Extra-thick Acrylic Vacuum Chamber: Provides excellent sealing and visibility. The sealing ensures the stability of the pressure environment during testing, preventing external air interference with test results; the visibility allows test personnel to observe the puncture and blood collection process of the blood collection tube, enabling timely detection and resolution of problems.
4. Built-in Vacuum Device:Eliminates the need for an external air source, reducing the complexity and cost of equipment use. Users only need to connect the power supply to quickly start testing, making it convenient and suitable for testing needs in various locations.
Technical Parameters
| Serial No. | Parameter Item | Parameter Details |
|---|---|---|
| 1 | Vacuum Degree | Test range: 0 - 90kPa (meets testing requirements of different altitude areas) |
| 2 | Vacuum Degree Accuracy | 0.5- level (ensures measurement precision) |
| 3 | Vacuum Degree Maintenance Performance | Equipped with automatic air-supplement and constant-pressure maintenance functions (ensures vacuum degree stability during testing) |
| 4 | Operation Control Mode | Fully automatic control + touch-screen operation (simplifies testing process and improves efficiency) |
| 5 | Air Source Pressure Requirement | 0.7 - 0.9MPa (air source to be provided by user; ensures normal operation of the tester) |
| 6 | Air Source Generator | Uses imported components (e.g., Japanese SMC generators) with a stability of ±0.1kPa (improves testing accuracy) |
| 7 | Power Supply | Supports multiple specifications (e.g., AC 220V 50Hz/120V 60Hz) (adapts to different regional power environments) |
| 8 | External Dimensions | Main unit size: 300mm(L)×385mm(W)×150mm(H) (specific size may vary by model; easy to place and operate) |
| 9 | Weight | Net weight of main unit: approximately 7kg (actual weight may vary by configuration; facilitates portability and movement) |
| 10 | Language | Supports Chinese/English (standard configuration); other languages (e.g., Russian, Traditional Chinese) available for customization (meets different users' needs) |
在线联系供应商
Other supplier products
 |
Electrical bushing flame retardant tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email：serving@qinsun-lab。com Product Introduction: The flame retardant test inst... |
 |
Shoe Peeling Strength Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Shoe Peeling Strength Tester is designed to evaluate the adhesive bond strengt... |
 |

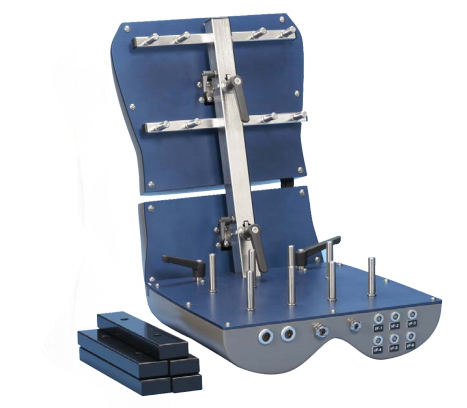

Seat Thermal Manikin | The Seat Thermal Manikin is designed to evaluate thermal comfort and humidity management performance of automotive, truck, office, and aircraft sea... |
 |
