Explosion simulation testing system for gases
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
The Gas Explosion Pressure Test Apparatus is suitable for:
Measurement of maximum explosion pressure (Pmax) and pressure rise rate of industrial and laboratory gases.
Testing gases released from battery systems or other energy storage devices according to UL 9540A.
Laboratory research on explosion characteristics of various combustible gases.
Specific Testing Equipment:
Gas sample chambers for combustion/explosion testing
Pressure and temperature data acquisition systems
Industrial and laboratory safety testing devices
Standards
The system conforms to the following national and international standards:
BS EN 15967:2011 – Determination of maximum explosion pressure and maximum rate of pressure rise of gases and vapours
UL 9540A – Standard for Testing Energy Storage Systems and Equipment
ISO 10156 – Gases and Gas Mixtures – Determination of Flammability Limits
ASTM E1226 – Standard Test Method for Explosibility of Dust Clouds
Parameters
| Unit | Specification |
|---|---|
| Explosion Pressure Acquisition | Dynamic data acquisition card, 24-bit resolution, 128 KS/s sampling frequency |
| Chamber Interior | Built-in 19-inch touch screen, integrated electrical control circuits for mobility |
| Test Container | Sphere structure, internal volume ≈ 20 L, internal radius 168 mm, wall thickness 12 mm, stainless steel, max. pressure 3 MPa |
| Chamber Pressure Rating | Maximum 3 MPa, constant endurance ≥ 2 MPa, engineering safety valve rated 2.5 MPa |
| Ignition Electrode | Center-mounted, diameter 4 mm, tip angle 60°, distance between tips ≈ 5 mm |
| Thermocouple | K-type armored, range 0–1000 °C, accuracy 0.1 °C |
| Explosion Container Dimensions | 1800 (L) × 750 (D) × 1750 (H) mm |
| Control Box Dimensions | 650 (W) × 675 (D) × 1750 (H) mm |
| Power Supply | AC 220 V, 50/60 Hz |
| Weight | Approx. 330 kg |
| Auxiliary Gas Source | Nitrogen |
Accessories
Stainless steel spherical test container
Explosion-proof observation window
Ignition electrode assembly
K-type armored thermocouple with flange and ferrule interfaces
Siemens PLC and analog modules
19-inch touch screen
Electrical control cabinet with industrial PC and data acquisition modules
Manual ball valve
Safety pressure relief valve (2.5 MPa)
Auxiliary nitrogen supply interface
在线联系供应商
Other supplier products
 |
Surgical Mask Flame Retardant Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Surgical Mask Flame Retardant Tester is designed to evaluate the flame-retardant perfor... |
 |
Laboratory Flame Spread Tester for Insulation Panels | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards This tester conforms to the following national and international standards: GB/... |
 |

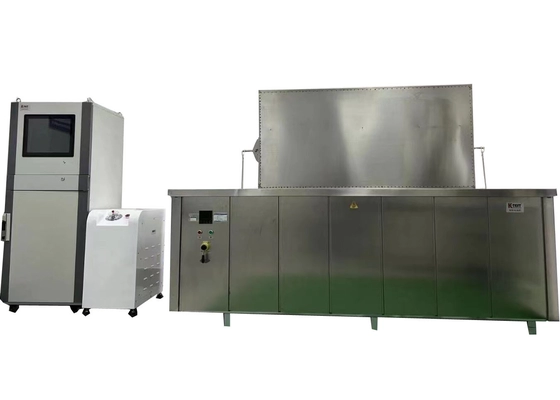

Plastic Pipe Hydrostatic Pressure Burst Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Plastic Pipe Hydrostatic Pressure Burst Tester utilizes an international airless pressu... |
 |
