Full-Body Garment Stress Tester FZ/T 70015-2022

Get a quote:

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

Full-Body Garment Stress Tester is used to evaluate the pressure exerted by various form-fitting garments or other wearable apparel on the human body. It quantifies the perceived pressure of clothing on the body into specific numerical data and enables assessment of test results. The manikin can perform both static and dynamic testing.

Dynamic postures meet the following requirements, considering the integrity of the form: the rear of the knees must not be left unprotected.

Standards

FZ/T 70015-2022 :Test Methods and Evaluation of Pressure in Knitted Compression Garments

Features

1.Accurate measurement of garment pressure at multiple body locations with high-resolution sensors.

2.Supports bothstaticanddynamic testing, simulating real-life movement and posture.

3.Pressure mapping allows objective evaluation of garment comfort and functionality.

4.Dynamic mannequin posture designed to maintain full body integrity, with clearance behind knees.

5.Enables design optimization for sports, medical, and fashion applications through data-driven analysis.

Parameters

ItemSpecifications
Pressure Mannequin Average Asian female body type, height: 155 ~ 165 cm
Pressure Measurement Range 0 ~ 90 mmHg
Test Accuracy ≤0.1 mmHg
Resolution ≤0.1 mmHg
Sensors 26 independent sensors, each measuring a separate point. The sensor surface is flat and stable, with no mutual interference between measurement points.

Accessories

1.Full-body mannequin (Asian female average build, height 155–165 cm)

2.26-point high-precision pressure sensor array

3.Data acquisition and analysis software

4.Adjustable fixtures for dynamic posture simulation

5.Calibration tools and reference pressure standards


在线联系供应商

至: Standard Groups
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

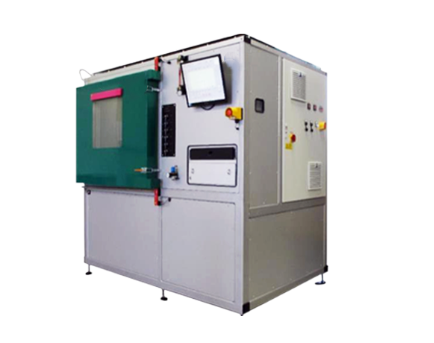

Expansion Tank Static Pressure Test Machine
