Factory price shoelace wear tester

Get a quote:

Whats/App: +86 156 1874 6768

Web: standard-groups.com

Applications

The tester is suitable for evaluating the abrasion resistance of shoelaces and eyelets in:

(1) Athletic shoes: Running shoes, basketball shoes, football shoes.

(2) Casual shoes: Sneakers, loafers, canvas shoes.

(3) Work and safety footwear: Industrial boots, steel-toe shoes with reinforced eyelets.

(4) Children’s footwear: School shoes and sports shoes with frequent lacing.

(5) Leather footwear: Dress shoes with leather laces and metal eyelets.

(6) Outdoor footwear: Hiking boots, trekking shoes, and waterproof boots.

(7) Footwear R&D: Testing innovative shoelace materials, coatings, or eyelet designs.

Standards

(1) SATRA TM93 — Footwear: Shoelace and Eyelet Abrasion Test

(2) DIN 4843 — German Standard for Footwear Component Abrasion

(3) QB/T 2226 — Chinese Standard for Shoelace and Eyelet Durability

(4) SATRA TM154 — Footwear Lacing System Durability Testing

(5) ISO 22774 — Textiles and Plastics – Shoelace Abrasion Testing

(6) EN ISO 20344 — Personal Protective Equipment — Footwear — Test Methods

(7) ASTM F2023 — Standard Test Method for Footwear Components

(8) BS 5131:3.6:1991 — British Standard for Footwear Lacing Components

Features

(1) Evaluates durability and service life of shoelace-eyelet systems under realistic wear conditions.

(2) Simulates actual friction and tension to ensure reliable and repeatable test results.

(3) Six simultaneous test positions improve testing efficiency.

(4) Provides objective, quantitative results for quality control and R&D purposes.

Technical Parameters

ItemSpecification
Test Positions 6
Weights 455 g ± 5 g, 6 pcs
Test Speed 100 ± 5 cpm
Stroke 76 ± 2 mm
Standard Eyelet Brass, inner diameter 4.5 mm
Fiberboard 25 × 25 mm, inner diameter 5.0 ± 0.2 mm
Control Method Touch-screen control
Counter 0–999.999 cycles
Power Supply 1∮ AC 220V 50/60 Hz
Dimensions (W×D×H) 57 × 58 × 1025 mm
Weight (approx.) 60 kg (excluding weights)

Accessories

(1) Standard weights (455 g × 6)

(2) Fiberboard with pre-mounted brass eyelets (6 pcs)

(3) User manual and calibration certificate

(4) Power cable

(5) Wrench for sample installation


在线联系供应商

至: Standard International Group (HK) Limited
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

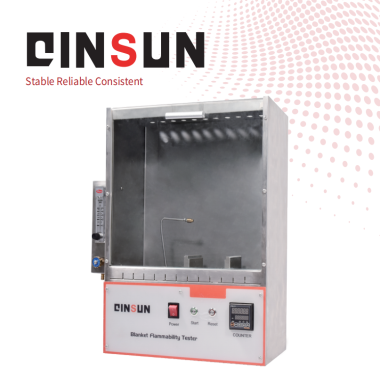

Textile Blanket Flammability Tester Complying with 16 CFR Standards
