Full Notch Creep Tester
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
This testing machine is used to test the environmental stress cracking performance of plastic materials. The equipment features touchscreen operation, weight loading, and ensures independent operation of each workstation, uniform temperature distribution, and stable and consistent test results. In addition, a water level monitoring function alerts the operator when the water level is too low.
Applications
1. Plastics/Piping Industry: Testing the high-temperature creep fracture behavior of pipe materials such as PE and PPR to verify long-term service reliability (e.g., water supply and gas pipelines);
2. Automotive Industry: Evaluating the creep stability of plastic/metal components under high-temperature conditions around the engine and exhaust system;
3. Aerospace/Electronics: Verifying the creep resistance of composite materials and electronic packaging materials in high-temperature environments to ensure long-term equipment operation;
4. Chemical/Energy Industry: Testing the creep fracture strength of materials used in chemical equipment and energy storage devices in high-temperature media to meet industrial safety requirements;
5. Materials Research and Development: Screening high-temperature suitable materials, optimizing material formulations and processes, and providing long-term performance data support.
Standards
(1)ISO 16770: Exclusively designed for full-notch creep testing (FNCT) of thermoplastics under sustained stress.
(2)ASTM D2990: Configurable for tensile, compressive, and flexural creep testing of polymers and composites.
Features
1. Uncompromising Precision
Independent 6-Zone Control: Each station operates with ±1% force accuracy (0–2.000N) and ±0.1°C temperature stability.
Hybrid Loading System: Combines motorized force application with manual fine-tuning via touchscreen-guided weights.
2. Versatile Testing Environments
Dual Bath Compatibility: Switch between water (up to 95°C) and oil (up to 150°C) baths for high-temperature polymer analysis.
Expanded Force Capacity: Upgradeable to 4.000N max. load per station for heavy-duty applications.
3. Intelligent Monitoring
Auto-Level Sensing: Real-time solution height detection prevents test interruptions from evaporation or leaks.
Visual Alerts: Touchscreen displays color-coded status indicators for all stations.
4. Future-Ready Design
Modular Architecture: Add stations or upgrade controllers without replacing the entire system.
Multi-Language Interface: Operate in English, German, Chinese, or Spanish.
Technical Parameters
| Specification | Details |
|---|---|
| Stations | 6 fully independent test positions |
| Force Range (per station) | 0–2.000N (standard) / 0–4.000N (optional) |
| Temperature Control | Water: 40–95°C |
| Force Accuracy | ±1% FS (0.5% with calibration kit) |
| Power Supply | 220V/50Hz (110V/60Hz available) |
| Bath Capacity | 15L per station (90L total) |
| Dimensions (W×D×H) | 1.800mm × 750mm × 1.650mm |
| Weight | 380 kg (net) |
在线联系供应商
Other supplier products
 |
Nasal Oxygen Cannula Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk This device is used to test various performance characteristics of nasal cannulas,... |
 |

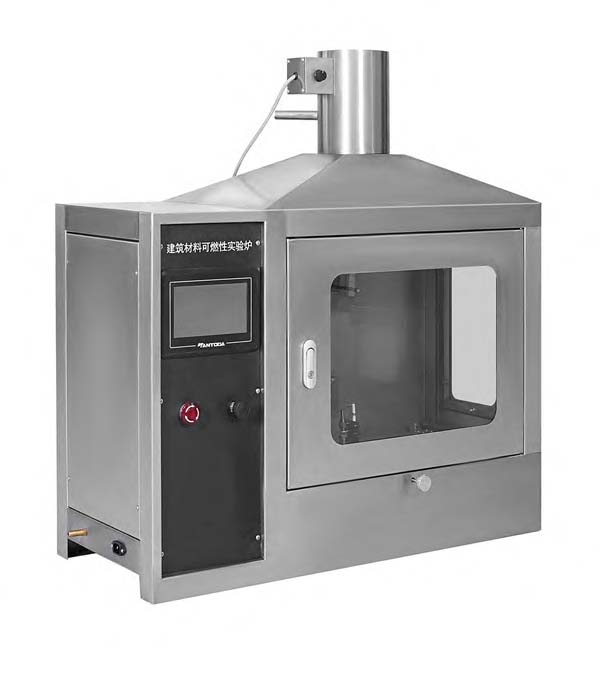

Building Material Flammability Test Furnace | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The touch screen-controlled building materials flammability test furnace, upgraded... |
 |
