Tibial Tray Fatigue Testing Machine
Standard
- YY/T 0810 (China): Specifies fatigue testing protocols for tibial trays in total knee arthroplasty, focusing on support and protection of plastic bearing surfaces.
- ASTM F1800 (International): Defines methodologies for evaluating the fatigue strength of tibial components under cantilever loading conditions.
- ISO 14879-1: Additional compliance for general fatigue testing of total knee joint prostheses.
Product Advantages
- Cantilever Loading Precision: Advanced actuator design ensures uniform stress distribution per ASTM F1800 requirements.
- 5 Million Cycle Endurance: Proven capability to complete YY/T 0810’s 5×10⁶-cycle fatigue test without calibration drift.
- Dynamic Load Control: Closed-loop system maintains R=0.1 stress ratio during sinusoidal/random loading (0.1–10 Hz).
- Real-Time Fracture Detection: AI-powered acoustic emission monitoring identifies micro-cracks at sub-millisecond intervals.
- Intuitive Workflow: 21.5” capacitive touchscreen with gesture control and pre-loaded SOPs for 10+ implant geometries.
- Modular Environmental Chambers: Quick-swap pods for simulated physiological (-20°C to +50°C) and corrosive environment testing.
Product Features
- Electromagnetic Actuator: 3,000 N peak force capacity with programmable load ratios (R=0.1–10).
- Cantilever Loading System: Simulates physiological knee joint moments with ±20 mm axial displacement.
- Dynamic Load Control: 0.1–10 Hz frequency range with programmable waveforms (sine, square, random, custom).
- Thermal-Mechanical Chamber: ±0.3°C temperature stability with integrated humidity control (10–95% RH).
- High-Speed Imaging Ready: Syncs with external cameras for full-field strain mapping (DIC optional upgrade).
- Safety First: Triple-redundant emergency stop, overload clutches, and laser-based specimen breakage detection.
Technical Parameters
| Parameter | Specification |
|---|---|
| Max. Dynamic Force | ±3,000 N (6,000 N peak optional) |
| Frequency Range | 0.1–10 Hz (0.01 Hz increments) |
| Load Ratio (R) | 0.1–10 (adjustable) |
| Axial Displacement | ±20 mm (0.1 μm resolution) |
| Torque Capacity | ±20 Nm (0.01 Nm resolution) |
| Temperature Range | -20°C to +50°C (environmental chamber) |
| Humidity Control | 10–95% RH (non-condensing) |
| Data Sampling Rate | 100 kHz (synchronized across 16 channels) |
| Power Requirements | 220V/110V ±10%, 50/60Hz, 2,000W |
| Dimensions (W×D×H) | 1,500 × 1,000 × 2,000 mm |
| Weight | 750 kg (including environmental chamber) |
| Noise Level | <65 dB (A-weighted) |
Accessories
- Tibial Tray Test Fixture Kit:
- Self-centering collet system (28–40 mm tibial tray compatibility)
- Laser-aligned loading anvils with diamond-like carbon (DLC) coating
- Thermal-Mechanical Chamber:
- 15L capacity with rapid cooling/heating (15°C/min)
- 316L stainless steel interior with HEPA filtration
- TestMaster Ultimate Software:
- Automated S-N curve generation and fatigue limit calculation
- 21 CFR Part 11-compliant audit trail with blockchain timestamping
- Remote monitoring via dedicated iOS/Android app
- Operator Kit:
- Calibrated torque wrench set (0.5–50 Nm)
- Specimen alignment gauges (ASTM F1800 compliant)
- Calibration Bundle:
- NIST-traceable force calibration weights
- Temperature/humidity verification probe
- Safety Kit:
- Laser safety curtains
- Acoustic enclosure with 30 dB noise reduction
在线联系供应商
Other supplier products
 |
Filter Flow Resistance Tester | Meet the standard: ISO 3968 SAE J806 Product Introduction: The Filter Flow Resistance Tester operates by circulating a test fluid (such as hy... |
 |

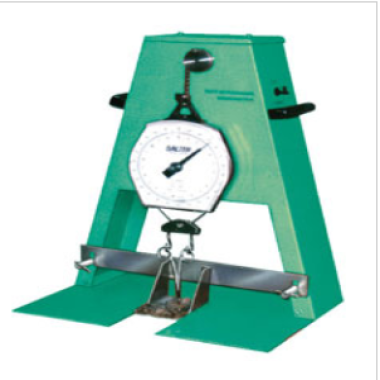

Carpet Tuft Extraction Tension Tester | Product Details For tufted carpets or traditional carpets, an important parameter is the retention performance of their tufts. Poor - quality car... |
 |
