True Body Weight Ingress Egress Tester

Get a quote:

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

Email:serving@qinsun-lab。com

The True Body Weight Ingress/Egress Tester is a specialized machine designed to evaluate either a complete automotive seating system or individual seat components. It provides realistic simulation of human ingress and egress movements, including dynamic interaction with seat cushions, upholstery, and the underlying mechanical structure. The tester can even assess the wear and durability of the occupant’s clothing during repeated use.

Applicable Standards

SAE J826-2002 – Anthropomorphic Test Devices for Vehicle Seating Systems

QC/T 740-2017 – Automotive Seat Fatigue Test Standard

Industry standards for automotive seat ingress and egress durability

Technical Parameters

ParameterSpecificationNotes
Dummy Model 3D indenter, 50% SAE J826-2002 Wrapped with 12mm foam and denim
Pressure Head Weight 44.5 kg Adjustable for different test scenarios
Horizontal Slide ~25 mm into cushion Inner rear first with 30° rotation
Load on Pressure Head 445 N Maintained during creep and exit cycles
Rotation Angle 30° Simulates realistic entry angle
Experimental Frequency 4.5 cycles/min Adjustable
Number of Experiments 15,000 simulated ingress/egress cycles

在线联系供应商

至: Standard Groups
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

 Benchtop Thermal Conductivity Tester (Heat Flow Method)
Benchtop Thermal Conductivity Tester (Heat Flow Method) Get a quote: Web: qinsun-lab.com Email:serving@qinsun-lab。com The Benchtop Thermal Conductivity Tester is primarily used for thermal performance...
Reciprocating Friction and Wear Tester
Reciprocating Friction and Wear Tester Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The machine operates by applying a specified normal contact load while the specime...
Ford Automotive wire flexibility testing machine
Ford Automotive wire flexibility testing machine Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Versatile Angle Adjustment: Swings up to 180° bi-directionally or any user-def...

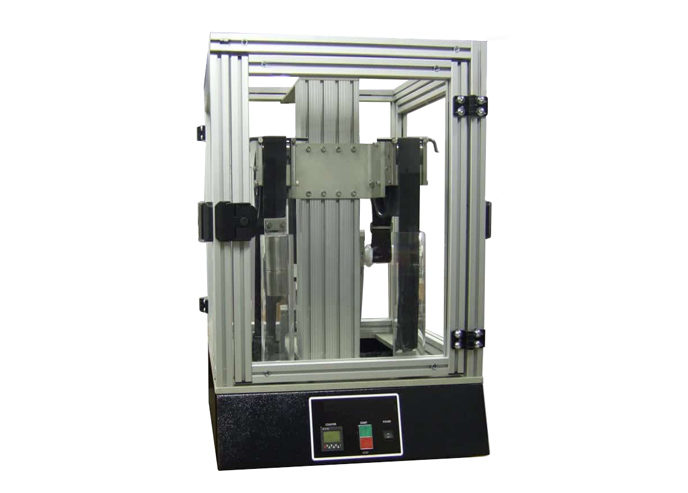

2-Station Seatbelt Webbing Abrasion Tester
