Steel wheel wear testing machine ISO/DIS10545/6
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The cycloidal pinwheel reducer has the advantages of large reduction ratio, compact structure, smooth transmission and adjustable abrasive flow rate, which can effectively save the amount of abrasive. The testing machine through the gear drive deceleration to steel wheel speed 75r/min, gear drive compared with the belt drive deceleration, smooth, no skid phenomenon, steel wheel rotation by the time relay control, the motor to the predetermined time is also transferred to the test requirements of the speed
The motor stops automatically. The testing machine has the characteristics of reasonable design, simple structure, beautiful appearance, easy operation, smooth rotation, automatic shutdown to meet the test requirements, etc., which is mainly suitable for wear resistance test of cement bricks.
Application
The steel wheel wear testing machine is widely used in materials science and engineering to evaluate the wear characteristics of various materials. It simulates the wear process of materials in actual use by applying friction from a steel wheel under fixed testing conditions. This method effectively simulates the actual performance of materials under friction and wear conditions.
Standard:
GB/T3810.7-2016:Test methods of ceramic tiles—Part 7: Determination of resistance to surface abrasion for glazed tiles
ISO/DIS10545/6-94:Ceramic tiles - Determination of resistance to deep abrasion for unglazed tiles (ISO/DIS 10545-6:1994)
GB/T12988-1009:Test method for abrasion resistance of inorganic paving materials
EN 932-5:Tests for general properties of aggregates - Common equipment and calibration
ISO3310-2:Test sieves - Technical requirements and testing - Part 2: Test sieves of perforated metal plate
ASTM E11:Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves
BS 410-1:Test sieves - Part 1: Wire cloth test sieves
BS 410-2:Test sieves - Part 2: Perforated metal plate test sieves
Parameters:
| Description | Details |
|---|---|
| Grinding wheel 1 - Diameter | 200 ± 0.2mm |
| Grinding wheel 1 - Thickness | 10 ± 0.1mm |
| Grinding wheel 2 - Diameter | 200 ± 0.2mm |
| Grinding wheel 2 - Thickness | 70 ± 0.1mm |
| Grinding wheel 2 - Hardness | HB203 - 245 |
| Grinding wheel speed | 75 ± 4r/min (constant) |
| Sample size | 100mm x 110mm |
| Abrasive - Size | ISO8486 - 1986 F80 white fused alumina |
| Abrasive feed speed | (100 ± 10)g/100r (adjustable flow rate) |
| Hopper volume | Greater than 5L |
| Test time | Preset, digital display |
| Weight 1 (for GB/T3810.7 - 2006) | 2.5kg |
| Weight 2 (for GB/T12988 - 91) | 14kg (assuming "14k" is a typo and should be "14kg") |
| Overall dimensions | 6000 x 580 x 130mm |
| Estimated Total Weight | About 150kg |
在线联系供应商
Other supplier products
 |
Textile material feel style evaluation instrument | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Textile Material Feel Style Evaluator is a precision instrument designed to ob... |
 |
Fabric ici pilling and snagging box | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Applications A universal pilling and snagging tester drives system to rapidly rep... |
 |

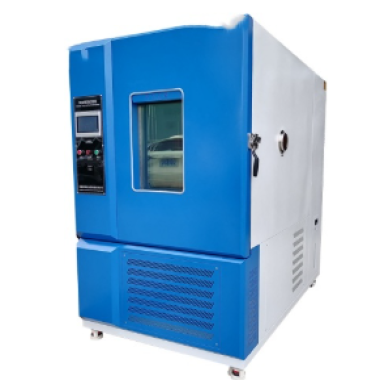

Textile moisture absorption and heat generation performance tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Textile Moisture Absorption and Heat Generation Performance Tester is a profes... |
 |
Photovoltaic module insulation resistance tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Photovoltaic Module Insulation Resistance Tester is a precision instrument des... |
 |

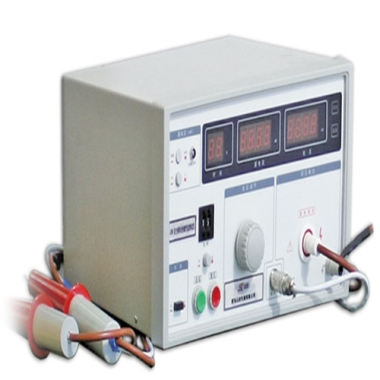

Safety Helmet Electrical Insulation Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Safety Helmet Electrical Insulation Tester is designed to assess the electrica... |
