Scorch Tester/Sublimation fastness tester ISO 105 P01 ISO 105 X11

Standards:

GB/T 5718.GB/T 6152.JIS L0879.JIS L0850.ISO 105 P01.ISO 105 X11.AATCC 117.AATCC 133. AATCC 92(G247)，AATCC 114(G247)，M&S C13(G247B)，M&S C10(G247B)

Applications:

Sublimation Fastness Testeris suitable for color fastness to hot pressing and dry heat test method test device fastness test method of resistance to dry heat color, fabric can be tested for color fastness, chlorine damage (resin finishing fabrics), cloth bleaching pan yellow test, disperse dyes sublimation color fastness test, reactive dye fastness test.

Product Information:

In the daily process of shaping and high temperature ironing, dyes heat stability will affect the appearance of fabrics.. Dyes heating , heat transfer properties will cause the change of fabric color.

Sublimation fastness tester (large) is used to determine the hot pressing ironing and dry heat (sublimation) color fastness properties for all kinds of dyed printing material and fabrics, it also can be used for determination the resistance to chlorine damage, textile bleaching products, scorch yellowing test, disperse dye sublimation fastness test, dye fastness test, high temperature dimensional stability. It is commonly used in printing and dyeing fabrics, textile auxiliaries clothing industry.

Features

★ Single work station easy for operation, high cost performance, Multi work station type can raise the efficiency and also meet M&S standard.

★ Upper and lower heat board control temperature separately , accurate temperature control, timing alert, control testing time exactly.

★ Heating board distance is adjustable, suitable for specimen of different thickness, High efficient insulation material ensures the safety operation.

Technical Parameters

Model	G247	G247B
Heating board area	100mm╳40mm	210mm×210mm
Heating board material	Aluminum plate	Aluminum plate
Heating time	Custom	Custom
Pressure	4kPa±1 kPa	4kPa±1 kPa（Full area）
Temperature control	Upper and lower heating independently	Upper and lower heating independently
Temperature heating range	Room temp.-300℃	Room temp.-300℃
Temperature control stability	±1℃	±1℃
Temperature uniformity	±1℃	±1℃
Timer	Preset, Auto timing when upper board press down.	Preset, Auto timing when upper board press down.
Alarm	Buzz	Buzz
Test Application	Hot press, dry heat, chlorine damage	Hot press, dry heat, dimension stability
Power	220V，50Hz	220V，50Hz
Size	W250mm×D300mm×H230mm	W345mm×D520mm×H320mm
Weight	9kg	12kg

GB/T 6152-1997 Tests for colour fastness–Colour fastness to hot pressing ( Sublimation Test Standard)

1、Sublimation fastness definition:

Sublimation fastness is to determine the color of various types of clothing materials, the ability of high temperature resistance and the color retardant of the clothing material under heat pressure or heat drum process.

2、Methodology:

①、Dry pressing: The dry specimen is subjected to a certain time in the pressure device with the specified temperature and the specified pressure. The Gray sample card is used to evaluate the color of the specimen after testing.

②、Tidal pressing: With a wet cotton-lined fabric covered, The dry specimen is subjected to a certain time in the pressure device with the specified temperature and the specified pressure. After the test, the gray sample card was used to evaluate the discoloration of the specimen and the stained color of the lining fabric.

③、Wet pressing: With a wet cotton-lined fabric covered, The wet specimen is subjected to a certain time in the pressure device with the specified temperature and the specified pressure. After the test, the gray sample card was used to evaluate the discoloration of the specimen and the stained color of the lining fabric.

3、Sublimation fastness testing procedure

Sample preparation:

The sample size is 40mm×100mm. The size of the accompanying fabric is the same as the sample. The specimen should be put in the standard atmosphere, which is humidity (65±2)% and temperature (20±2)℃.

4、Test procedure

Turn on the power.

Switch the button to ironing or sublimation. The lamp of ironing or the lamp of sublimation flashes which mean the heater starts heating.

Set the test temperature.The pressure of the temperature depends on the type of the fiber, the material of clothing or the structure of the clothing. For instance, the recommended temperature of the blended fiber should be compatible with the least heat resistant fiber

Set time in accordance to the test requirement. Commonly, the specimen would be put under the pressure and specified temperature for 15s.

When the temperature reaches the test requirements, open the heating box and put into the sample. If it is dry pressing, the specimen, which does not need to be accompanied with the lining fabric, can be heated directly. If it is moisture pressing, the specimen and the lining fabric are soaked. Wheter the lower plate of the heating device is heated or not, it should always be covered with asbestos sheets, wool flannel and dry, dyed cotton.

Put down the heating plate, and make the sample under the pressure of 4kPa, and press the Start button immediately, when the timer began to slack. After 15s, lift the heating plate.

Take out the specimen and immediately use the corresponding Grey sample card to evaluate the color change of the specimen.

5、Results

To evaluate the discoloration of the specimen by gray sample card 250. and then put the specimen in the standard atmosphere. After 4h, make the evaluation again.

To evaluate the staining of the lining fabric by gray sample card 251. To use the heavier staining side of the cotton-lined fabrics to evaluate.

Other supplier products

	Adiabatic Rate Calorimeter	Product Description Battery Isothermal Calorimeter is a professional instrument developed based on the principle of power compensation isothermal ...

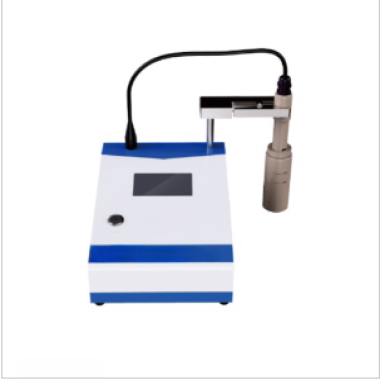

	Battery Slurry Resistance Tester	Standard ASTM B193: Standard Test Method for Resistivity of Electrical Conductor Materials ISO 18516: Conductive Coatings – Measurement of ...
	Photovoltaic module insulation resistance tester/ Solar panel insulation tester/IEC 61215 insulation resistance testing	Standard IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 61730: Safety Standard for Photovol...
	Leakage negative pressure tester for infusion device	Leakage negative pressure tester for infusion device - Other test instrument - standard Product Information: The leakage negative pressure tester...

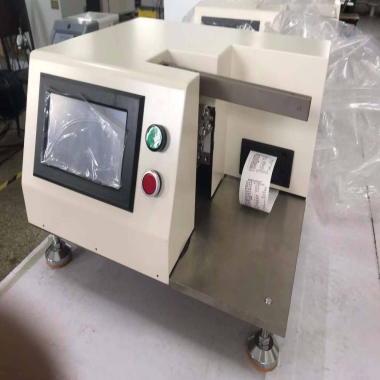

	Plastic Friction and Wear Tester	Product Description: Plastic sliding friction wear tester consists of two main parts: the host machine and intelligent control system, which can b...
