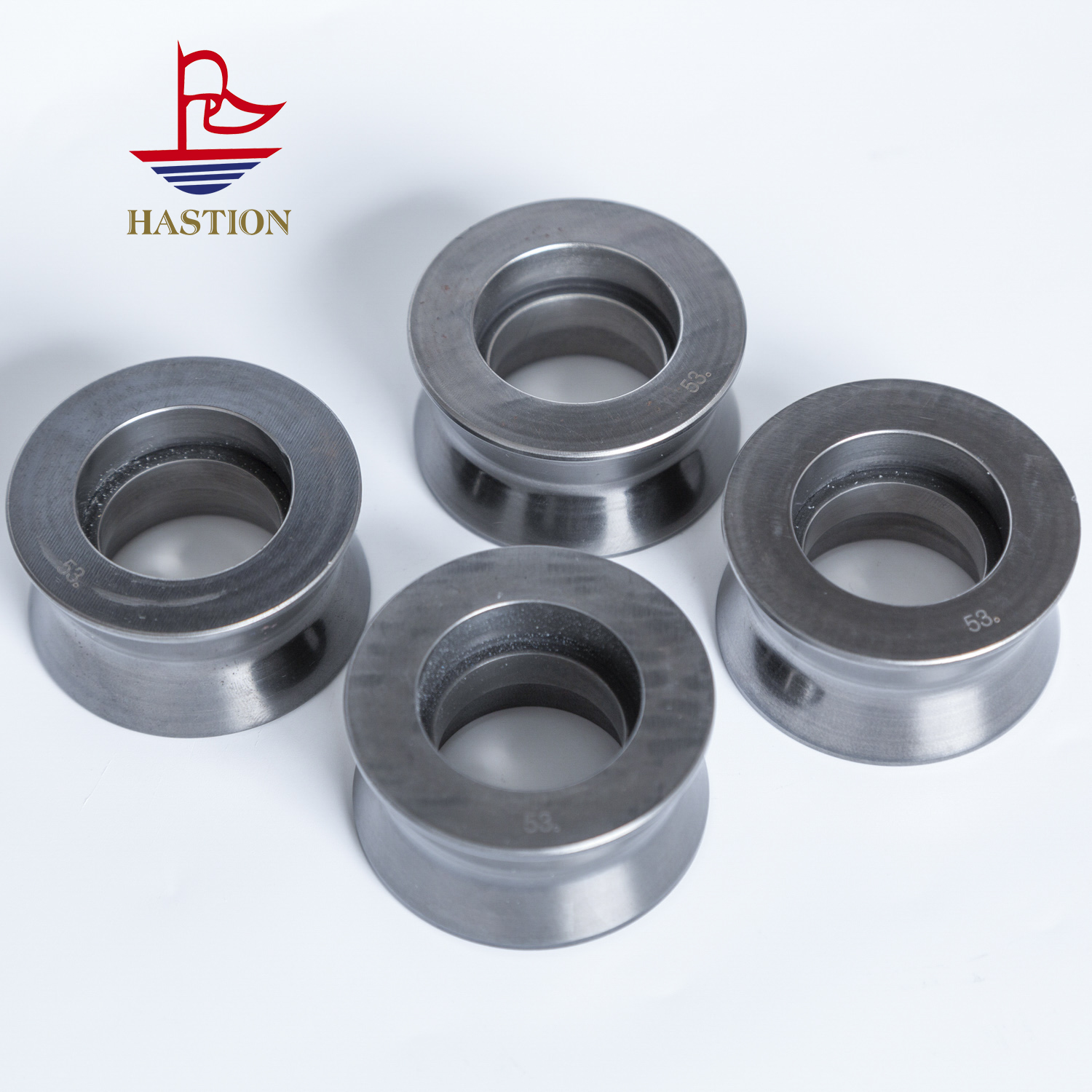

Excellent acid and alkali resistance guide wheel
Titanium Carbide Guide Wheel is a special industrial component made of Titanium Carbide (TiC), which has a silvery metallic appearance and a smooth, dense surface. With the ultra-high hardness of titanium carbide (about 2800HV) and excellent abrasion resistance, it can effectively resist the abrasion caused by contact friction with the drive belt and wire under high load and high speed working conditions, which greatly extends the service life. At the same time, it has excellent high temperature resistance, can operate stably in 800-1000 ℃ high temperature environment, and is not easy to affect the accuracy due to thermal deformation, so as to ensure the stability of operation.
Titanium carbide guide wheel has strong chemical stability, in acid and alkali and other corrosive media can still maintain structural integrity, suitable for chemical industry, metallurgy and other highly corrosive environments. Its high strength and low coefficient of friction characteristics, so that the guide wheel in high-speed operation to maintain low energy consumption, low noise, and effectively reduce system losses. These guide wheels are widely used in wire drawing equipment, textile machinery, semiconductor manufacturing and other fields, such as for precision wire traction, film transmission guidance, etc., to ensure that the material conveying process of uniform tension, accurate positioning, significantly improve production efficiency and product quality.
