Portable Gate Valve Grinder for Dn200-600mm.
Manufacturer of Valve grinder from China ,Metals Kingdom Industry Limted

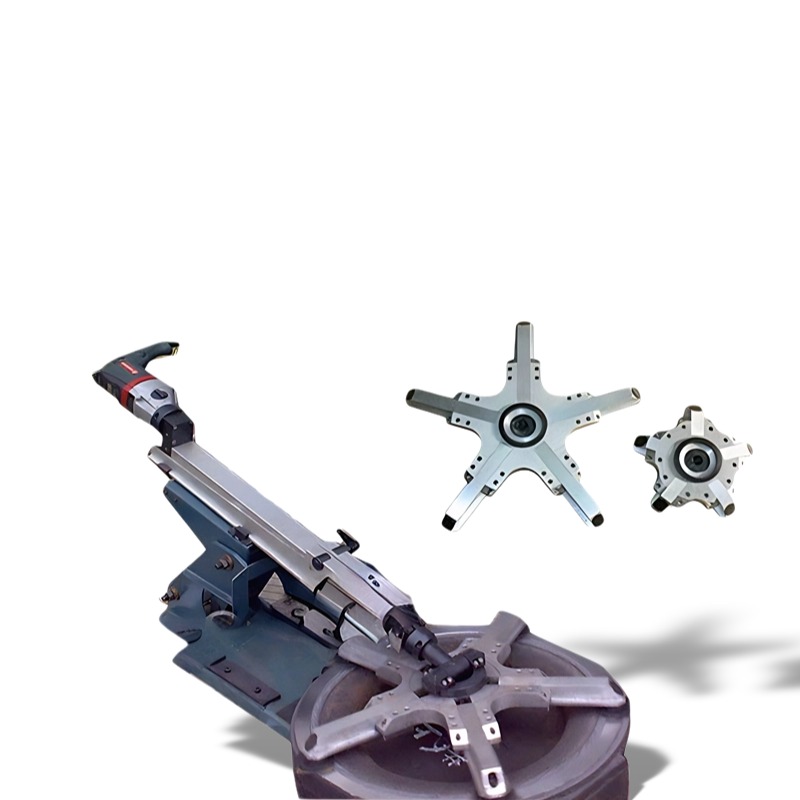

M-600 Portable Valve Grinding Machine
1.Characrer:
M-600 portable valve grinding machines with high efficiency, being easy to carry and being easy to operate, can repair the valve sealing surface in the pipeline scene. Applicable to the grinding of gate valve ,globe valve, disc wedge,is High-tech national patent products.
2.M-600 Portable Valve Grinding MachineTechnical Parameter
a) Grinding diameter: Dia 200-600mm
b) The electrical power: 1300 W
c) the greatest adjustment depth: 900 mm
d)Input voltage: 220 V
e) Operating weight: 80 kg
f)The smallest broaching size: B = 70mm

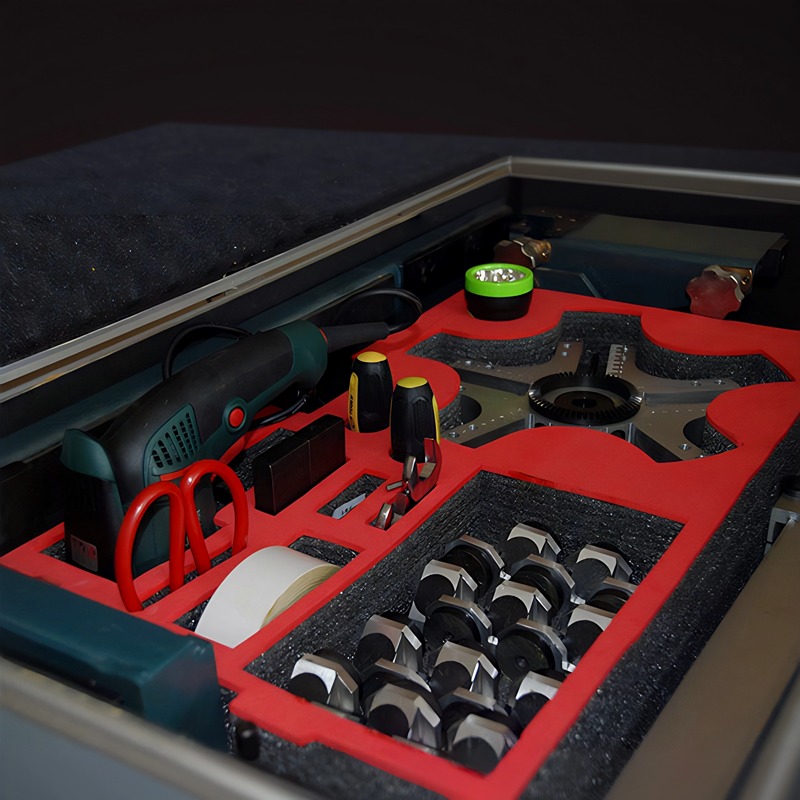

M-600 Valve Grinder Packing lists
| Items | Name | quantity | remark |
| 1 | Big base(with V shaped backup plate) | 1 | |
| 2 | Small base(with handle) | 1 | |
| 3 | Adjustalbe supporing | 1 | |
| 4 | Electric motor(with Connector) | 1 | German Metabo |
| 5 | transfer components | 1 | |
| 6 | small grindingdisc components | 1 | |
| 7 | big grinding disc components | 1 | |
| 8 | NO.1 grinding claws | 5 | 85mm |
| 9 | No.2 grinding claws | 5 | 108mm |
| 10 | No.3 grinding claws | 5 | 203mm |
| 11 | Clamping piece | 1 | |
| 12 | drive part for fixed grinding disc | 1 | |
| 13 | Emery sheets 60,80,120 |
50 | |
| 14 | (60#,80#,120#) American Norton grinding emery paper |
Each three | |
| 15 | (80#,120#,320#)Korea grinding emery paper r | Each three | |
| 16 | Double sticky tape,flashlight,scissor, folding ruler |
Each one | |
| 17 | (17-19,19-22)solid wrench | Each one | |
| 18 | 6mm,5mm,4mm wrench | Each one | |
| 19 | (+,-)screwdriver | Each one | |
| 20 | M8×25 bolt | 6 | |
| 21 | M8×20bolt | 3 | |
| 22 | M8×70 8.8 sbolt | 4 | |
| 23 | operating instruction manual | 1 | |
| 24 | certificate of approval | 1 | |
| 25 | warranty card | 1 | |
| abrasive paper | 50 PCS | free |
M-600 Valve GrinderFixed Grinding Discs Packing list
| Item | Name | Quantity | Note |
| 1 | Size 1 fixed grinding disc | 1 | Φ220 |
| 2 | Sizee 2 fixed grinding disc | 1 | Φ240 |
| 3 | Size 3 fixed grinding disc | 1 | Φ300 |
| 4 | Size 4 fixed grinding disc | 1 | Φ350 |
| 5 | GB70-85 M8×18) | 2 | |
| 6 | GB70-85 M6×12 | 12 |
