DN50-1200mm Portable Gate Valve Grinding&Lapping Machine
Manufacturer of Valve Grinding& LAPPING MACHINE for gate valve,globe valve,safety valves from China ,Metals Kingdom Industry Limted
Portable Valve Grinding Machine for grinding gate valve
Features:

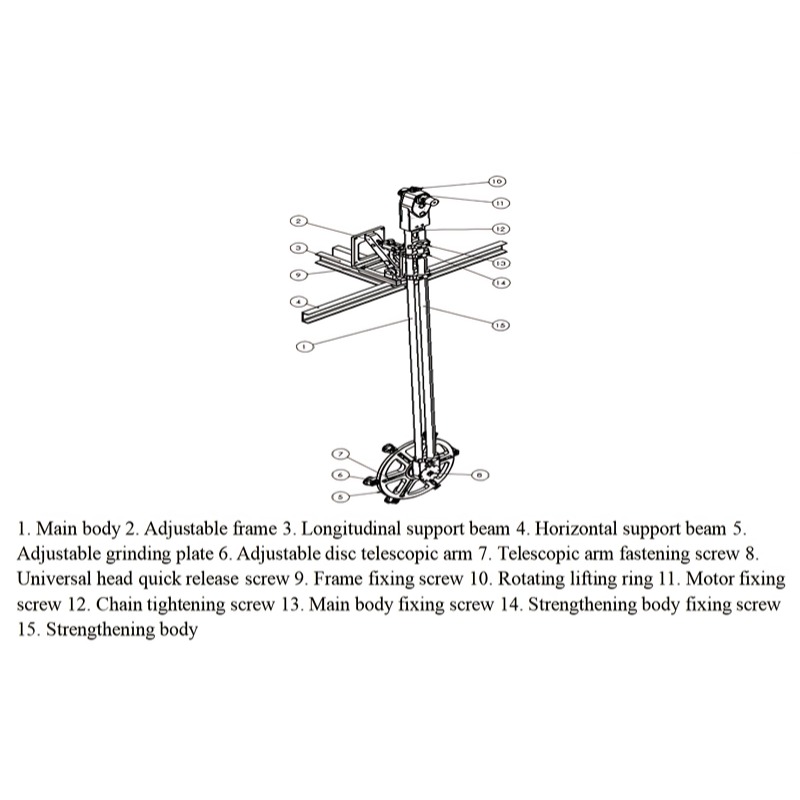

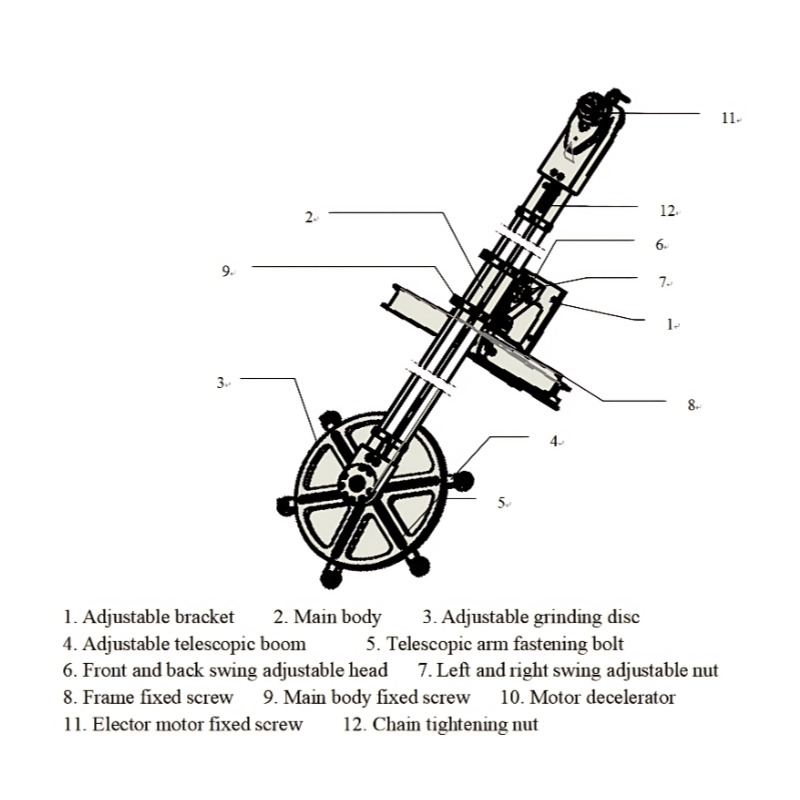

*Split-type assembly makes installation easy and fast
*High-strength aluminum alloy grinding disc. This material with high strength, light weight and hard to deformation
*Standard configure: Germany Metabo Motor and world famous bearing
*Grinding Paper, cheap and easy to replace
*Grinding speedy, good quality, grinding efficiency is 10-30 times by manual grinding
*Aluminum-plastic case packing, light, compact, and easy to carry
Application: Portable Gate Valve Grinding Machine
*Could grinding Gate Valve seat and valve core.
MZ-1200 valve grinder can be choosed in hydraulic drive.
| Item | Models | |||
| MZ-150 | MZ-250 | MZ-900 | MZ-1200 | |
| Grinding Range(mm) | DN 50-150mm | DN90-250mm | DN400-900mm | DN600-1200mm |
| (2"-6") | (3.6"-10") | (16"-36") | (24"-48") | |
| Gate valve | Gate valve | Gate valve | Gate valve | |
| seat&disc | seat&disc | seat&disc | seat&disc | |
| Voltage(V) | 220 | 220 | 220 | 220 |
| Power(W) | 1300 | 1300 | 1150 | 1150 |
| Germany Metabo | Germany Metabo | Gemany | Gemany | |
| Frequency(HZ) | 50 | 50 | 50 | 50 |
| Max Grinding Depth(mm) | 420 | 600 | 1500 | 2400 |
| Valve sealing face min gap(mm) | 38 | 45 | 160 | 180 |
| Gross Weight(kg) | 38 | 50 | 270 |
350 |
