Steel Pipe
Steel pipes can be used to transport fluids and powdered solids, exchange heat, and make mechanical parts and containers. It is also an economical type of steel. The steel pipe is used to make the frame, strut and mechanical support of the building structure, which can reduce the weight and save the metal, and realize the factory mechanization construction. Making a highway bridge with steel pipes not only can save steel, simplify construction, but also can greatly reduce the area of coating protection, saving investment and maintenance costs.
Tianchuang has different types of industrial steel pipe for sale, we can supply different types of steel pipes for different applications.
Steel Pipe by Technology
Tianchuang pipes use the following technologies: Hot-dip galvanizing(The molten metal reacts with the iron matrix to form the alloy layer); Galvanizing(Steel interacts with zinc to form a zinc-ferroalloy on the surface of the pipe).
Galvanizing is a technology of rust protection. The steel and zinc are will interact and become Zn-Fe alloy on the pipe surface. The layer of alloy can provide protection from outside oxidation and extend the pipe use life. The service life of galvanized pipe can be 20-30 years in the outdoor environment.
ERWblack pipe-pickling-washing-drying-galvanizing-passivation-washing-inspecting-airing-packing-storage or dispatch.
The thickness of zinc coating is 300g/m2 or as customer's request.
Pipe end: plain, groove, threaded with plastic caps or sockets.
Package: Bundled in hexagon, PVC package outside and slings on both sides.
OD of ERW and galvanized steel pipe is from 3/4”-8”(21.3mm-219mm)
OD Tolerance: as to BS1387
Thickness: 1.8mm-6.0mm, +/-5% tolerance.
Length: 6m, or as buyers request, -0mm/+20mm tolerance.
ERW means electric resistance welding, and it is a resistance welding by 10-500 kHz of high-frequency current.
Material: The raw material of the ERW pipe is a hot rolled steel coil which is made of steel billet, and the usual material is Q195, Q215, Q235, Q355 in China steel grade, which are the same material with S195, S235, S355 in Europe, and SS400 in Japan.
The steel coil firstly will be cut into strip, the strip width is according to the perimeter of the pipe, and then shaped by mold, welding, cutting, straightening, inspecting, end smoothing, packing, and final storage or dispatch.
Application: The pipes are used widely in construction and infrastructure, such as scaffolding, water and gas delivery, fire control system, oil and heat delivery, and other low-pressure liquid delivery.
The normal length is 6m, and it also can be a flexible length decided by buyers.
We can produce ERW pipe according to GB/T3091-2015, JIS/G3444, EN10255, ASTM A500, ASTM A795, BS1387, EN39 and other standards. The pipe end can be a plain end, treaded with sockets, grooving end according to the above standards.
Steel Pipe by Standard
Our pipes meet various industry standards: BS 1387, EN 10255, ASTM A500, ASTM A795, ASTM A53 and JIS/G3444, please click detail pages of steel pipes to know more!
Steel Pipe by Material
For different countries, we can provide different materials,such as Q195, Q215, Q235, Q355 for China, same material with S195, S235, S355 for Europe, and SS400 for Japan.
Steel Pipe by Application
Our pipes are used widely in construction and infrastructure, follow products are our main products which can be applied in water, scaffolding, Fire control systems and so on.
As one of the mostprofessional steel guardrail manufacturers, we providesteel pipe products,standard steel pipe, industrial steel pipe, steel pipe production, highway guardrail for saleand etc. Contact usto know industrial pipe sizesor industrial pipe cost? Contact us.
Send product request
Other supplier products
 |
Nuts | Nuts are fasteners with internal threads and are used with the conjunction of a screw and nut set. As a type of metric nuts, hex nuts are widely us... |
 |
Highway Guardrail | The wave guardrail is composed of two corrugated steel highway guardrail plates and two vertical columns sandwiched between the two. The two-column... |
 |
HDG Galvanized Steel Pipe For Sale | Hot-dip galvanizing has the advantages of uniform coating, strong adhesion, and long service life. The dense zinc-iron alloy layer of the HDG pi... |
 |
S235JR steel pipe | What is Grade S235JR Structural Steel? Structural steel is a standard building material made from specific grades of steel and molded to a series ... |
 |
Low Pressure Liquid Delivery Pipe | Executive standard: GB/T 28897-2012 "Steel-plastic composite pipe" Scope of application: transporting drinking water, cold water, fire water, dr... |
Same products
 |

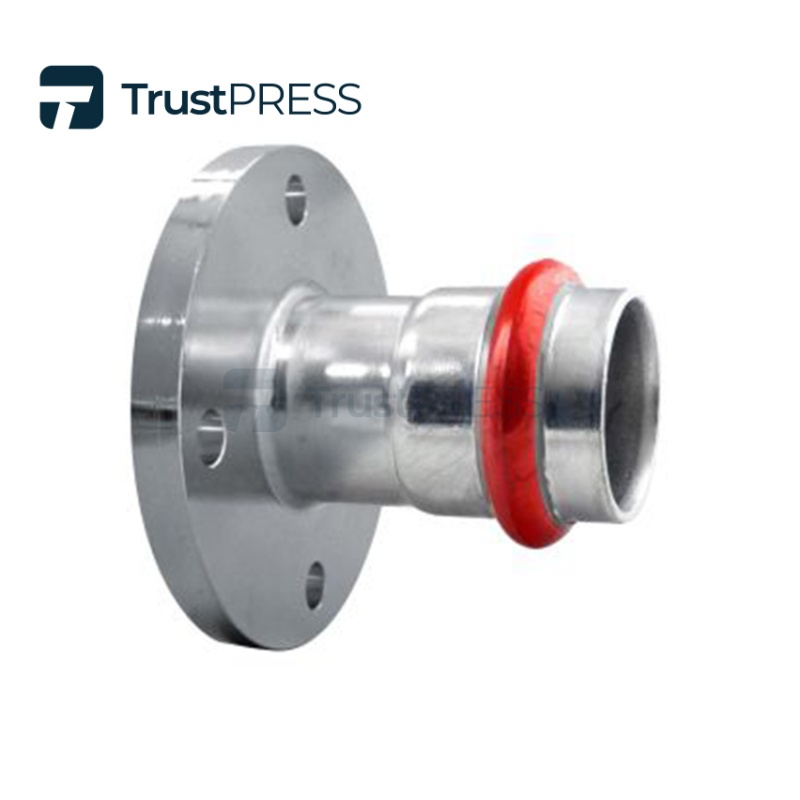

Stainless Steel Flange V Profile | Seller: Hangzhou Kash Technology Co., Ltd | Our Stainless Steel Flange V Profileis engineered for precision and durability, making it an idea... |
 |

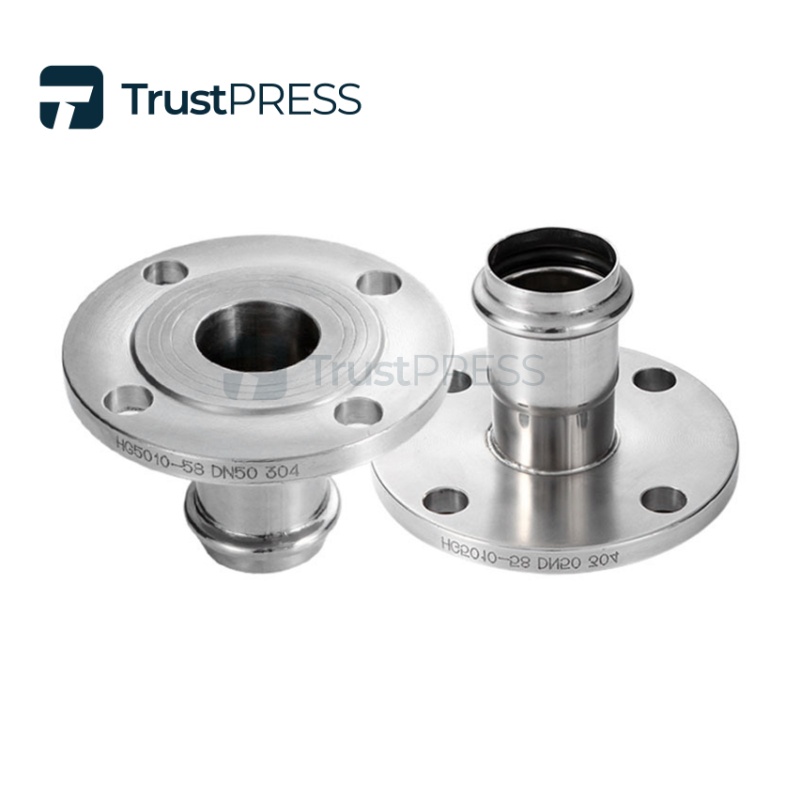

Stainless Steel Pipe Bridge with Plain End | Seller: Hangzhou Kash Technology Co., Ltd | Stainless Steel Pipe Bridge with Plain Endis, as its name implies, a stainless steel pipe compone... |
 |

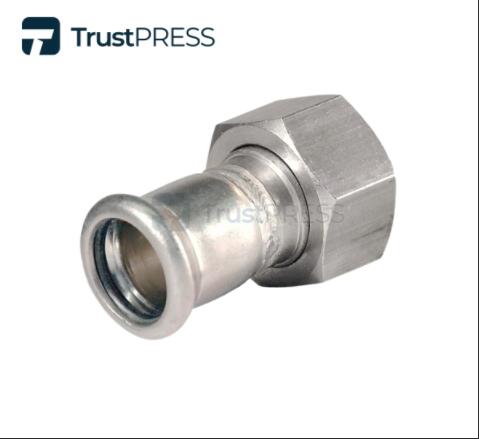

Stainless Steel Female Union M Profile | Seller: Hangzhou Kash Technology Co., Ltd | TrustPRESS®presents the Stainless Steel Female UnionM Profile, a high-quality, quick-connect ... |
 |

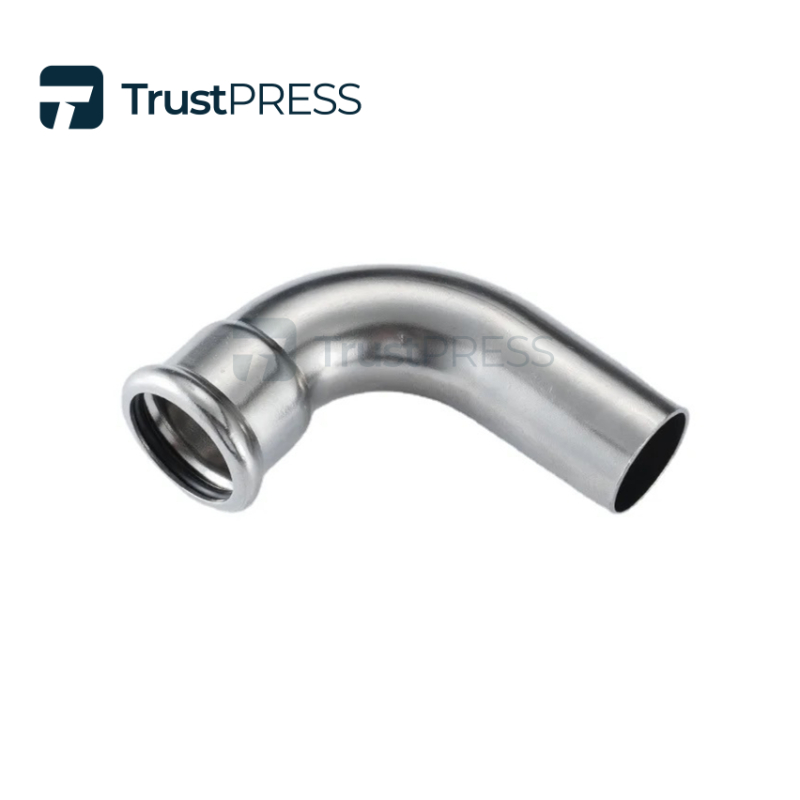

Stainless Steel 90°Elbow with Plain End M Profile | Seller: Hangzhou Kash Technology Co., Ltd | Stainless Steel 90° Elbow with Plain End M Profileis a pipe connector made of stainless steel... |
 |

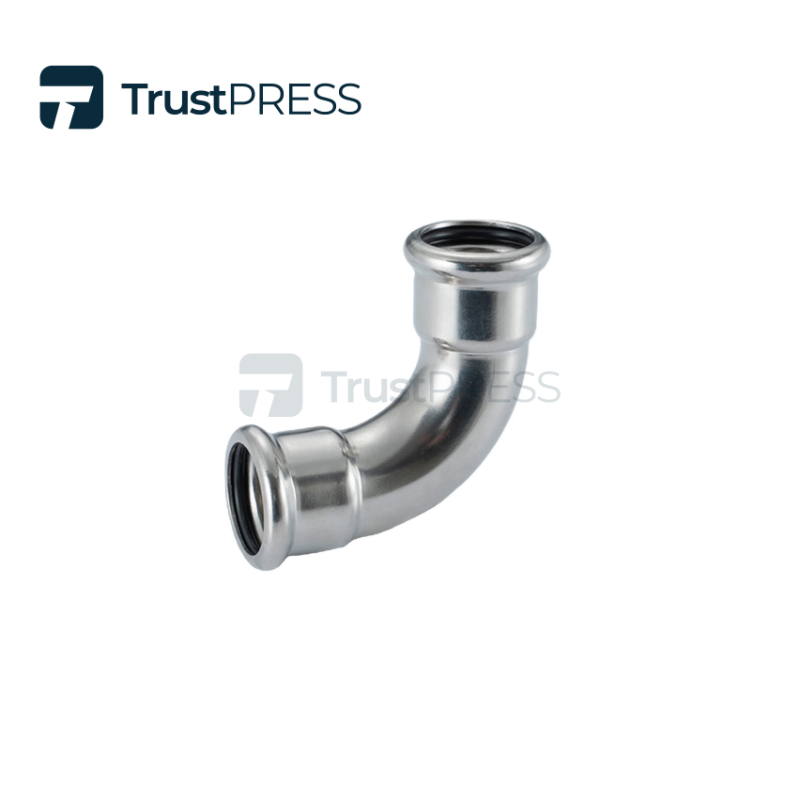

Stainless Steel 90°Elbow M Profile | Seller: Hangzhou Kash Technology Co., Ltd | TrustPRESS® Stainless Steel 90° Elbow M Profileis apress fittingmade of stainless steel w... |
