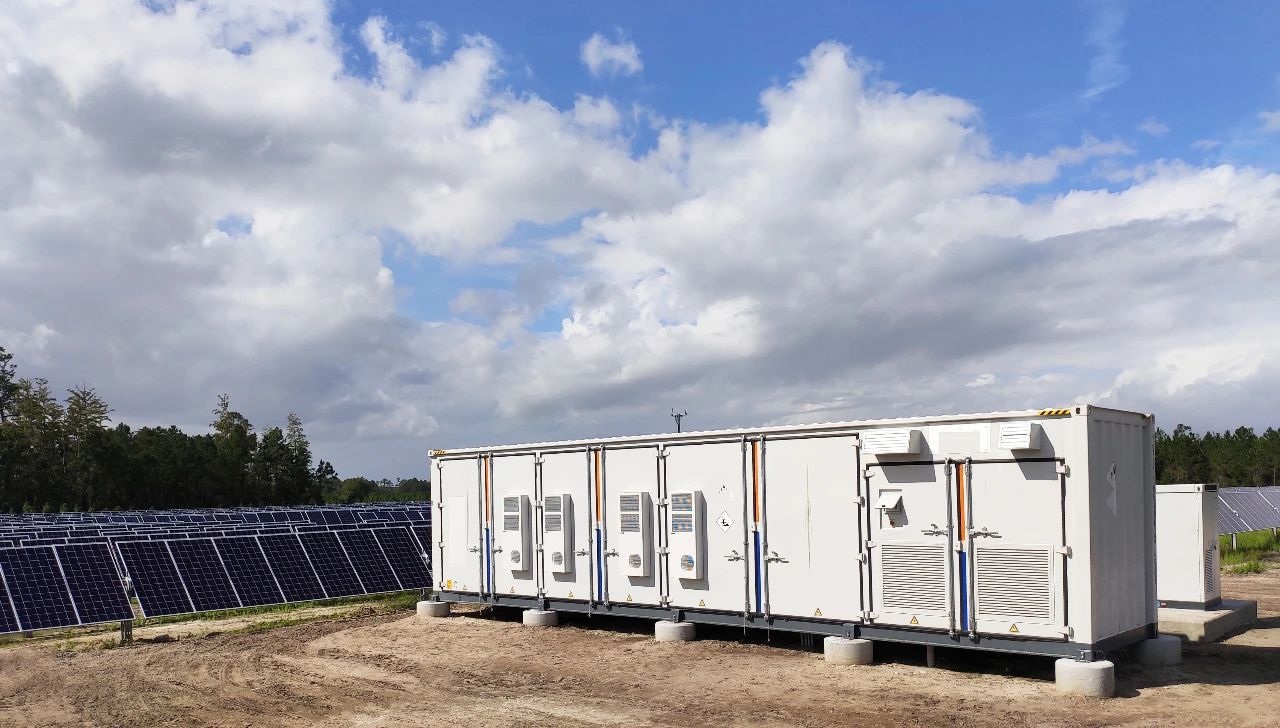

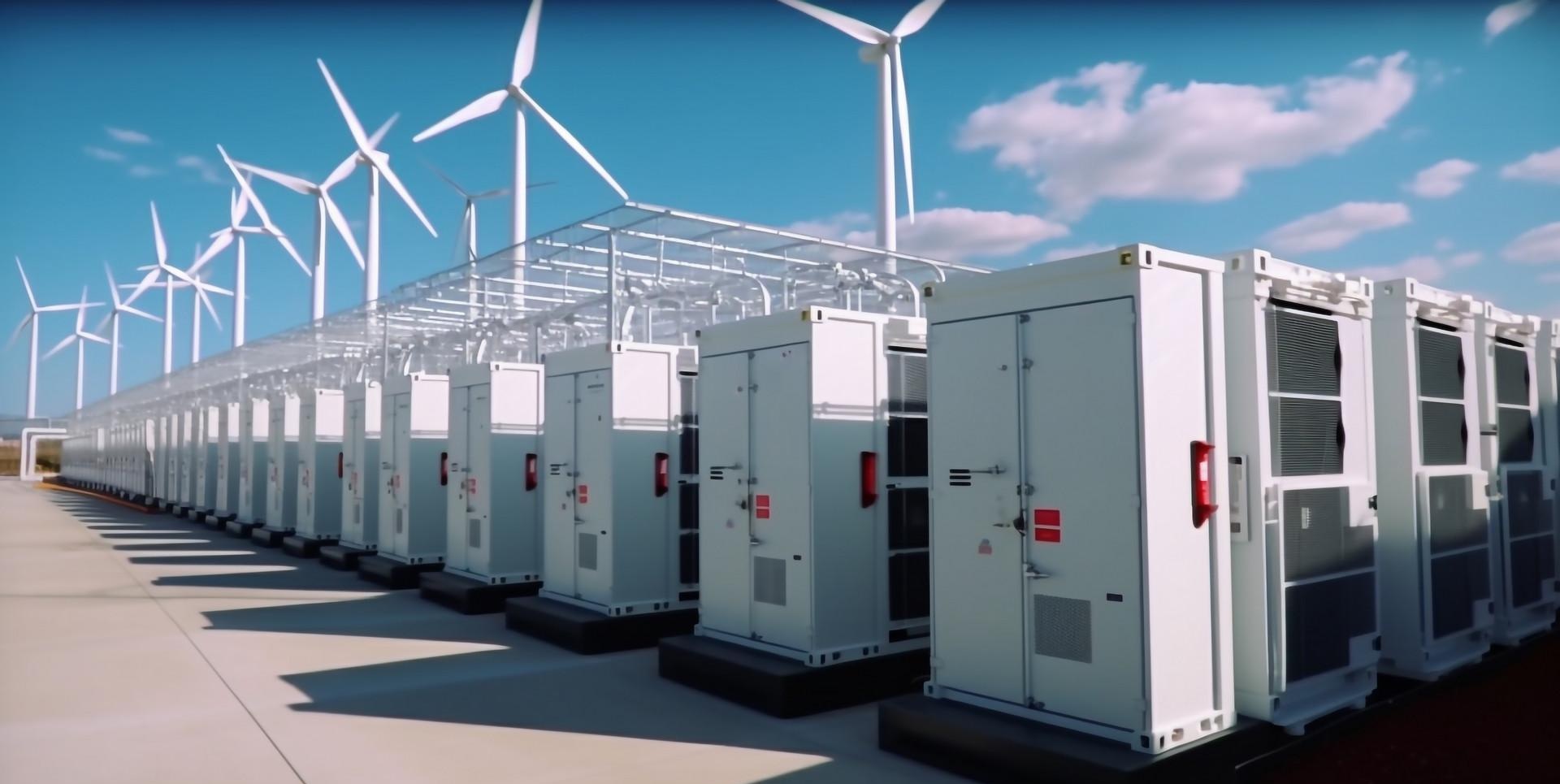

Commercial & Industrial All-in-one Hybrid Energy Storage Systems
PV&ESS, Generator and grid, 3-way power supplyIntelligent battery module temperature managementCell / Pack / Cluster / System level protectionSmart EMS and multi-scenario operation
C&I All-in-one Hybrid ESS
< 20ms
IP55
All-in-1 Hybrid
PV & ESS & Generator
UPS-level Switchover
Fast Installation
Modular Design
PV&ESS Highly
Integrated
CMB Energy supply Wind Turbines, Solar Panels, Bioelectric, Hydroelectrical products, Energy Storage System, and other renewable products, and We install the Wind Power Plant, Wind Energy Systems, Solar Farms, biomass power Plant, hydroelectricity power plants, Energy Storage System, and other solar projects.
|
System Model |
CE1000-E |
|||
|
Inverter Model N3-49.9K |
N3-50K |
|||
|
PV Input |
||||
|
Max. Recommended PV Power [Wp] |
75000 |
|||
|
Max. PV Input Voltage [V] |
1000 |
|||
|
MPPT Voltage Range [V] |
350 ~ 800 |
|||
|
Rated PV Input Voltage [V] |
667 |
|||
|
Start-up Voltage [V] |
350 |
|||
|
No. of MPP Trackers |
3 |
|||
|
No. of Input Strings per Tracker |
2 / 2 / 2 |
|||
|
Max. PV Input Current [A] |
36 / 36 / 36 |
|||
|
Max. Short-circuit Current [A] |
40 / 40 / 40 |
|||
|
AC Output |
||||
|
Max. AC Output Apparent Power [VA] |
54890 |
55000 |
||
|
Max. AC Output Active Power [W] |
49900 |
50000 |
||
|
Max. AC Output Current [A] |
79.6 |
80.0 |
||
|
Rated AC Output Current [A] |
72.4 |
72.5 |
||
|
Rated AC Output Voltage [V] |
3 / N / PE, 230 / 400 |
|||
|
Grid Frequency [Hz] |
50 / 60 |
|||
|
Adjustable Power Factor [cos φ] |
1 (0.9 leading ~ 0.9 lagging) |
|||
|
Output THDi (@Rated Output) |
< 3% |
|||
|
AC Input |
||||
|
Max. AC Input Apparent Power [VA] |
54890 |
55000 |
||
|
Max. AC Input Active Power [W] |
49900 |
50000 |
||
|
Max. AC Input Current [A] |
79.6 |
80.0 |
||
|
Rated AC Input Voltage [V] |
3 / N / PE, 230 / 400 |
|||
|
Grid Frequency [Hz] |
50 / 60 |
|||
|
Battery Model BS80-E |
BS90-E |
BS100-E |
||
|
Battery Technology |
LiFePO |
LiFePO |
LiFePO |
|
|
Nominal Capacity [Ah] |
204 (102 * 2) |
204 (102 * 2) |
204 (102 * 2) |
|
|
Battery Configuration |
16S2P * 8 |
16S2P * 9 |
16S2P * 10 |
|
|
Nominal Energy [kWh] |
83.6 |
94 |
104.4 |
|
|
Norminal Voltage [V] |
409.6 |
460.8 |
512 |
|
|
Voltage Range [V] |
358.4 ~ 467.2 |
403.2 ~ 525.6 |
448 ~ 584 |
|
|
Max. Continuous Charging / Discharging Current [A] |
102 / 102 |
102 / 102 |
102 / 102 |
|
|
Nominal Power [kW] |
41.8 |
47 |
52.2 |
|
|
Depth of Discharge |
95% |
95% |
95% |
|
|
System General Data |
||||
|
Dimensions (with Inverter) (W * H * D) [mm] |
1330 * 1950 * 1425 |
|||
|
Dimensions (without Inverter) (W * H * D) [mm] |
1000 * 1950 * 1425 |
|||
|
Weight (with Inverter) [kg] |
1227 |
1313.5 |
1400 |
|
|
Weight (without Inverter) [kg] |
1152 |
1238.5 |
1325 |
|
|
Ambient Temperature Range [ ] |
-20 ~ +55 |
|||
|
Relative Humidity |
0 ~ 95% |
|||
|
Operation Altitude [m] |
|
|||
|
Topology |
Transformerless |
|||
|
Cooling |
Air-conditioner |
|||
|
Fire Protection |
Aerosol |
|||
|
Communication |
CAN, RS485, USB Update, WiFi, 4G, Ethernet |
|||
|
Ingress Protection |
Cabinet: IP55; Inverter: IP65 |
|||
|
Cycle Life |
6000 @90% DOD / 25 / 0.5C |
|||
|
Certifications & Standards |
||||
|
Grid Regulation |
EN 50549-1, CEI 0-21, VDE4105, NRS 097-2-1 |
|||
|
Safety Regulation |
IEC 62619, EN 62477-1, IEC 62109-1, IEC 62109-2, IEC62477-1, EN 62109-1, EN 62109-2 |
|||
|
EMC |
EN / IEC 61000-6-2, EN / IEC 61000-6-4, EN IEC 61000-3-11, EN 61000-3-12 |
|||
