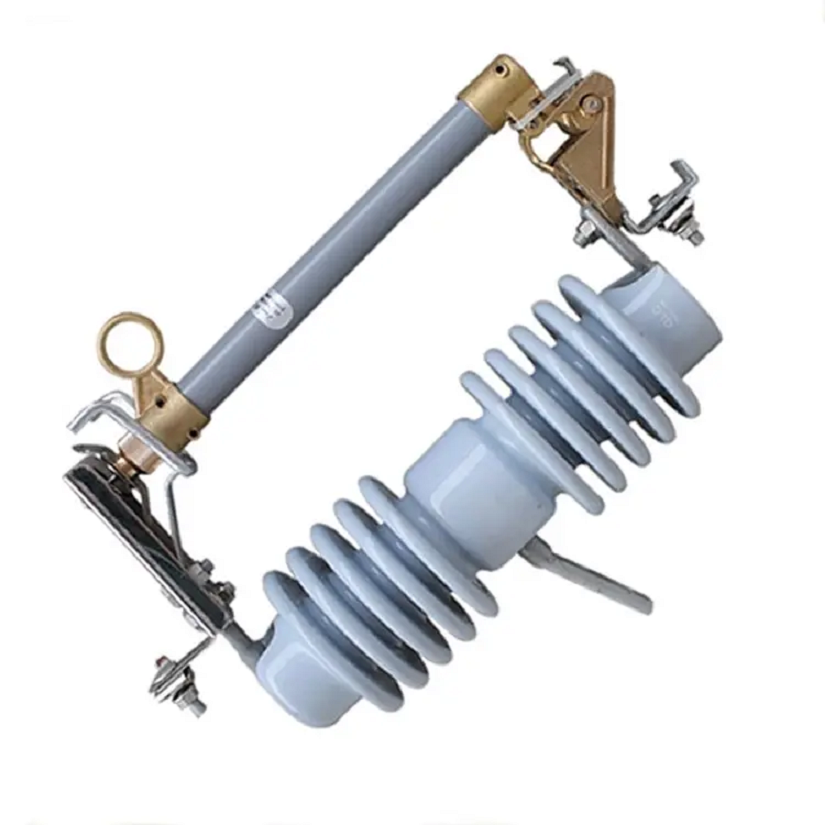

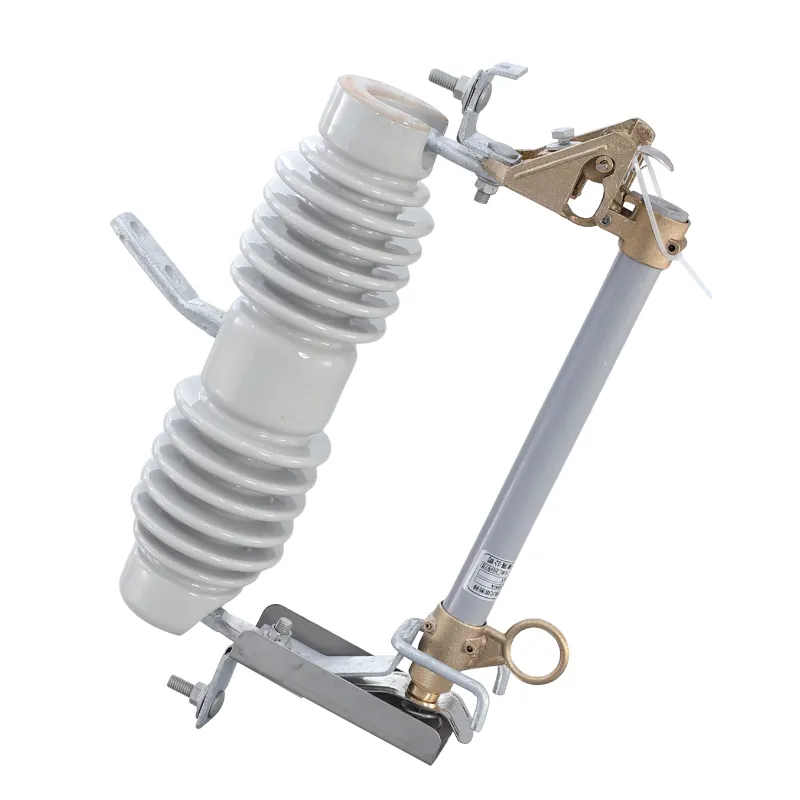

Factory Price Fuse Cutout, Drop out Fuses 11-22kV
DROP OUTFUSES
11Kv
| N/O | DETAIL | DATA | ||
| 1 | Description | 11kV Fuse linkassemblycompletewith fusecarrier ratedat 100Aand mounting brackettoPIESA 002.(SeeFigure 1 toFigure 12 below) |
||
| 2 | Systemconditions of service a) nominalVoltage(Un) r.m.s |
kV |
11 |
|
| b) maximumsystem voltage (Um) r.m.s | KV | 12 | ||
| c)earthing | Effective & noneffective | |||
| d) Frequency | Hz | 50 | ||
| 3 | Siteconditions of service a)altitude |
m |
1400 |
|
| b)Operating Ambient temperature | °C | -1 to 40 | ||
| c)Humidity | % | 85 | ||
| 4 | Rating | |||
| a)Nominal voltage | kV | 11 | ||
| b) Ratedcurrent | Fusecarrier | A |
100 |
|
Cut out base |
A |
200 |
||
| 5 | Electricalcomponents | |||

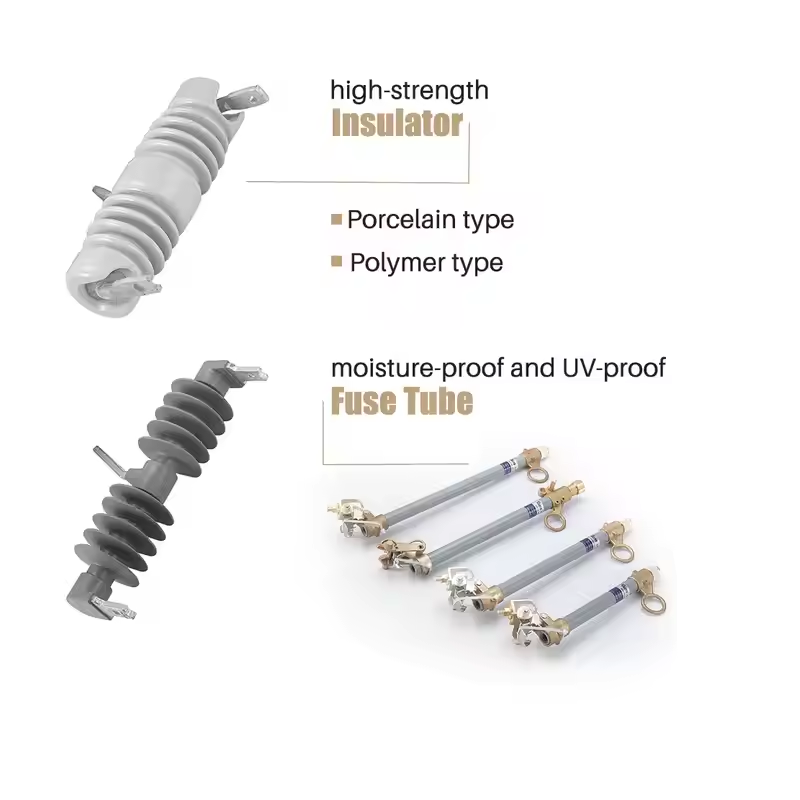

| a)Insulator material specification | Porcelain | |||
| Dielectric strength | ||||
| Lightningimpulse withstand(1.2/50) | kV | 95 | ||
| Powerfrequency wet withstand voltage r.m.s |
kV | 28 | ||
| 6 | Specificcreepagedistance | mm/kV | 25 | |
| 7 | Generalinformationto be provided with bid: |
|||
| Drawingsandbrochures showing outlineand general arrangement |
Yes/No |
Yes |
|
| b)Detailed drawings ofall items showingcriticaltolerances to be provided with bid |
Yes/No | Yes | |
| 8 | PreviousType test report/certificate on completefuse linkassembly to be provided with bid |
Yes/No |
Yes |
| 10 | Routine tests (acceptance tests on sample Product) to be providedon delivery |
Yes/No | Yes |
| 11 | Applicable standard | PIESA 002 | |
| 12 | Otherapplicable standards | NRS 035 SABSIEC 60282-2 SABSIEC 60186 BS 137 part 2 |
