Film impact tester

•

Product Introduction

The film impact testing machine, through the hemispherical punch at a certain speed, impacts and passes through the film sample, measures the energy consumed by the punch, and evaluates the anti-pendulum impact energy of the film sample.

The sample to be measured is placed in the middle of two splints to clamp, and the pendulum is adjusted by counterweight to form enough mechanical energy to impact the surface of the sample to be measured during the impact process to break down or not break down the sample to be measured. The energy borne by the sample to be measured is the loss part of the total mechanical energy formed by the pendulum during the impact process, and is read out on the dial through the pointer.

standards

ASTMD3420-2014、GB8809-2015、GB/T 20624.1—2006/ISO 6272-1:2002、ASTM D2794—2019;

Performance parameters

- Full range of dial: 3J/(30cm.kgf)

- Maximum impact energy: 3J

- Hammer diameter: Φ25.4mm: suitable for test specimens with diameter of medium 50-60 (Class A test in the standard); Φ19mm: Suitable for testing specimens with a diameter of 89 (Class B test in the standard)

- Reading dial minimum scale value: 0.020J/ grid (0.20cm.kgf)

- Specimen clamp diameter: Φ89mm, Φ60mm

- Swing range: R300mm

- Swing Angle: 90°

Other supplier products

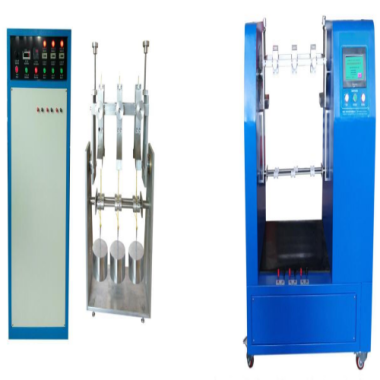

	Automotive wire cyclic bending testing machine	StandardThis testing machine aligns with global automotive industry standards for wire harness reliability, includingISO 6722(Road vehicles –...
	Pneumatic fabric dilatometer-QINSUN	Main Purpose Primarily used to test the bursting strength and bursting expansion of knitted fabrics, woven fabrics, nonwoven fabrics, laminated fa...

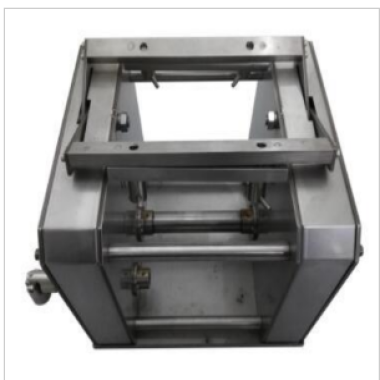

	Automotive Wires Dynamic Bending Tester	Standard ISO 6722: Road vehicles – Flexible cables for wiring harnesses. SAE J1128: Low-voltage primary cable for automotive applicatio...

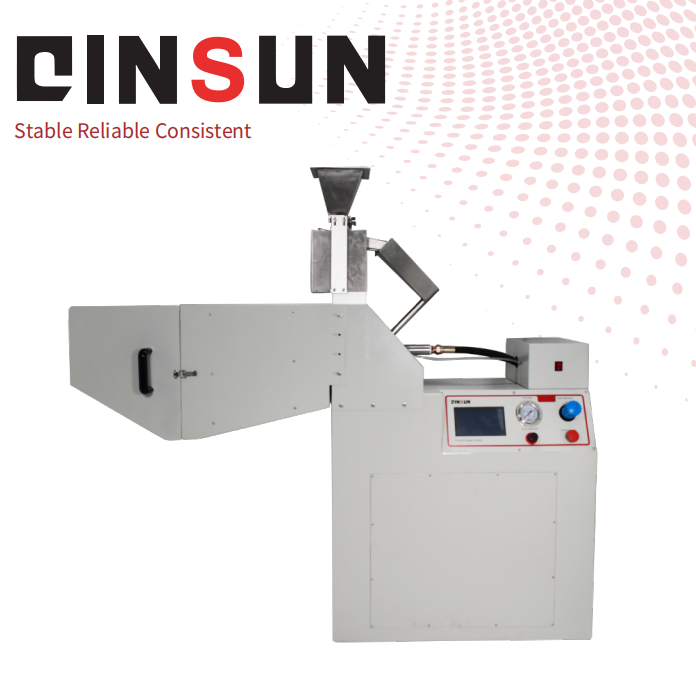

	Gravel Resistant Impact Tester	Standards ASTM D3170: Coating resistance to gravel impingement. ISO 20567: Paints and varnishes – Resistance to stone chipping. SAE J400...
