Car seat static strength tester
Applicable standards:
GB 11550-2009"Car seat headrest strength requirements and test methods" : This standard specifies the static strength test requirements and test methods of car seat headrest, which is suitable for the static strength test of car seat headrest.
GB 15083-2006"Strength requirements and test methods for car seats, seat fixtures and headrests" : This standard provides static strength test methods and requirements for car seats, seat fixtures and headrests, covering seat backs, seat cushions, headrests and other components.
EN-71-1
ISO 8124-1
GB6675-2
Main parameters:
Load measurement range:The load measurement range of the tester is usually between (40 to 2000)N, depending on the model and configuration of the tester. This parameter determines the maximum and minimum loads that the tester can measure.
Load accuracy:Load accuracy is usually expressed as the percentage error of the measured value, generally around ±1%. This parameter reflects the accuracy and reliability of measuring load of the tester.
Load cylinder stroke:The load cylinder stroke refers to the maximum distance that the tester can move during the loading process, usually around 500mm. This parameter determines the range of loads that the tester can simulate.
Displacement accuracy and resolution:Displacement accuracy is usually expressed as a percentage error or absolute error of the measured value, while displacement resolution refers to the smallest change in displacement that the tester can detect. These parameters affect the accuracy and sensitivity of measuring displacement.
Angular displacement measurement and control accuracy:For test items that need to measure angular displacement, the tester should have sufficient angular displacement measurement and control accuracy, usually around ±0.01°. This parameter reflects the accuracy and stability of the tester when measuring angular displacement.
Sampling frequency:Sampling frequency refers to the rate at which the tester collects data during the test, usually around 1000Hz. The high sampling frequency ensures that the tester can capture more data points, which improves the accuracy and reliability of the test.
Equipment power supply:The tester usually needs a single-phase AC220V, 50Hz power supply, the power depends on the tester model and configuration.
Software functions:The tester is usually equipped with professional test software for controlling the test process, collecting and processing data. The software functions should include manually setting conditions to find the feature points of the curve, obtaining the slope between two points of any curve, scaling and moving the curve, exporting all test sampling points to Excel, etc.
Send product request
Other supplier products
 |
Manual Crockmeter for Color Fastness Tester-QINSUN | Standard AATCC 8(Colorfastness to Crocking) ISO 105-X12(Textiles - Tests for Colour Fastness - Part X12: Colour Fastness to Rubbing) ASTM D505... |
 |

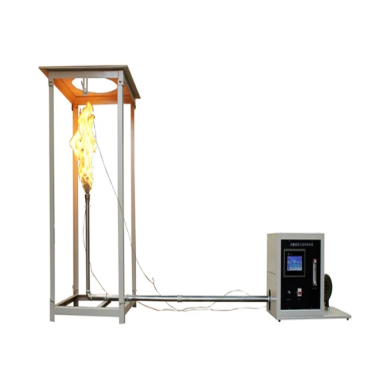

Fire retardant coating tester large plate method | Product Introduction The tester conforms to the technical indicators and requirements specified in the national standard GB12441-2005. and is suit... |
 |
Textile Far - Infrared Radiation Heating Tester | Application ScopeThis instrument is used to determine the far-infrared properties of various textile products, including fibers, yarns, fabrics, no... |
 |
AC/DC High - Voltage Testing Machine for Automotive Wires | The AC/DC high - voltage tester for automotive wires is specially used to test the insulation between wire cores or between wire cores and outer ... |
 |

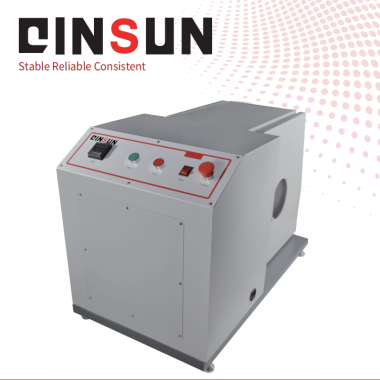

Hexapod Tumbler test machine-QINSUN | Standard BSEN 1471:1997: Evaluation of Appearance Changes in Floor Coverings ISO 9405:2001: Floor Coverings – Determination of Appearance C... |
