Geomembrane thickness tester
Scope of application:
Used to determine the thickness of smooth geomembrane and other plastic films under specified pressure and time. The sample is placed on the reference plate, and after a specified pressure is applied to the sample for a certain period of time with a circular press foot parallel to the reference plate, the vertical distance between the two plates is measured, and the geomembrane thickness is expressed as the average value of the test results.
Meet the standard:
GB/T 13761.1-2009.1S0 .GBT6672-2001.1S04593-1993.ASTM D5199-2001.SL/T235-6-2012JTG E50 T1112-2006.etc.
Instrument features:
Design and manufacture according to the standard, in line with the standard specifications;
With single and continuous measurement functions;
Press foot electric lifting, easy to operate;
Prescreening time can be set in advance to reduce manual error;
Using dial gauge measurement, high precision;
Measurement value digital display, easy to read.
Technical parameters:
Measuring range 0.001mm——20mm
Minimum division value 0.001mm
Press foot diameter of medium 10mm or medium 6.35mm
Working pressure 2+0.01kPa,20+0.1kPa,200+1kPa
Power supply AC 220V 50Hz
Overall dimensions 440x210x395mm
Weight 28kg
Standard configuration:
1. One host
2. One power cable
3. One medium 10mm press foot
4.16.02g weight (2Kpa)1
5.80.1g weight (20Kpa)2
6.801g weight (200Kpa)2 PCS
7. Product packing list 1 copy
8. Product description: 1 book
9. One copy of product certificate
Send product request
Other supplier products
 |
High Impact Marine Tank Cleaning Machine，Oil Tank Cleaning Machine | Working Principle: STD 45 tank washer drives the impeller through cleaning liquid and drives the transmission mechanism. The speed of rotation is ... |
 |
Fully Automatic Stripping Machine for Automotive Wires | The fully automatic stripping machine for automotive wires complies with the standards of GB/T2951 - 2008 and IEC60811 *General Test Methods for ... |
 |

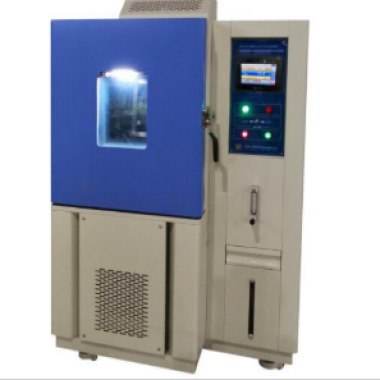

Automotive Wires Ozone Aging Chamber | Standards ISO 6722: Road vehicles – Electrical cables – Dimensions and test methods. SAE J1128: Low-voltage cables for automotive... |
 |
MK sheet forming machine | Standards: TAPPI T 205 ISO 5269-2 ISO 5269-1 Advantages: M/K Systems offers semi-automatic and automatic laboratory sheet forming machines. Un... |
 |
Wire Cut - through Tester for Ford Automotive Wires | Applicable Standard: Engineering Specification - Ford Global Wire specification, PART NO. ES - AU5T - 1A348 - AA Technical Parameters: 1. Sensin... |
Same products
 |

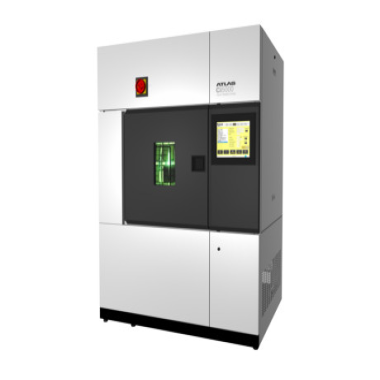

Tabletop Xenon Arc Weathering Tester (SunMaster) | Seller: Standard Groups | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Water-Cooled Xenon Lamp Weat... |
 |
