Standards
- ISO 5402: Leather physical testing – Flex tester method for adhesion and strength analysis.
- SATRA TM55: Seam fatigue testing for footwear, ensuring stitching integrity under cyclic stress.
- ASTM D6193: Loop strength testing for leather goods, critical for accessories like belts and bags.
- GB/T 3903.32: Chinese national standard for footwear seam fatigue resistance.
- EN 13520: Flexometer testing for coated fabrics, validating bonding durability in automotive interiors.
Product Advantages
- Multi-Station Efficiency: Simultaneously test up to 4 samples, accelerating QC workflows and reducing testing time.
- Precision Flex Simulation: Adjustable stroke frequency (100–300 cycles/min) and bending angles (0–90°) replicate real-world wear patterns.
- Versatile Applications: Ideal for footwear, automotive upholstery, fashion accessories, and industrial textiles.
- User-Centric Design: PLC-based touchscreen control with programmable cycles, angles, and loads for automated testing.
- Data-Driven Insights: Built-in cycle counter and failure detection for objective pass/fail criteria (e.g., stitch breakage thresholds).
- Compact Durability: Robust construction with a 120W motor and 50N load capacity for heavy-duty use in industrial labs.
Product Features

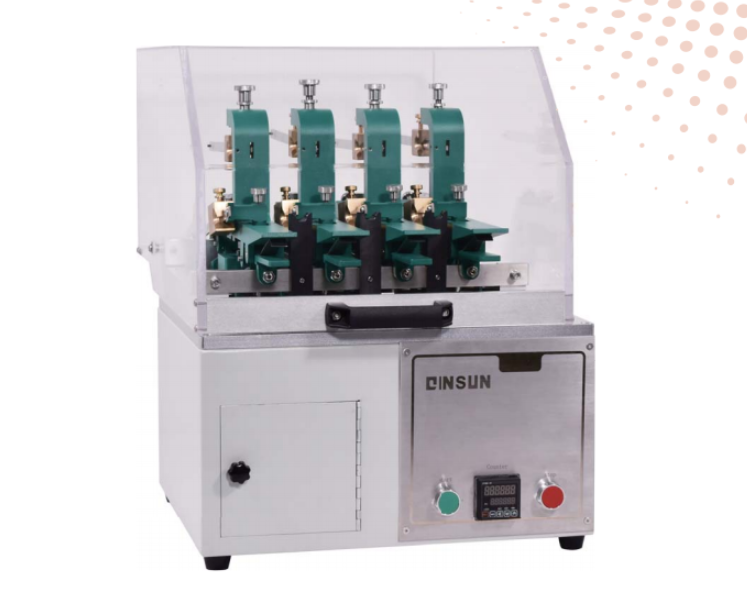

- Quad-Testing Stations: Independent clamping mechanisms for parallel evaluation of seams, loops, or bonded joints.
- Customizable Testing Modes:
- Seam Fatigue: SATRA/ISO-compliant bending cycles (e.g., 50,000 cycles for footwear uppers).
- Loop Strength: ASTM-standard tension tests for leather accessories.
- Adhesion Integrity: EN 13520-compliant coating delamination analysis.
- Advanced Control System:
- 7-inch touchscreen with preset protocols for footwear, automotive, and fashion industries.
- Adjustable load cell (0–50N) for tension/compression testing.
- Fail-Safe Mechanisms: Auto-stop function upon seam failure or cycle completion, with real-time data logging.
- Ergonomic Design: Quick-release clamps for rapid sample mounting and tool-free angle adjustments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Stations | 1–4 (simultaneous operation) |
| Stroke Frequency | 100–300 cycles/min (adjustable) |
| Bending Angle | 0–90° (customizable) |
| Load Capacity | 0–50N (adjustable) |
| Sample Dimensions | 150 × 30 mm (standard) |
| Control System | PLC with touchscreen (programmable cycles, angles, loads) |
| Power Supply | 220V/50Hz, 120W |
| Dimensions | 600 (L) × 450 (W) × 500 (H) mm |
| Net Weight | 45 kg |
| Cycle Counter | Digital (1–999,999 cycles) |
