Coating Thickness Gauge
The Coating Thickness Gauge is a high-precision contact-type thickness measuring instrument designed for accurate determination of thickness for films, papers, foils, nonwovens, and sheet materials.
The instrument strictly follows standardized contact area and measuring pressure requirements to ensure reliable and repeatable results, while also supporting non-standard customization to meet special testing needs.
With automatic lifting and lowering of the measuring head, real-time statistical analysis, and touchscreen operation, the system effectively reduces human-induced measurement errors and is suitable for both laboratory testing and production quality control.
Application
Basic Applications
(1) Plastic films (packaging film, agricultural film, functional films)
(2) Paper products (paperboard, corrugated board, diaphragm paper)
(3) Foils (aluminum foil, copper foil, composite foil materials)
(4) Silicon sheets and metal sheets
(5) Solid electrical insulating materials
(6) Textile materials and coated fabrics
(7) Nonwoven products (diapers, sanitary napkins, medical nonwovens)
Extended Applications (special accessories or customization required)
(1) Thick films and sheets with extended measuring range (up to 5 mm or 10 mm)
(2) Curved or special-shaped samples using customized curved measuring heads
(3) R&D testing for multilayer composite materials
Standards
(1) GB/T 6672 – Determination of Thickness of Plastic Film and Sheet
(2) GB/T 451.3 – Paper and Board — Thickness Determination
(3) GB/T 6547 – Corrugated Board — Thickness Measurement
(4) ISO 4593 – Plastics — Film and Sheet — Thickness Measurement
(5) ISO 534 – Paper and Board — Thickness, Density and Specific Volume
(6) ISO 3034 – Corrugated Fibreboard — Thickness Measurement
(7) ASTM D374 – Thickness of Solid Electrical Insulating Materials
(8) ASTM D1777 – Thickness of Textile Materials
(9) TAPPI T411 – Thickness (Caliper) of Paper, Paperboard, and Combined Board
(10) JIS K6250 – Rubber and Plastic — Thickness Measurement
(11) JIS K6783 – Plastic Films and Sheets — Thickness
(12) JIS Z1702 – Packaging Materials — Thickness Testing
(13) BS 3983 – Measurement of Thickness of Plastic Films
(14) BS 4817 – Thickness Measurement of Sheet Materials
Features
(1) Designed strictly in accordance with standard contact area and measuring pressure requirements
(2) Automatic lifting and lowering of the measuring head to eliminate operator-induced errors
(3) Supports both automatic and manual measurement modes
(4) Optional automatic injection system with adjustable injection step, measuring points, and injection speed
(5) Real-time display of maximum value, minimum value, average value, and standard deviation
(6) Standard calibration blocks supplied to ensure accuracy and data consistency
(7) Supports real-time data display, automatic statistics, and report printing
(8) 5-inch touchscreen interface for intuitive operation and data viewing
(9) Standard USB interface for easy data transfer to external computers
Technical Parameters
| Parameter | Specification |
|---|---|
| Measuring Range (Standard) | 0–2 mm |
| Measuring Range (Optional) | 0–5 mm / 0–10 mm |
| Resolution | 0.1 μm |
| Measuring Pressure | 0.5–1.0 N |
| Measuring Diameter | Φ3 mm – Φ10 mm (Optional) |
| Platform Area | 520 mm × 390 mm (Customizable) |
| Automatic Injection Speed | 0.1–99.9 mm/s |
| Display | 5-inch color touchscreen |
| Data Interface | USB |
| Power Supply | AC 220 V, 50 Hz |
| Overall Dimensions (L × W × H) | 620 × 415 × 350 mm |
| Net Weight | 40 kg |
| Customization | Contact diameter, pressure, range, and fixtures customizable |
Send product request
Other supplier products
 |
Density of Smoke from the Burning or Decomposition of Plastics | In a fire, people are often smoke suffocated or unable to escape because of the invisible road, so in the prevention of fires,smokedensity of the t... |
 |
Flexometer / Bally Leather Flexing Tester | Testing Equipment | Applicable Standards The tester adheres to global standards for leather physical testing, including: ISO 5402-1(Leather – Physical and mech... |
 |

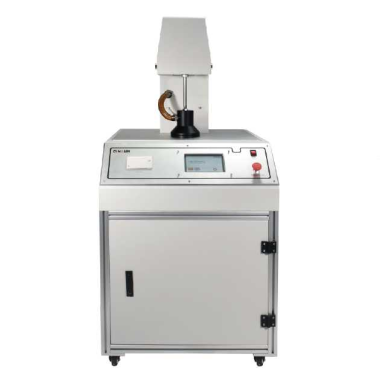

Filter Media Tester | The Filter Media Dynamic Filtration Performance Testeris mainly used to test the filtration performance of filter materials. The equipment itself i... |
 |
