Cork Puncture and Chip Detection Instrument
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The main purpose of the rubber stopper puncture debris detector is to evaluate the puncture debris - generating performance and puncture force of rubber stoppers to ensure they meet relevant standards and requirements. Through testing, rubber stoppers with puncture debris issues can be promptly identified and removed, preventing unqualified products from entering the market, thus safeguarding the safety and effectiveness of drugs. This device is widely used in the medical, pharmaceutical, and packaging industries, and is of great significance for ensuring drug quality and patient safety.
Standards
- YBB00332004 - 2015 Determination of Puncture Debris of Rubber Stoppers and Gaskets for Injectables
- YBB00322004 - 2015 Determination of Puncture Force of Rubber Stoppers and Gaskets for Injectables
- GB 8368 - 2018 (May involve relevant standards for packaging materials, but the specific details need to be determined according to the equipment's intended use and the information provided by the manufacturer)
These standards specify in detail the test methods for the puncture debris and puncture force of rubber stoppers, specimen preparation, test conditions, etc., providing a unified standard for the use of the detector.
Features
• 7-inch color touchscreen with intelligent data processing capabilities provides a comfortable and smooth user experience.
• High-performance motor + ball screw drive for stepless speed adjustment.
• Simple and intuitive user interface, convenient user-defined testing functions, and comprehensive data analysis and reporting capabilities.
• Equipped with puncture fixtures, allowing for setting the number of tests.
• Automatic calibration and simple operation.
• Brand new UI design with an intuitive interface significantly enhances the user experience.
• Supports testing of various sample sizes; users can freely choose different needle sizes.
• Features automatic data storage and automatic memory function after power failure.
• The device has a powerful built-in data storage capacity, capable of storing over 50,000 data entries.
• The computer software complies with GMP requirements for computerized systems, featuring user management, access control, and data audit tracking functions.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Puncture Force Range | Generally, it can reach 0 - 200N (specific value varies by model/brand); covers testing needs for most rubber stopper puncture tests. |
| Control System | Mostly adopts PLC control system for precise control and data recording; features high stability/reliability to ensure testing accuracy and traceability. |
| Operation Interface | Equipped with a 7-inch touch-screen interface (supports Chinese-English switching). Enables operators to easily set parameters, monitor the process, and view test results. |
| External Dimensions | Approximately 500mm×500mm×450mm (varies by model/brand); compact design for easy placement/movement, applicable to different production sites and laboratories. |
| Puncture Speed | Arbitrarily settable within 0 - 100mm/min (design range up to 0 - 200mm/min). Different speeds simulate various conditions for comprehensive evaluation of rubber stopper puncture performance. |
| Test Materials | Applicable to puncture debris testing of rubber stoppers for vials, ampoules, cartridge vials, infusion bottles (etc.). Supports customized fixtures for different sample specifications. |
| Data Recording and Processing | Automatically records data and generates reports (facilitates quality traceability/analysis). Some models support remote data uploading and cloud storage for convenient data management. |
Send product request
Other supplier products
 |
Fabric Downproof Tester(Rolling Box) - Test Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Standards GB/T 12705.1:Textile -Methods of testing the down-proof properties of f... |
 |
Shoe Peeling Strength Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Shoe Peeling Strength Tester is designed to evaluate the adhesive bond strengt... |
 |
Leather Bending Resistance Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Leather Bending Resistance Tester is used to test the bending resistance perfo... |
 |
Reciprocating Wear Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Evaluate the wear resistance of key mechanical components such as engine pistons, ... |
 |

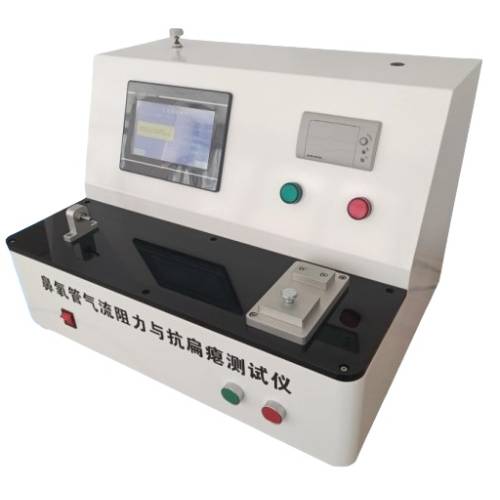

Nasal Oxygen Cannula Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The nasal oxygen tube tester is mainly used to test key parameters of nasal oxygen... |
