Double Pendulum Digital Tear Tester
The double pendulum digital tear tester is mainly used to measure the ability of various fabrics (such as clothing fabrics, home textile fabrics, etc.) to resist tearing.
Applications
Textile industry:
It is widely used in fabric production and clothing manufacturing to help manufacturers and quality inspection agencies detect fabric quality and ensure that the products meet relevant standards and usage requirements.
Research field:
Researchers use this instrument to study the effects of different fibers, fabric structures and other factors on tearing performance in order to develop new high-performance fabrics.
Standards
BS EN ISO 13937 Textiles. Tear properties of fabrics. Determination of tear strength by impact pendulum method (Elmendorf)
BS EN ISO 4674-2 Rubber or plastic coated fabrics. Determination of tear resistance. Impact pendulum method
ASTM D5734 Test method for tear strength of nonwoven fabrics using a falling weight (Elmendorf) test apparatus
GB/T 455 Determination of tear strength of paper and paperboard. Complies with multiple test standards.
BS EN ISO 21974 Plastics. Determination of tear properties by pendulum impact. Part 2. Impact test with measuring instruments.
GB/T 3917.1 Textiles. Tear properties of fabrics. Part 1: Determination of tear strength by impact pendulum method.
ASTM D689-96a Test of tear strength of paper.
TAPPI T414 om-12 paper. Determination of tear strength (Elmendorf method)
ASTM D1424 Impact Pendulum Method for Determining the Tear Strength of Fabrics
NEXT 17 Tear Strength Testing
DIN EN 21974 Paperboard – Determination of Tear Resistance (Elmedorf Method)
DIN EN ISO 13937-1 Textiles – Determination of Tear Properties of Fabrics (Elmedorf Method)
DIN EN ISO 1974 Paper – Tear Resistance – Elmedorf Method
DIN EN ISO 6383-2 Plastics – Films – Part 2: Elmedorf Method
Technical Parameters
| Parameter | Specification |
|---|---|
| Structure | Elmendorf double impact pendulum |
| Clamp | Spring clamp |
| Sample material | Fabric, plastic, cardboard, etc. |
| Unit of measurement | mN, CN, N, g, kg, lb |
| Notch length | 20mm |
| Tear length | 43mm |
| Clamp spacing | 2.7mm±0.1mm |
| Blade | Tungsten carbide blade |
| Measurement range | 200cN-30000cN |
| Power supply option | 120/230 V, 50/60 Hz, 2A/1A |
| Dimensions | 420mm × 620mm × 430mm |
| Weight | 85kg |
Send product request
Other supplier products
 |
Children's Product Comprehensive Force Tester | The Children's Product Comprehensive Force Tester is a versatile and fully automated instrument designed to evaluate the mechanical strength and sa... |
 |
Sweating Guarded Hotplate | Testing Equipment | TheThermal and Water-vapour Resistance Testeris a special measurement device used for measurement of thermal and water-vapour resistance under stea... |
 |
Textile Formaldehyde Content Tester | In China, the national mandatory standard "national textile products basic safety technical specifications" GB18401-2003. with effect from 1 Januar... |
 |

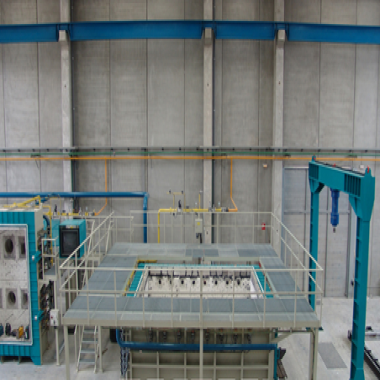

Fire Resistance Horizontal Test Furnace | Fire resistance horizontal test furnace is an instrument for testing the fire resistance performance of a building structure, a column, a bracket, ... |
 |
