High Temperature Oxygen Index Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The High-Temperature Oxygen Index (TOI) measuring instrument determines oxygen index at up to 125°C, offering better flammability assessment than traditional methods. As gas temperature increases, the oxygen index decreases. It follows ISO 4589 Part 3 or NES 715 standards, achieving high temps via preheated gas and furnace wall settings. A built-in pump conserves gas between tests, with nitrogen and oxygen bottles connected only during testing.
Application
Evaluating material combustion performance in R&D.
Quality control for product acceptance.
High-temperature safety assessment in industries like aerospace, automotive, and construction.
Standards
ISO 4589-3: Plastics – Oxygen index method (high-temperature test).
GB/T 2406.2 / ISO 4589-2: Plastic oxygen index test (normal/high-temperature).
ASTM D2863: Plastic oxygen index standard.
GB/T 5454-1997: Textile oxygen index method.
NES 714/715: UK oxygen index test standards.
Product Advantages
High-Temperature Precision: Tests up to 200°C with rapid response (10s heating).
Accurate Oxygen Control: ±0.5% concentration accuracy (0–100% range).
User-Friendly Design: Full-color touchscreen with Chinese/English interfaces.
Versatile Testing: Suitable for diverse materials (plastics, rubber, textiles).
Safety Compliance: Meets global standards for reliable data.
Feature
Testing Principle: Vertical sample combustion in oxygen/nitrogen gas flow. Combustion time and oxygen percentage are measured to determine LOI.
Key Components
Heat-Resistant Cylinder: Borosilicate glass (inner dia. >75mm, height >550mm).
Stainless Steel Beads: Enhances gas flow uniformity (4mm dia., 80–100mm height).
Pilot Burner: 2mm inner dia., 400mm length for precise ignition.
Gas Control: Automated oxygen/nitrogen mixing with flow rate 12.1L/min.
Parameters
| Parameter | Specification |
|---|---|
| Control Mode | Full-color touchscreen (CN/EN) |
| Oxygen Range | 0–100% (±0.5% accuracy) |
| Temperature Range | Room temp–200°C |
| Heating Power | 1000W |
| Test Cylinder Dimensions | Inner dia. >75mm, Height >550mm |
| Gas Inlet | 7mm (O₂/N₂) |
| Power Supply | 220V, 50Hz |
| Dimensions | 700mm (L) × 430mm (W) × 770mm (H) |
| Weight | 55kg |
Send product request
Other supplier products
 |
Digital Auto Burst Strength Tester - lab instrument | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com We are a professional testing instrument manufactur... |
 |
Spinneret Inspection Microscope | Get a quote： Web: qinsun-lab.com Email：serving@qinsun-lab。com The Spinneret Inspection Microscope is an instrument used to detect the size of sp... |
 |
Retro-Reflective Coefficient Tester GB/T 28468-2012 | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Retro-Reflective Coefficient Tester is a precision instrument designed to eval... |
 |
Full-Body Garment Stress Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com TheFull-Body Garment Stress Testeris a precision instrument designed to quantify t... |
 |

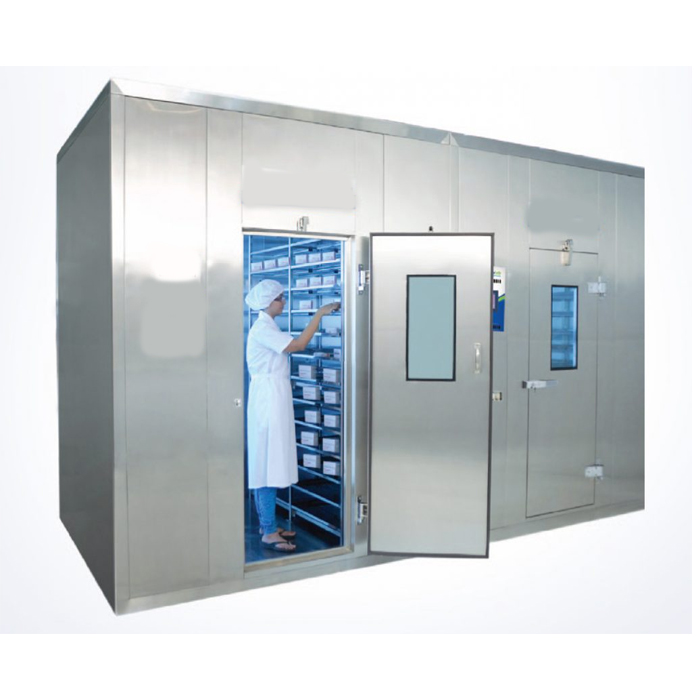

Walk In Pharmaceutical Stability Chamber | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Pharmaceutical Stability Testing Laboratory is designed for conducting accelerated... |
