Pump and Valve Contamination Tolerance Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Evaluating the wear resistance and durability of hydraulic pumps and valves simultaneously under contaminated fluid conditions.
Determining the impact of fluid contamination on the performance characteristics (efficiency, leakage, control accuracy, response time) of pumps and valves over time.
Validating the contamination tolerance of pump and valve designs, materials, and manufacturing processes.
Benchmarking the contamination resistance of different pump and valve models or manufacturers.
Research and development of more robust hydraulic components for use in contaminated environments.
Assessing the effectiveness of design modifications in improving contamination tolerance.
Standards
(1) ISO 4406:2021 — Hydraulic fluid power — Fluids — Method for coding the level of contamination by solid particles.
(2) ISO 18413:2017 — Hydraulic fluid power — Filters — Vocabulary and commercial specifications.
(3) ISO 10707:2019 — Petroleum products and lubricants — Determination of demulsibility characteristics.
(4) ISO 6403:2018 — Hydraulic fluid power — Filter elements — Verification of collapse/burst pressure.
(5) ISO 10372:2016 — Hydraulic fluid power — Filter elements — Method for measuring filtration performance.
(6) NFPA T2.6.1 — Standard for Hydraulic Power Units.
(7) GB/T 16907-1997 — Hydraulic systems — General technical specifications.
(8) GB/T 14039-2002 — Hydraulic transmission — Solid particle contamination code for oil.
(9) JB/T 7857-2006 — Evaluation method for contamination sensitivity of hydraulic valves.
(10) ISO 12103-A3 — Test dust standard for simulating solid particle contamination.
Features
Provides a comprehensive evaluation of both hydraulic pump and valve performance and wear resistance in a single test setup under contaminated conditions.
Simulates the interaction of contaminated fluid with key components in a hydraulic circuit.
Essential for selecting pumps and valves that can reliably operate in hydraulic systems with expected levels of fluid contamination.
Helps validate component designs and materials specifically for resistance to wear and degradation caused by particles.
Provides objective, quantitative data on the long-term effects of contamination on pump and valve performance.
Supports research and development efforts aimed at improving the robustness and lifespan of hydraulic components.
Technical Parameters
| No. | Technical Parameters | Specifications |
|---|---|---|
| 1 | Test medium | Hydraulic oil |
| 2 | Temperature of medium | 10 ~ 80℃ |
| 3 | Test dust | ISO 12103-A3 |
| 4 | Test pressure range | 0.5 ~ 6MPa |
| 5 | Test flow | 1 ~ 20L/min |
| 6 | Purification cleanliness | -/12/10 (GB/T |
| 7 | Test tank volume | 40L |
| 8 | Execution standard | JB/T 7857-2006 |
| 9 | Equipment power supply | AC380V / 50Hz |
| 10 | Power of the whole machine | 5.5kW |
Send product request
Other supplier products
 |
dynamic fatigue testing machine | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com Theseam fatigue testeris designed to evaluate the f... |
 |
Fully automatic spinneret mirror inspection instrument (short fiber spinneret)| Testing Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Fully Automatic Spinneret Mirror Inspection Instrument (Detector) is designed ... |
 |

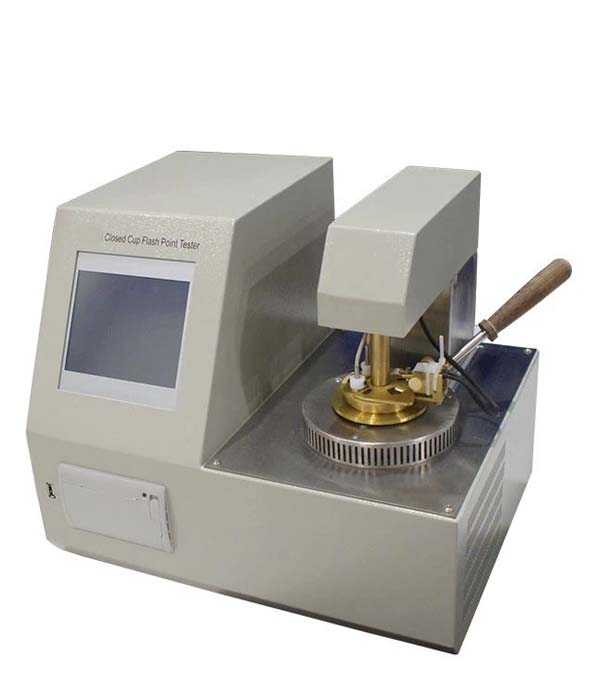

Pensky-Martens Closed Cup Flash Tester ASTM | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The flash point is key for classifying flammable liquids, crucial for safety in tr... |
 |
