Welding manipulator
Welding manipulator
The Welding Manipulatoris advance structure design, multi-functions and easy operation. Then increasing production capacity and assure the quality.
Stable Movement Process
Olivet's welding manipulatorcould be assembled to automatic welding system with the welding turning roll, automatic welding machine and welding control system, etc. It's widely used in industries as boiler, pressure vessel, chemical petroleum, metallurgical construction and machinery for inner and outer longitudinal welding and circumferential welding of various seams on cylindrical members.
The Welding Machineis advanced structure design, multi-functions and easy operation. Then increasing production capacity and assure the quality.
The Welding Manipulatorcould be divided into light, standard type、heavy and super-heavy according to weight-bearing, effective vertical and horizontal stroke.
According to actual usage, the manipulator can be divided into fixed, fixed with rotation and moveable with rotation, etc.

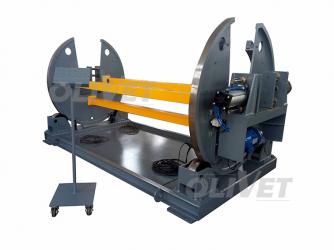

Welding PositionerFeatures
Advanced structure
Complete function
Improving of welding quality
Big loading capacity at the top of boom
Scope of supply
Main technical parameters
|
Type |
QLH (light) |
LH (middle) |
ZLH (heavy) |
LHW (super-heavy) |
|
|
Vertical stroke, m |
1-3 |
2-6 |
1-3 |
3-15 |
|
|
Horizontal stroke, m |
1-3 |
2-6 |
1-3 |
4-15 |
|
|
Beam elevating speed, mm/min |
600 |
600 |
600 |
800 |
|
|
Beam Horizontal speed, mm/min |
100-1500 |
100-1500 |
100-1500 |
600 |
|
|
Beam Horizontal speed control |
AC frequency conversion stepless inverter speed regulation (VFD) |
||||
|
Min height under boom(A), mm |
300 |
400 |
400 |
600 |
|
|
Mindistance from center line of column to the front end of the boom (B), mm |
500 |
1000 |
1000 |
1000 |
|
|
Column revolving |
Angle(°) |
±180 |
±180 |
±180 |
±180 |
|
Speed(rpm) |
By manual |
||||
|
Trolley moving speed, mm/min |
By manual |
2000 |
2000 |
2000 |
|
|
Trolley height (C), mm |
300 |
440 |
440 |
440 |
|
|
Inner side distance of rail if have (D), mm |
1200 |
1500 |
2000 |
2500 |
|
