Product Overview

SWT-V315H (3"-12") Hydraulic Butt Fusion Machine

DESCRIPTION
SWT-V315H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

SWT-V315H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
FEATURES

Welding ranges: plastic pipes 90mm-315mm
Reducing Inserts 90 mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm
Ranges of application PE,PP and PVDF
Working voltage ~220V±10%,50/60Hz
Total power  5.35 kW
Planning tool 1.1 kW
 Heating plate  3.5 kW
Hydraulic unit motor 0.75 KW
Environment temperature -10° ~ 45°
  Images of high density polyethylene Pipe Jointing Machine:






SWT-V315/ termofusion ppr welder

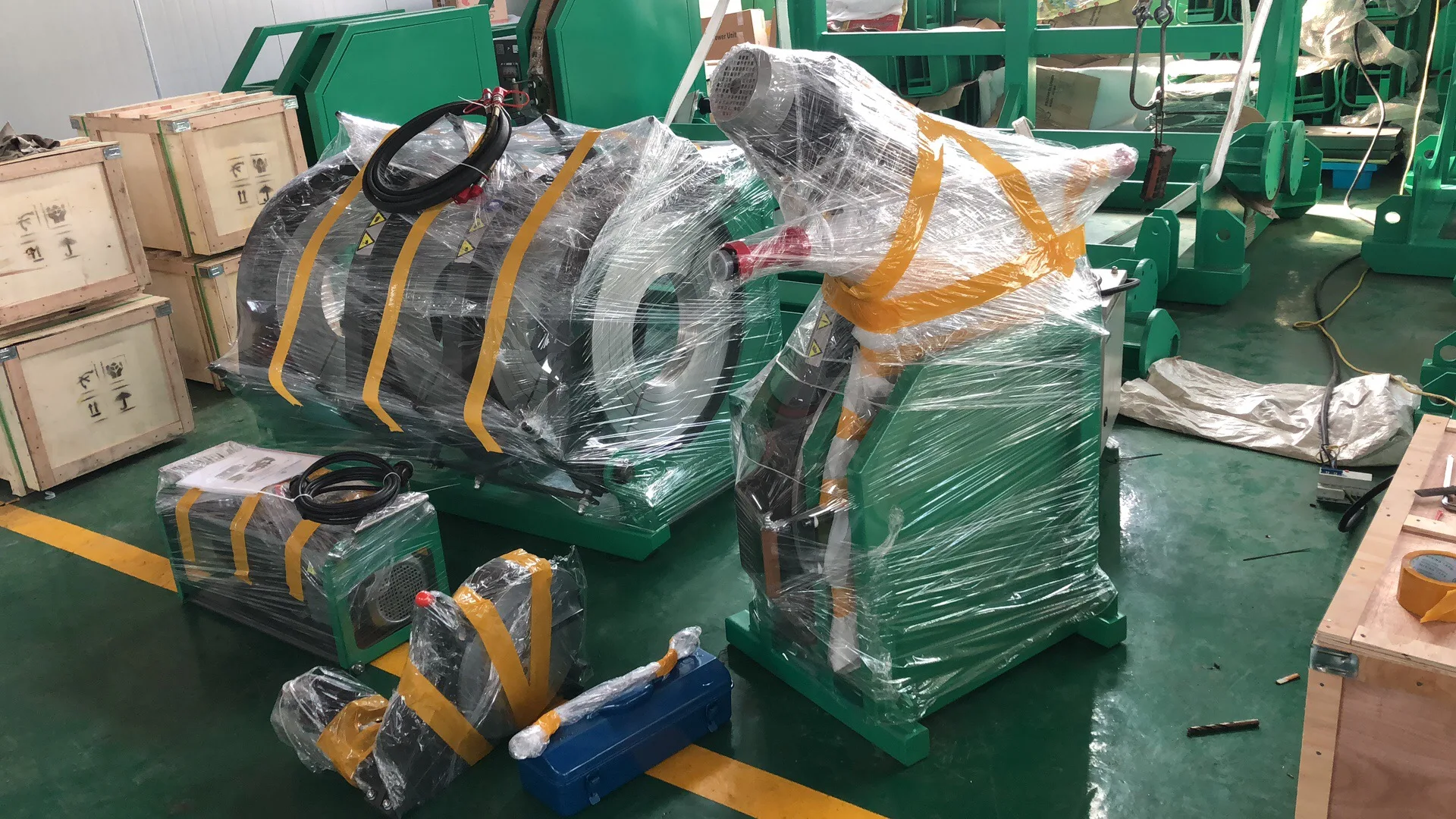

Packaging of Butt-fusion jointing of polyethylene (PE) pipes:

SWT-V315/ termofusion ppr welder

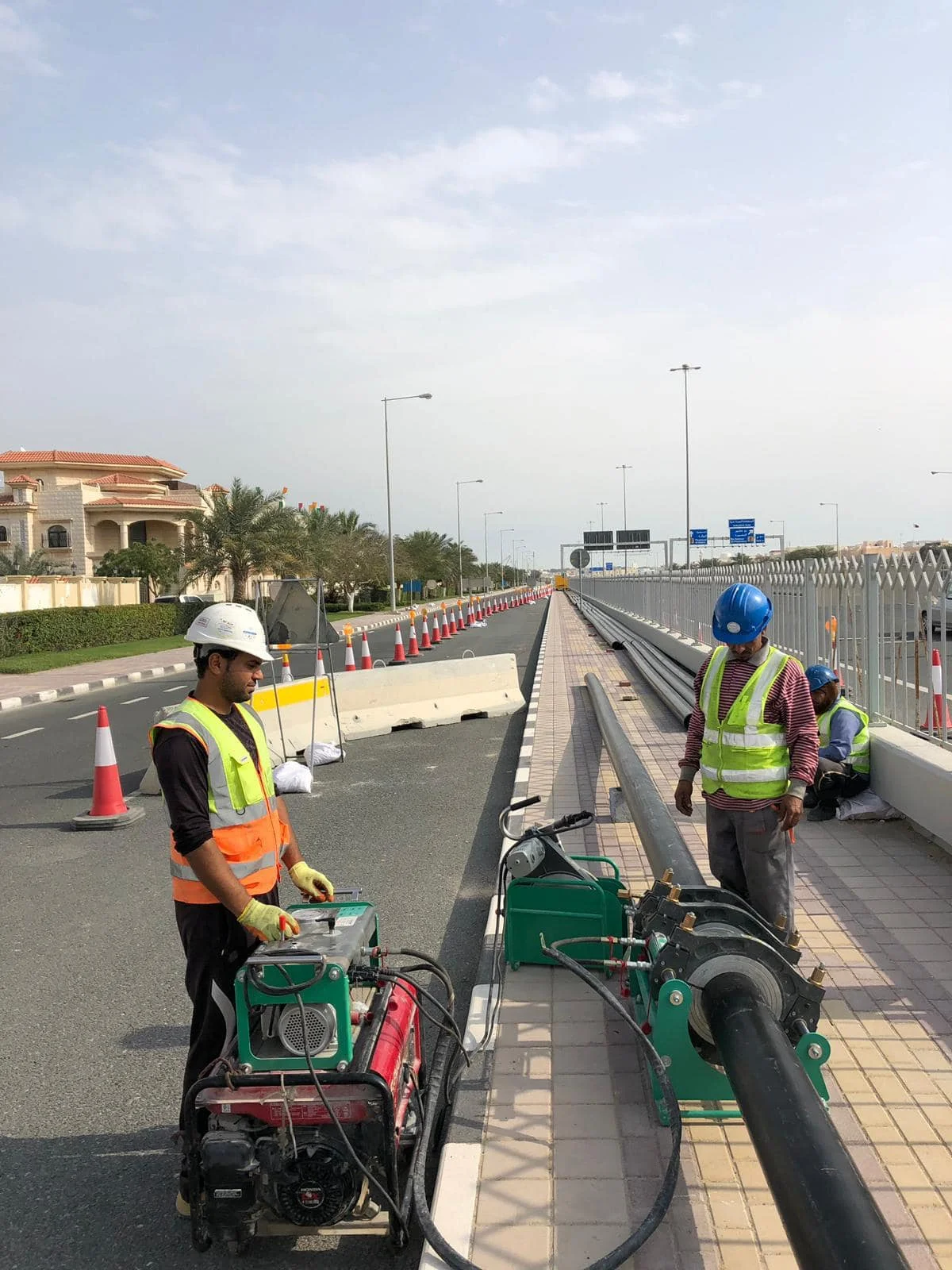

Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.



 SWT-V315/ termofusion ppr welderSWT-V315/ termofusion ppr welder
