Aluminum Bronze Trunnion Mounted Ball Valv

•

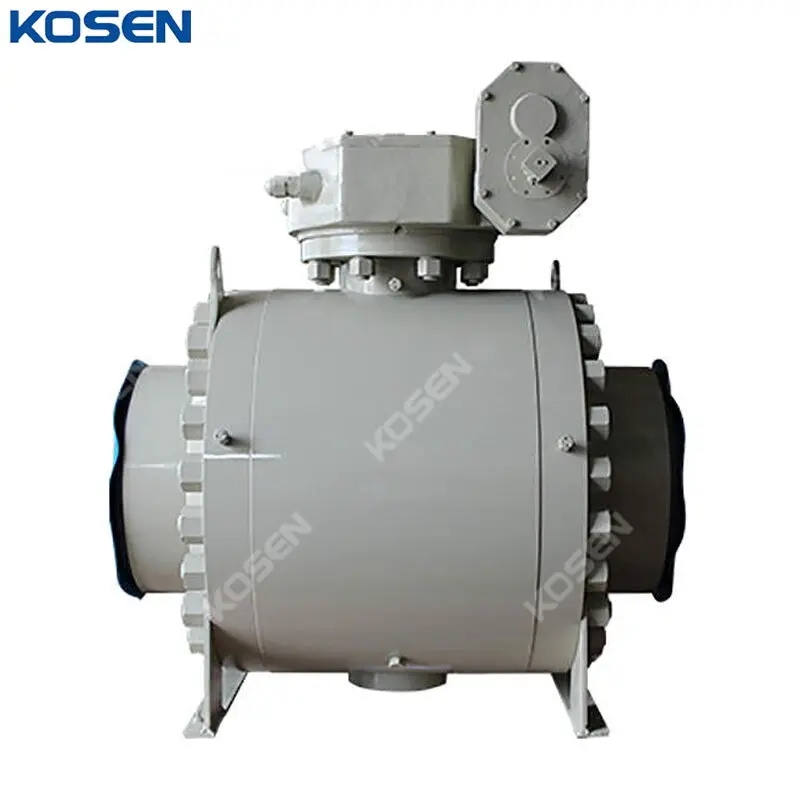

Product Name: Aluminum Bronze Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: Aluminum Bronze ASTM B148 C95800
Size: 8 Inch, DN200
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear Box

Trunnion Mounted Ball Valvesare designed for easy and smooth operation under high line pressures. The carefully aligned bearings ensure low torque operation, with the ball fixed in position but free to turn. All our Cast Trunnion Ball Valves feature high-quality castings and a fire-safe design, certified according to BS 6755, API 607, and API 6FA, while meeting all applicable ASME standards. Available in Two-Piece Split Body and Three-Piece Bolted Body configurations, these valves are designed and manufactured to the latest international standards, including API 6D, ASME B16.34, and BS 5351 or their equivalents. Standard features include fire-safe, anti-static, and blow-out proof stem designs for enhanced safety and reliability.

Technical Specifications

» Size Range: NPS 2-48 Inch (DN50-DN1200)
» Design Pressure: Class 150-900 LB (PN10-PN150)
» Materials: ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200
» Trim Materials: Monel K500, Duplex Stainless Steel
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: FF and RF Flanged
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -29°C to 120°C
» Medium: Seawater, Offshore and Marine
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face-to-Face (End-to-End): ASME B16.10
» Flanged Connections: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Fire Safety: API 607, API 6A
