fabric wet adhesion performance tester
Product Overview
The Fabric Wet Adhesion Performance Tester is a precision instrument designed to evaluate the adhesion behavior of clothing fabrics to human skin after being wetted. By simulating liquid-soaked conditions, it quantifies how fabrics stick to the skin, providing critical data for comfort, wearability, and performance in apparel materials.
Application
The tester is widely used in:
(1) Apparel and Fashion Textiles – Assessing skin adhesion of shirts, blouses, activewear, and intimate clothing.
(2) Sportswear & Outdoor Clothing – Evaluating comfort and mobility when fabrics are exposed to sweat or rain.
(3) Medical & Protective Clothing – Testing adhesion for surgical gowns, protective suits, or moisture-managing fabrics.
(4) Functional Textiles – Assessing wetted adhesion in moisture-wicking, cooling, or hydrophilic fabrics.
(5) Textile R&D & Product Development – Optimizing fiber blends, surface coatings, and fabric finishes.
(6) Quality Control – Ensuring batch-to-batch consistency in skin adhesion performance.
(7) Third-Party Testing & Certification – Verifying compliance with domestic and international standards.
(8) Education & Training – Demonstrating textile wet adhesion principles to students and trainees.
(9) Forensic & Performance Analysis – Studying fabric behavior under liquid exposure for product complaints or research.
Standards
Domestic Standards:
T/CNGA 64-2024: Determination of Wet Adhesion of Clothing Fabrics
FZ/T: Reviewed and pending publication
International Standards:
ISO 105-F: Textiles – Tests for colorfastness – Wet and dry rubbing methods (relevant for adhesion effects under wet conditions)
ISO 13934-1 / ISO 13934-2: Textiles – Tensile properties of fabrics (for evaluating mechanical response during wet adhesion testing)
ISO 105-E04: Textiles – Colorfastness to perspiration (simulates wet fabric-skin interaction)
ASTM D5034: Standard Test Method for Breaking Strength and Elongation of Textile Fabrics (relevant for wet tensile performance)
ASTM D2594: Standard Test Method for Pilling Resistance and Other Related Surface Changes of Fabrics (to indirectly assess wet adhesion effects)
EN 31092: Textiles – Physiological effects – Measurement of water vapor resistance of clothing fabrics (indirectly related to comfort under wet adhesion conditions)
AATCC TM79: Absorbency of Textiles – Evaluating wetting behavior relevant to adhesion and comfort
Product Features
(1) Four-level evaluation system for wet adhesion performance (Level 1: Excellent – Level 4: Poor).
(2) High-precision force measurement with 0.03% FS accuracy.
(3) Adjustable test speed from 1–100 mm/min for versatile testing.
(4) Servo-controlled movement with Panasonic motor and driver for stability and repeatability.
(5) Compact, ergonomic design suitable for laboratory environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Load | 300 g |
| Force Measurement Range | 0.4% – 100% FS |
| Measurement Accuracy | ±0.03% FS |
| Test Speed | 1–100 mm/min |
| Maximum Displacement | 80 mm |
| Displacement Accuracy | 10 μm |
| Servo Motor / Driver | Panasonic |
| Dimensions (L×W×H) | 545 × 419 × 509 mm |
| Power Supply | AC 220V ±10%, 400 W |
| Weight | 25 kg |
Accessories
Sample clamps and holders
Calibration weights
Servo motor driver interface
Protective covers
Send product request
Other supplier products
 |
Shoe heat insulation testing machine -- sand bath | Standard GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure. EN ISO 20344: European standard for... |
 |

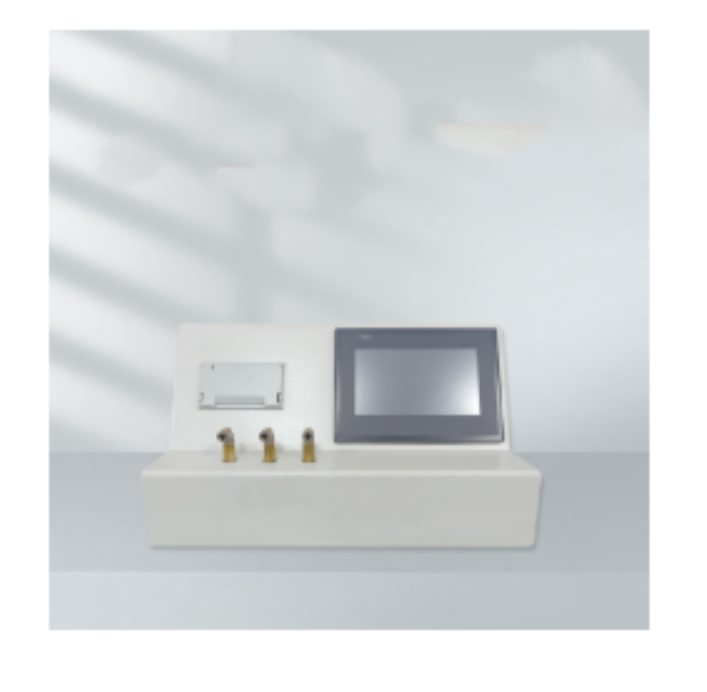

Catheter Airflow Resistance Tester | Applications The catheter airflow resistance tester is an important tool for evaluating the resistance of gas flow in catheters. It is specificall... |
 |
