The de Messia zigzag tester
Product Introduction:
It is suitable for the folding resistance test of rubber, leather, synthetic leather, sole, film, rubber coated fabric and other materials under normal temperature conditions.
Comply with GB/T13934,JIS K6301,ASTM D813, D430, ISO 132 and other standards
Technical parameters:
A. Test piece: 154×25±1×6.3±0.15mm
B. Maximum clip spacing: 75 +1 mm
C. Reciprocating stroke: 57 + 0.5mm
C. Test speed: 300±10 times /min （preferably stepless speed regulation）
D. Counter: LCD liquid crystal display 0 —— 999,999
E. Number of work stations: 12 groups
Send product request
Other supplier products
 |
Car wire heat resistant water (salt water) testing machine | Scope of application: It is suitable for long-term （more than 14 days） DC voltage and salt water resistance test of automobile wire and locomotive... |
 |

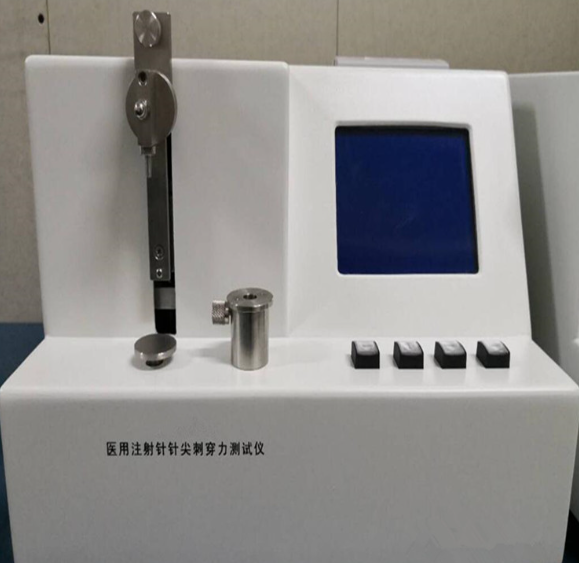

Medical injection needle tip puncture force tester | Product characteristics Using 7-inch K600+ core/dot-matrix 65 color 800*480 resolution touch screen display, PLC control system dynamically d... |
 |

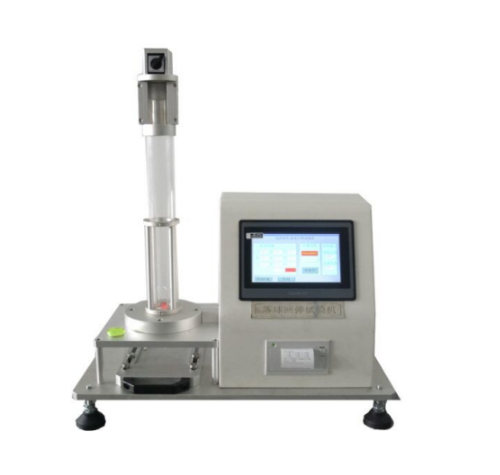

Drop ball rebound tester | Main application scope and functions: This machine is designed and manufactured according to GB/T6670-97. It is suitable for determining the falli... |
 |
