Durability Tester for Automotive Wire Markings

•

Test Standard:

Complies with the ISO19642 standard.

Test Method:

For the durability tester of automotive wire markings, fix a wire approximately 300mm long on the machine table with the printed part facing upward. Use a friction hammer equipped with wool felt to rub the printed part with a certain load, speed, and reciprocating stroke, so as to check the fastness of the printed part. It can also be used to test the fastness of the printed characters on the plastic surface.

Main Parameters:

1. Friction speed: 10 - 40 C.P.M, adjustable as desired. 2. Friction distance: 250mm 3. Load: According to ISO19642: 10±1N 4. Wool felt: According to ISO19642: 50X50X3mm, (75% wool, 25% fiber) 5. Test groups: Three groups, which can test three samples simultaneously. 6. Spare parts: 15 pieces of wool felt (50X50X3mm (75% wool, 25% fiber)) 7. Counter: Six - digit, up to 999999 8. Motor: 40W 9. Power supply: 220V/50Hz

Other supplier products

	Automobile wire bellows drag grinding machine	Applicable standards: ISO 6722, QC/T730, JIS C 3046, JASO D 611, SAEJ1128-2005, JBT 8139,TBT 1484.1-2001 Part1, EN50305, EN50306 and other standar...

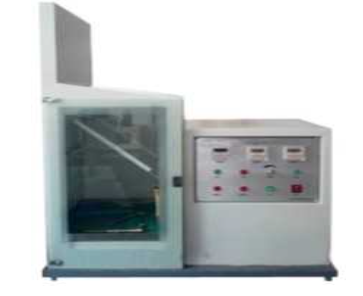

	Fabric Flame Retardant Tester	A method is used to determine the damaged area and the length of the damage when the textiles and other materials are burned at 45 °, and the B...
	Car wire heat resistant water (salt water) testing machine	Scope of application: It is suitable for long-term （more than 14 days） DC voltage and salt water resistance test of automobile wire and locomotive...
	Automobile Wire Adhesion Tester	### Main Parameters 1. Capacity: 50kg 2. Test stroke: 400mm 3. Speed: 10 - 300mm/min 4. Power system: AC servo motor 5. Volume: 80X60X170(cm) 6. We...

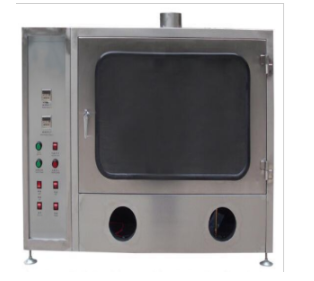

	Flammability Tester for Automotive Wires	Applicable Standards: Requirements of QC/T703 - 2005, SAE - J 1128 - 2005, DIN 72551, ISO6722 and other standards Main Parameters: 1) The test...
