Syringe sliding performance tester
Product introduction
Using a 5.7-inch （120x90） single-color LCD touch screen, the Chinese menu display,
and the keyboard to select the nominal capacity of the syringe, real-time display of starting
force, average force, push back maximum force, push back minimum force and core rod
movement and force record chart, and the on-board printer printed test results.
The special tester for syringe sliding performance is composed of intelligent controller,
force measuring mechanism, distance measuring mechanism, printer and so on. Among them,
the intelligent controller is composed of CPU, motherboard, LCD screen, keyboard, power
supply and other parts. The screen is displayed in all Chinese Windows, and the keyboard is
used to control the cursor for options, operations and Settings.
Technical parameters
1. Environment
（1） Operating temperature :5——40℃
（2） Relative humidity :（45——80）%
（3） Power supply voltage :220V±22V
（4） Power grid frequency :50HZ+1HZ
2. Display mode
（1） 320x240 single color LCD display, all Chinese window display.
（2） Use the keyboard to control the menu on the LCD screen and the analog keyboard
on the LCD screen
3. Power consumption :200W
4. Instrument loading range :0——40N, accuracy :±0.1
5. Experimental speed :100mm/min±5mm/min
Partial list
1. One host
2. Printer paper 1 roll
3. A set of fixtures
4. Set weights
5. One year warranty
6. Operation instructions
7. Instrument lifetime free upgrade service in accordance with national standards
Send product request
Other supplier products
 |
Vibration and Abrasion Resistance Tester for Automotive Wire-to-Wire | In terms of main parameters: The vibration frequency of the vibrating table is 10Hz, the amplitude is 6.35±0.25mm, and the vibration directi... |
 |

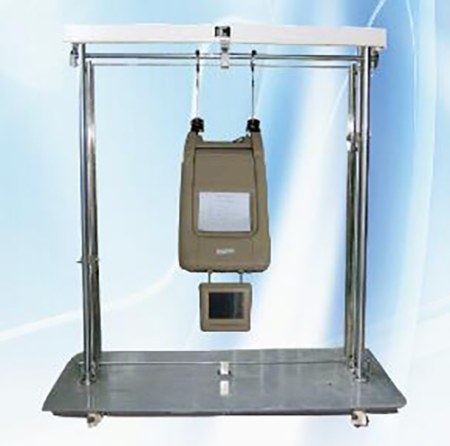

Car seat center of gravity measuring tester | Main parameters: Measuring range: refers to the maximum and minimum range of the center of gravity of the seat that the tester can measure. This p... |
 |

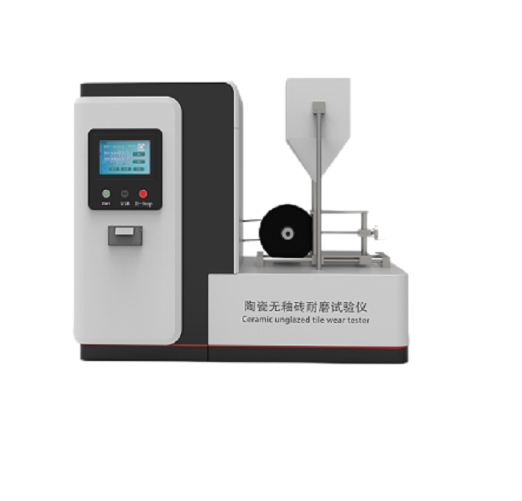

Ceramic tile unglazed wear tester | Applicable standards: GB/T 3810.6-2016: This standard specifies the test method for the wear resistance of unglazed bricks, which is suitable for ... |
 |
Dry fallen wadding tester G275 | G275 Dry fallen wadding tester, The tester is used to evaluate the fallen wadding test of non-woven fabrics under dry conditions, and is mainly app... |
 |

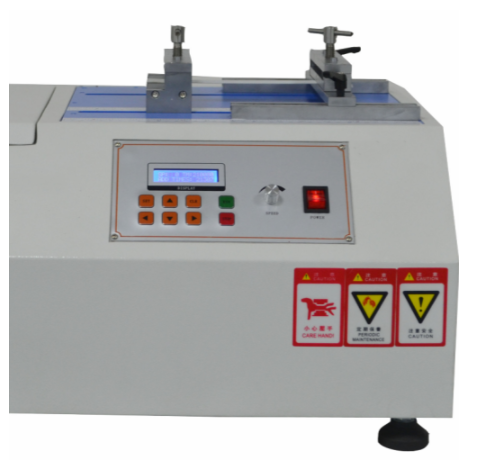

Elastic fatigue testing machine | Product Introduction: This instrument is used to test the elasticity of elastic belt after reciprocating movement. Product Specifications: 1. ... |
