Glove Cut Resistance Tester
Product Introduction:
The machine is used to test the cutting resistance of gloves. Under the specified load, the blade cuts the sample to measure the cutting resistance of gloves. Widely used in fire research institute, fire gloves production enterprises, national quality inspection units.
Main technical parameters:
1, blade: stainless steel blade, hardness is not less than HRC45, the cutting edge length should not be less than 65mm, the width should not be less than 18mm, the thickness of （1.0±0.5）mm, the width of the blade bevel is （2.5±0.2）mm, the Angle of the cutting edge is 22°
2, weight bracket: the sum of its quality and blade quality should not be greater than 200g
3, Tool holder: The Angle between the blade plane and the long shaft of the sample fixture is （90+2）。 The Angle between the cutting edge and the short shaft of the sample fixture is （90+2）。
4, sample fixture: the surface of the arc type of metal fixture, arc radius of （38±05）mm, length should not be less than 110mm, width should not be less than 32mm
5, support frame: can ensure that the sample fixture at the specified rate along the direction of the blade edge
dynamic
6, sample size :50mmx50mm
7,Power supply :AC220V 50Hz 4kW
Meet the standard:
GB/T8965-2009 "Protective clothing flame retardant protection Part 1 Flame retardant clothing"
GA7-2004 Fire gloves
Send product request
Other supplier products
 |
Mask synthetic blood penetration tester | Standards: GB 19083-2010 Technical requirements of medical face masks - Anti-penetration property of 5.5 synthetic blood. YY/T 0691-2008 Clothin... |
 |
Safety Helmets Impact and Penetration Resistance Tester | Standard GB/T 2811-2019(China’s national standard for helmet safety and impact resistance) GB/T 2812-2006/XXXX(Testing methods for impact a... |
 |

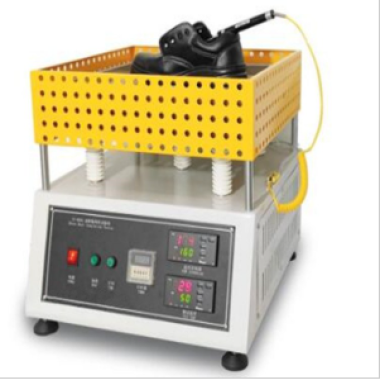

Shoe heat insulation testing machine -- sand bath/ Sand Bath Thermal Conductivity Tester / Shoe Heat Insulation Tester | Standard GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure. EN ISO 20344: European standard f... |
 |
