Solids Spontaneously Igniting Tester

Conforms to the UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 33.3.1.4 Test N.2: Test Methods for Pyrophoric Solids and GB/T 21611-2008 Test Methods for Spontaneous Combustion of Flammable Solids for Dangerous Goods.

Applications

This testing instrument is a professional instrument used to test whether solid substances can burn when in contact with air, which greatly facilitates the supervision of the production and transportation of shipped solid substances.

Standards

GB/T 21756-2008:Chemical products for industrial use - Determination of the relative autoignition temperature of solid substances

NF T:Determination of the autoignition temperature of solid substances

NY/T 1860:Guidelines on the determination of physico-chemical properties of pesticides

Features

1. It adopts an embedded processor and the Windows CE operating system.

2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3. It is equipped with a nanosecond - level photosensitive sensor detection module to detect light intensity changes.

4. The instrument is mainly composed of a test stand and a control part, which can automatically determine whether the test substance is burning.

5. During the test, if the substance burns, or when the test time is up and the substance has not burned, the device will automatically alarm to remind the operator that the test is over.

6. It is equipped with an automatic shaking and dropping device for quick and thorough sample loading.

7. It is equipped with a low - thermal - conductivity marble experimental base, which has a long service life and is easy to clean.

8. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.

Technical Parameters

Operating environment	(5～40)℃，<85%RH
Timing range	(0～999)s
Timing display resolution	1s
Drop height	1m
Flame detection response time	≤6ms

Accessoriess

1. Core Operating Components

Test Environment Components: Sealed test chamber (provides a spontaneous combustion test environment for solid samples in contact with air, conforming to UN Test N.2/GB/T 21611-2008 requirements);

Sample Carrier: Standard sample placement device (suitable for loading samples for spontaneous combustion tests, ensuring full contact between the sample and air);

Detection Module: Nanosecond-level photosensitive sensor detection module (accurately captures changes in light intensity and identifies spontaneous combustion phenomena in samples);

Control and Display Components: Embedded processor (equipped with Windows CE system), 8-inch LCD touchscreen (real-time display of test status);

System Unit: Automatic control module (supports fully automated operation of the test process).

2. Auxiliary Components

Sample Processing Components: Analytical balance (quantitatively weighs the solid sample to be tested), grinder + standard sieve (processes sample particle size to match test standard requirements);

Calibration and Maintenance Components: Standard spontaneously combustible solid sample (calibrates instrument detection accuracy), cleaning brush/cotton swab (cleans residue from the test chamber);

Data Management Components: USB flash drive (exports test data, status records, and reports).

Test Procedures

1. Sample Preparation

Grind the solid sample to be tested and pass it through a standard sieve to ensure uniform particle size (meeting the sample pretreatment requirements of GB/T ; Weigh the specified amount of sample using an analytical balance for later use.

2. Instrument Preparation

Connect the power supply and start the instrument. The embedded processor will automatically complete a self-check; Select the test standard (e.g., “UN Test N.2” or “GB/T 21611-2008”) via the 8-inch touchscreen to confirm that the nanosecond-level photosensitive sensor and test chamber are functioning correctly.

3. Sample Loading and Chamber Setup

Place the weighed sample into the standard sample carrier and place the carrier into the sealed test chamber; Close and lock the test chamber (ensuring normal contact between the chamber and outside air, meeting the air environment requirements for spontaneous combustion testing).

4. Starting the Automatic Test

Click “Start” on the touchscreen. The instrument will begin the test process, and the nanosecond-level photosensitive sensor will monitor changes in light intensity in real time; The touchscreen will simultaneously display the test status (e.g., test duration, light intensity data).

5. Spontaneous Combustion Detection and Data Recording

If the photosensor detects a sudden increase in light intensity (corresponding to spontaneous combustion of the sample), the instrument automatically records the time of spontaneous combustion and related parameters.

If no abnormal light intensity is detected within the test duration, record "Sample did not spontaneously combust."

6. Test Completion

After the test, allow the test chamber to cool down, open the chamber and remove the sample carrier.

Clean any residue from the test chamber using cleaning tools, and export the test data to a USB flash drive via the touchscreen.

Turn off the instrument power to complete the operation.

Other supplier products

	In-situ expansion analysis system	Standard ASTM E83: Standard Test Method for Verification of Linear Displacement Measuring Systems ISO 12417-1: Mechanical Testing of Metals &nd...

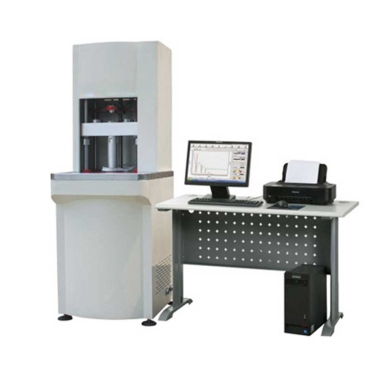

	Athletic Footwear Shock Attenuating Tester	The Athletic Footwear Shock Attenuating Tester is primarily used to test the shock energy absorption performance of single materials or material st...
