Floor Caster Wear Tester

The Floor Caster Wear Tester is designed to evaluate the wear resistance of chair casters on various floor coverings, including resilient and laminated surfaces. By simulating real-world rolling and rotational movements, the instrument provides accurate assessment of caster performance and flooring durability. It is widely used in furniture manufacturing, flooring production, quality control laboratories, and research institutions.

Application

(1) Testing the wear resistance of chair casters on resilient floors.

(2) Evaluating caster performance on laminated floor coverings.

(3) Simulating repeated rolling and rotation of casters to assess floor durability.

(4) Quality control in office furniture manufacturing.

(5) Research and development of floor coverings and caster wheels.

(6) Comparative testing of different caster wheel materials and hardness.

(7) Assessment of floor coating longevity under repeated caster load.

(8) Testing of caster performance under variable load conditions.

Standards

(1) GB/T 11982.2 – Floor covering castor wear test method.

(2) GB/T 4085 – Resilient flooring wear resistance testing.

(3) BS EN 425 – Resilient floor coverings – Determination of resistance to wear by use of a caster.

(4) ISO 4918-2009 – Resilient floor coverings – Determination of wear resistance by castor chair.

(5) ASTM D6962 – Standard Test Method for Resistance of Floor Coverings to Chair Casters.

(6) BS EN 425-2002 – Chair caster testing on floor coverings.

(7) BS EN 985-2001 – Performance requirements for castor testing.

(8) ISO 10581-2011 – Resilient floor coverings – Specifications and testing.

(9) ANSI-NALFA-LF-01-2008.3.6 / ANSI-NALFA-LF-01-2011 – North American laminate flooring castor wear standards.

Features

(1) Standard Compliance: Fully complies with national and international standards for caster wear testing.

(2) Adjustable Load: Allows simulation of different caster weights up to 1500 lb (≈680 kg).

(3) Rotary Mechanism: Provides controlled rotation and movement for precise wear simulation.

(4) Flexible Platform: Floor replacement base is adjustable to accommodate different floor sizes.

(5) High Precision: Accurate caster spacing and rotation angles ensure repeatable results.

(6) Durable Construction: Robust frame and components suitable for laboratory and production testing.

(7) Automated Operation: The machine can stop automatically after the set test time or number of rotations.

Parameters

Parameter	Specification
Host size	Length 1500mm × Width 1700mm × Height 1620mm
Floor replacement base	1350mm × 1350mm (adjustable)
Rotary diameter	950mm
Total load	0–1500 lb (≈0–680 kg)
Rotary lifting distance	400mm
Rotation speed	0–60 RPM, platform speed 19 ±1 r/min
Rotation cycle	180 ±10 s, stationary 5 ±2 s, then reverse
Turntable counting range	<1,000,000 revolutions
Turntable tooling card number	3
Caster wheel diameter	￠50 ±2 mm
Caster wheel width	23 ±3 mm
Crank distance	32 ±2 mm
Wheel hardness	Shore A 95 ±5
Distance from caster to platform	198 ±1 mm
Distance between three casters	130 ±1 mm, spacing 120°, installation distance 225 ±5 mm

Accessories

(1) Host machine

(2) Floor replacement base

(3) Turntable tooling cards (3 sets)

(4) Caster wheels

(5) Power supply cable

(6) User manual

Test Procedures

(1) Place the floor covering (resilient or laminated) onto the test platform.

(2) Install the casters on the turntable according to specified distances and spacing.

(3) Set the total load on the turntable to simulate real-life caster weight.

(4) Adjust the rotation speed and cycle parameters according to testing requirements.

(5) Start the machine; it will rotate the casters and move the platform according to the preset program.

(6) Upon completion of the test, stop the machine and remove the floor covering and casters.

(7) Inspect the flooring surface and caster wheels for wear and deformation.

(8) Record and analyze the results for product quality evaluation.

Maintenance Information

(1) Regularly inspect casters, turntable, and platform for wear or damage.

(2) Clean the platform and turntable after each test to remove debris.

(3) Check rotation mechanisms and bearings for smooth operation and lubricate as needed.

(4) Inspect electrical connections and control panels periodically for safety.

(5) Store the machine in a dry, clean environment when not in use.

(6) Follow operational safety procedures to prevent injury during testing.

Other supplier products

	Intramedullary Nails Internal-fixation Pull-out Force Tester	Standard ASTM F543: Standard specification for metallic medical bone screws (dynamic loading protocols). ISO 12172: Implants for surgery—Pa...

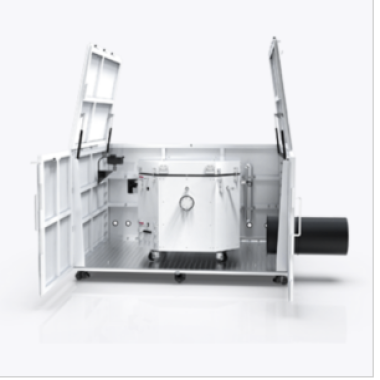

	Battery Adiabatic Calorimeter	Battery adiabatic calorimeters play a crucial role in battery research and development, providing essential thermodynamic data for safety assessmen...
