Catheter Balloon Inflation Diameter Tester

The Catheter Balloon Inflation Diameter Tester is a precision device widely used in the medical field, specifically designed to measure and test the diameter of endotracheal tube cuffs after inflation.

Applications

The catheter cuff inflated diameter tester is mainly used to measure the diameter of the cuffs of medical devices such as endotracheal tubes and tracheostomy tubes after inflation. This measurement is crucial for ensuring the safety and effectiveness of medical devices during use. By accurately measuring the inflated diameter of the cuff, it can help medical staff determine the appropriate amount of inflation. This aims to effectively seal the airway, prevent gas leakage and the aspiration of secretions into the airway, while also avoiding excessive pressure on the tracheal wall. In addition, this tester also helps to reduce complications such as tracheal mucosal injury, ischemia, and necrosis caused by excessive cuff pressure, improving the safety and effectiveness of endotracheal intubation.

Standards

ISO 5367：Medical devices — Connectors for breathing system tubes

YY 0337.1-2002:Endotracheal Intubation Part 1: Common Types of Endotracheal Tubes and Connectors

GB/T 15812.1-2005:Disposable sterile catheters — Part 1: General requirements

YY 0321.1-2009:Tracheostomy Tubes Part 1: Tracheostomy Tubes for Adults

YY/T 0321.2-2021:Tracheostomy Tubes Part 2: Tracheostomy Tubes for Pediatric Use

YY 0321.3-2009:Tracheostomy Tubes Part 3: Tracheostomy Tube Caps and Plugs

YY 0285.6:Disposable sterile intravascular catheters — Part 6: Central venous catheters

Features

Supports three test methods: balloon inflation diameter test, catheter collapse test, and balloon protrusion test.

• Embedded high-speed microcomputer chip control and a simple and efficient human-machine interface provide users with a comfortable and smooth operating experience.

• Equipped with a pressure test tank, capable of handling both gas and liquid, enabling various testing functions.

• Features a dedicated test interface, suitable for various Luer, barbed, and conical connectors.

• Equipped with branded pressure and flow control knobs for convenient operation.

• Overpressure safety protection and power-off memory ensure system stability during testing.

• Configured with a standard RS232 communication port for easy external connection and data transmission between the system and a computer.

• English and Chinese interfaces are freely switchable.

Technical Parameters

Parameter	Specification
Testing Range	Usually covers a pressure range of 0 - 10 kPa (or 0 - 1.45 psi) to meet inflation requirements of different cuffs
Accuracy	High accuracy (e.g., 0.5%FS full-scale error) to ensure test result accuracy
Air Source Pressure	Generally does not exceed 0.7 MPa; air source needs to be provided by the user
Air Source Interface	Usually a Φ8 mm polyurethane tube, for easy connection to air source equipment
External Dimensions	Compact design for portability:- Main unit: ~300 mm(L)×410 mm(W)×150 mm(H)- Device: ~215 mm(L)×215 mm(W)×240 mm(H)
Weight	Moderate (about 25kg) for easy handling and operation
Testing Principle	Adopts positive-pressure testing principle: Inflates the cuff with air to stretch/unfold wrinkles (minimizing cuff wall tension), then measures the inflated diameter

Accessoriess

Standard configuration: Main unit, hydraulic tank, miniature printer, customized connectors

Note: The air source interface of this machine is a Φ8 mm polyurethane tube; the air source must be provided by the user.

Test Procedures

1. Preparation
Ensure the measuring instrument is correctly installed and calibrated, and prepare the necessary endotracheal tube and cuff.
2. Connection
Connect the endotracheal tube to the sensor of the measuring instrument, ensuring a tight, leak-free connection.
3. Inflation
Inflate the cuff while observing the diameter value displayed on the measuring instrument.
4. Adjustment
Adjust the pressure within the cuff to the appropriate range based on the displayed diameter value.
5. Use
Once the adjustment is complete, the endotracheal tube can be inserted into the patient's airway, and the appropriate procedures can be performed.
6. Recording
During use, promptly record the diameter value displayed on the measuring instrument, as well as the corresponding operating steps and time.

Other supplier products

	Photovoltaic module wire tube bending testing machine	Standard IEC 61730-2:2004: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing CE Certification(Conformité Euro...
	Haze meter	Standard The Haze Meter STDYH40 adheres to global standards includingASTM D1003/1044,ISO 13468/14782,JIS K7105, andGB/T 2410, ensuring compliance ...
	Environmental Stress Cracking Resistance Tester	Standard ASTM D1693: Exclusively designed for bending beam and constant load tests on polyethylene and other thermoplastics. ISO 22088-3: Configu...
	Konan Tester	Product Description Conforms to the UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 11.5.1 Test 1(b): Kernan...

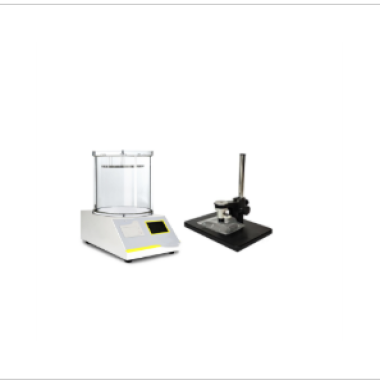

	Bubble Leak Tester	The Bubble Leak Tester utilizes a positive pressure testing principle and is suitable for the quantitative measurement of sealing strength, heat se...
