Paper ring compression strength tester
Product Information:
Intelligent cardboard edge compression strength tester, also known as computer measurement and control compression tester, cardboard compression tester, electronic compression tester, edge pressure meter, ring pressure meter, is the basic instrument for cardboard/paper compressive strength testing （that is, paper packaging testing instrument）， equipped with a variety of fixture accessories can test the ring compression strength of base paper, flat compression strength of cardboard, edge compression strength, bonding strength and other tests. In order to paper production enterprises to control production costs and improve product quality.
Implementation standards:
GB/T 2679.8-1995 "Determination of ring compression strength of paper and board"
GB/T 6546-1998 "Corrugated cardboard edge pressure strength determination"
GB/T 6548-1998 "Determination of the bonding strength of Corrugated cardboard"
GB/T 2679.6-1996 "Determination of flat compression strength of Corrugated base paper"
GB/T 22874 "Determination of flat compression strength of single-sided and single-corrugated cardboard"
Main parameters:
Measuring range: ≤2000N
Unit switching: N, kN, kgf, gf, lbf
Test speed: 12.5 2.5mm/min（or can be set according to customer requirements）
Disc size: 100X 100mm（can be customized according to customer requirements）
Upper and lower disc spacing: 80mm（can be customized according to customer requirements）
Volume （approx.） : 350X 400X 550mm
Power supply: AC220V+10%2A 50Hz
Weight: 65kg
Send product request
Other supplier products
 |
Photovoltaic module backplane peeling strength testing machine | Introduction: The Photovoltaic Module Backplane Peeling Strength Testing Machine is a specialized device designed to evaluate the peeling strength... |
 |
MARK-II anti-slip testing machine | Paste the cut sample on the test fixture of the portable MARK-II anti-slip testing machine, put down the weight of the rotating support frame on th... |
 |
High - speed Pellet Impact Testing Machine for Helmet Goggles | High - speed Pellet Impact Testing Machine for Helmet Goggles - Flammability Testing equipment price quotation - standard Standards: SNELL SA/K... |
 |

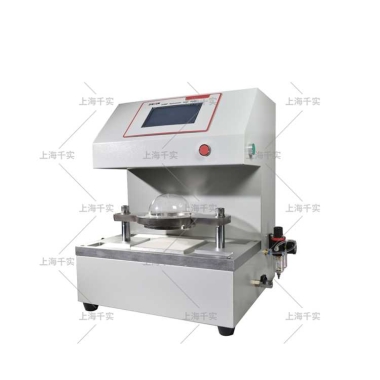

hydrostatic head testing equipment/ Hydrostatic Pressure Tester / Water Pressure Resistance Tester | Hydrostatic head testing equipmentIntroductionThe hydrostatic head tester is designed to test the pressure that the material does not come into con... |
 |
