High Acceleration Shock Test System / Shock Test Machine
Applications:
The size of the impact test bench is small, and the bench structure is carefully designed after finite element optimization analysis. The structure is strong and the frequency response is high. Through the high acceleration impact test, it can reach the acceleration duration of 0.3ms, and the impact half-sine wave conforms to the test specification.
Product Information:
The size of the impact test bench is small, and the bench structure is carefully designed after finite element optimization analysis. The structure is strong and the frequency response is high. Through the high acceleration impact test, it can reach the acceleration duration of 0.3ms, and the impact half-sine wave conforms to the test specification.
Built-in anti-secondary impact device, the table body is equipped with high-efficiency damping device, and the impact height is digitally set and executed automatically.
Specifications:
Maximum load: 100kg
Impact peak acceleration range: Half sine wave: 150～6000m/s²
Pulse duration:Half sine wave: 0.5～30ms
Impact waveform: Half sine wave
wave description difference:
a) When the pulse duration is less than or equal to 3ms, the peak acceleration tolerance is ±20%; the pulse duration tolerance is ±15%;
b) When the pulse duration is> 3ms, the waveform tolerance should be within the range specified by the standard.
Standards compliant: Requirements of GJB150. GJB360. GB2423.
Power consumption: 5.5KVA
Working conditions:
A.Power supply voltage: 380V±10% AC50Hz
B.Ambient temperature: 0℃-40℃
C.Relative humidity: ≤90% (25℃)
D.Surrounding environment: no corrosive medium, dry and ventilated,Electromagnetic field interference and strong vibration sources that affect normal operation.
Send product request
Other supplier products
 |
Automatic Cross-Hatch Tester | Standards Automotive Standards: PV 3952. Ford BN 108-03. BMW 0180. DAF KEUR 00824-401. GME 60401. GM 14829. Jaguar-Landrover TPJLR.52.00. GM N 146... |
 |
Fabric horizontal burning tester/ Flammability Tester | Standard QB/T 2729: Leather – Horizontal flammability test for physical and mechanical properties. ASTM D5132: Horizontal burning rate of p... |
 |
Photocatalysis Illumination Apparatus JIS r1702 | Applicable standards: JIS r1702 / New ceramics - Antibacterial activity test and antibacterial effect of antibacterial processed products under li... |
 |
Geosynthetic Transmissivity Tester丨Geotextile Test Machine | Scope of application: It is used to measure the characteristics of the plastic drainage plate in the plane direction of the water flow under the s... |
 |

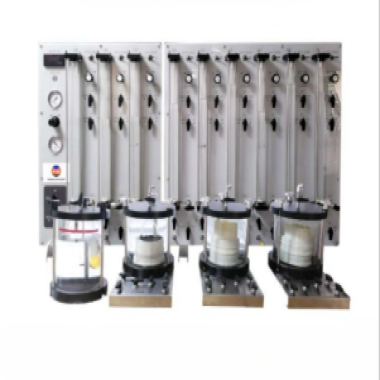

Bentonite waterproof blanket permeability tester丨Geotextile Test Machine | Scope of application: Used to determine the permeability coefficient of bentonite waterproof blanket under specified pressure and time conditions.... |
