MARK-II Slip Resistance Tester ASTM F1677
Product Introduction:
Paste the cut sample on the test fixture of the portable MARK-II anti-slip testing machine, put down the weight of the rotating support frame on the test fixture, so that the test piece is pressed on the floor interface by a fixed force, and tilt the rotating support frame of the portable MARK-II anti-slip testing machine, so that the horizontal thrust subjected to the test piece is gradually increased. Until the test piece slides instantaneously. The value of friction coefficient that should be dealt with before the sole test piece slides instantaneously is the large static friction coefficient of the test sole on the floor interface, that is, the anti-slip coefficient.
Reference standard:
ASTM F1677 and other standards
Product Advantages:
Measures Key Safety Property: Quantifies the static coefficient of friction, a critical indicator of pedestrian slip resistance.
Standard Compliant: Designed to meet standards like ASTM F1677. ensuring tests are conducted according to recognized procedures.
Portable Design: Allows for convenient in-situ testing on actual flooring surfaces in various environments.
Provides Quantitative Result: Delivers a numerical value for the anti-slip coefficient.
Relatively Simple Operation: The test principle of applying load and increasing horizontal force until slip is straightforward.
Suitable for Floors and Sole Materials: Can be used to evaluate both flooring surface characteristics and the slip properties of footwear sole materials.
Product Features:
Based on the provided description and typical portable static friction testers:
Test fixture or shoe to hold the test sample.
Weight system to apply a fixed normal load (10 lbs).
Rotating or tilting support frame mechanism to apply and gradually increase horizontal thrust to the test sample.
Sensor or gauge to measure the horizontal force at the point when the sample begins to slide.
Mechanism to calculate the static coefficient of friction from the measured forces.
Designed to be portable for easy transport and use in different locations.
Accommodation for specific sample dimensions (76mm x 76mm).
Requires a stable, horizontal surface for accurate testing.
Technical specifications:
1. Sample size: (76±1)*(76±1)mm.
2. Load: 10IBS.
3. Floor requirements: horizontal floor.
4. Volume: 40*22*39cm.
Send product request
Other supplier products
 |
Rotary Rubbing Color Fastness Tester (Crockmeter) | Application： Rotary Rubbing Color Fastness Testing Machine(rotary color fastness tester) used for printed fabric, textile printing and dyeing indu... |
 |
Yellowing resistance test chamber | Durable & Reliable | Applicable standards HG/T3986. ASTM D1748. etc. Scope of application Test method for determining the yellowing resistance of light and white pro... |
 |
Foam Repeated Compression Tester / Foam Compression Testers - Durable & Reliable Solutions | Product Description: Foam repeated compression testing machine will accurately measure the thickness of the test piece, placed in the compression ... |
 |
Film impact tester ISO 6272 | Product Introduction The film impact testing machine, through the hemispherical punch at a certain speed, impacts and passes through the film samp... |
 |
Geomembrane Environmental Stress Cracking Resistance Tester | Scope of application: The stress cracking strength of polyolefin geomembrane was measured and evaluated by notch constant load tensile test. Durin... |
Same products
 |

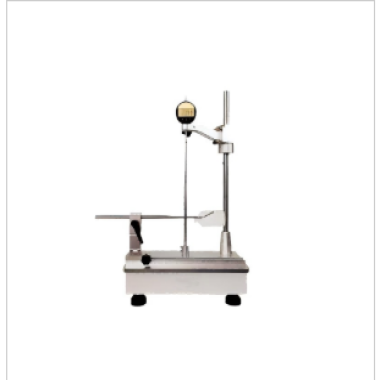

Bottle Wall and Bottom Thickness Tester | Seller: Standard International Group (HK) Limited | The wall and bottom thickness tester for bottles is a measuring instrument widely used in the pha... |
 |

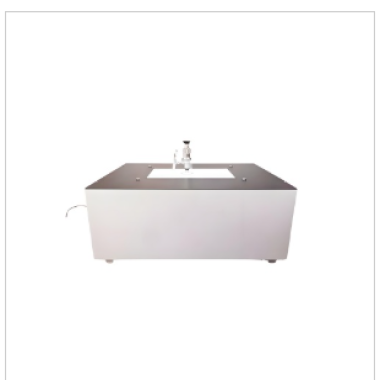

Pinhole Tester / Pinhole Testing Equipment | Seller: Standard International Group (HK) Limited | The pinhole tester for aluminum foil is a device specifically used to detect micro - pinholes in ... |
 |

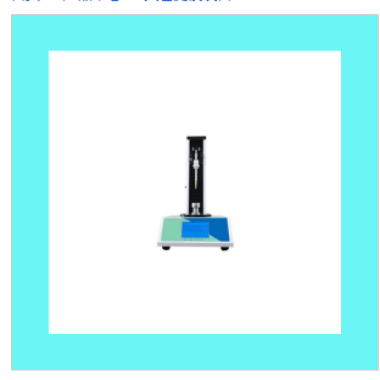

Cork Puncture and Chip Detection Instrument | Seller: Standard International Group (HK) Limited | The rubber stopper puncture debris detector is a device specifically used to detect the number of... |
 |

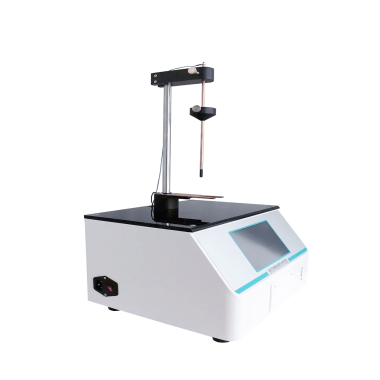

Aluminum Ointment Tube Toughness Tester | Seller: Standard International Group (HK) Limited | The ductility tester for aluminum tubes is a device specifically used to detect the ductility ind... |
 |

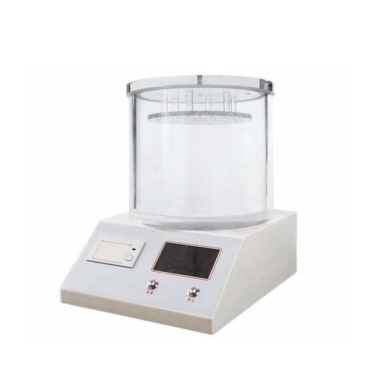

Vacuum leak tester / Vacuum leak instrument | Seller: Standard International Group (HK) Limited | Vacuum Decay Leak Tester specializes in the detection of leaks in ampoules, vials, injection bott... |
