Oxidation Induction Phase Analysis Tester / Oxidation Induction Tester
Differential Scanning Calorimeter DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature, melting point, cold crystallization, crystallization, phase transition, Enthalpy, oxidation induction time (OIT).
Meet the standard
GB/T17391-1998
ISO/TR10837:1991
ASTM D3895-1998
ASTM E 967
ASTM E 968
ASTM E 793
ASTM D 3895
ASTM D 3417
ASTM D 3418
ISO 11357-6
EN 728
Scope of application
It is used to determine the time of automatic catalytic oxidation of the sample at room temperature hydrogen, and to evaluate the thermal stability of the sample. It is suitable for plastics and rubber materials.
Instrument features
The instrument has stable performance, high measurement accuracy and good repeatability;
Designed for measuring oxidation induction period in plastics and rubber industry:
* Integrated design, temperature control and furnace device are integrated, reducing signal loss and interference, beautiful and exquisite appearance;
The furnace body adopts the upper cover structure, no need to lift, convenient loading sample;
* High-resolution data acquisition system, real-time data acquisition;
Intelligent adaptive single-chip microprocessor temperature control system, temperature control speed, high precision:
* Perfect two-way air valve control system, using the original imported flow valve from the United States, can realize the automatic switching of ammonia to oxygen during the measurement process;
Professional oxidation induction period test software with automatic temperature correction and automatic test program to automatically calibrate temperature, test oxidation induction time and plot curves:
Simple operation method, to achieve one-click testing, test results can be saved and printed:
Computer real-time display instrument status, test data and curves, easy to view.
Technical parameters
DSC ranges ±10.+20.+40.±100.+160.±200mW can be automatically switched
The temperature ranges from RT to 500 ° C
Temperature accuracy ±0.1 ° C
Heating rate 1——30'Cmin
Gas supply system Automatic switching of ammonia and oxygen (gas cylinders need to be prepared)
Automatic gas flow rate control
Air source pressure 0.2MPa
The material of the crucible is very low
Power supply AC 220V 50Hz
Overall dimensions 400x350x280mm
Weight 10kg
Send product request
Other supplier products
 |

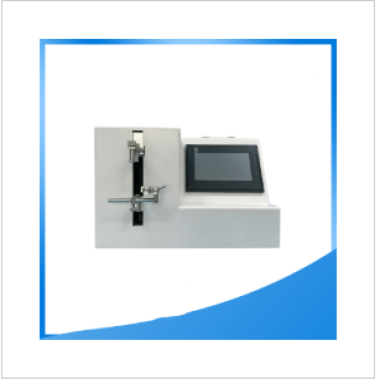

Stapler Blade Sharpness Tester YY/T 1797 | The Sharpness Tester for Stapler Blades plays a crucial role in the medical device field. The following is a detailed introduction to its complianc... |
 |
