Vertical low temperature cold resistance testing machine / Vertical low temperature cold resistance tester
Product description:
This machine is used to test finished shoes, rubber, plastic, soles, synthetic leather and other cold resistance degree to understand the material or finished products to adapt to low temperature climate or cold areas, this machine is made of stainless steel and can be installed with a variety of resistant fixtures to apply to different requirements.
Standards:
ASTM-D1790. D1593.1052. JIS-K6545. HB-T2877. CNS-7705. ISO 20344. GB/T20991-2007
Product Specifications:
1. Inner and outer box material: stainless steel #304
2. Controller: touch screen control
3. Temperature range: (1) normal temperature -30℃ (2) normal temperature -50℃(optional)
4. Optional inner box action: leather flex fixture (optional to install finished shoes with bending resistance, outsole zigzag resistance fixture)
5. Protection device: thermal protection stop, leakage protection stop overtemperature protection, overload protection and other functions
6. Control accuracy: ±0.3℃
7. Distribution uniformity: ±0.1℃
8. Cooling speed: from room temperature to -30℃
9 Refrigerant: R404 environmental refrigerant
10. Compressor: original fully hermetic
11. Compressor starting delay: 5min
12. Power consumption: (4-6)KW
13. Insulation material: rigid foam and glass wool
14. Counter: LCD,0——999.999
15. Window: (210×35×270)mm, two vacuum layer
16. Window light: P1 light,5W
17. Power supply: AC380V 50Hzor1 AC220V 50HZ
18. Motor: no belt multi-import gear reducer motor
19. Inner box size: (600×600×550) mm
20. Volume: (110×105×160) cm
21. Weight: 200kg
Send product request
Other supplier products
 |
Leather water vapor permeability tester | Water Vapour Permeability Tester | Productinformation The vaporpermeability of leather is evaluated by means of measuring the weight of water-vapor that permeates to specimen peruni... |
 |
Leather thickness tester | Digital Leather Thickness Gauge | Product Introduction Leather thickness tester is a special high-precision instrument for leather thickness measurement, which can be widely used f... |
 |

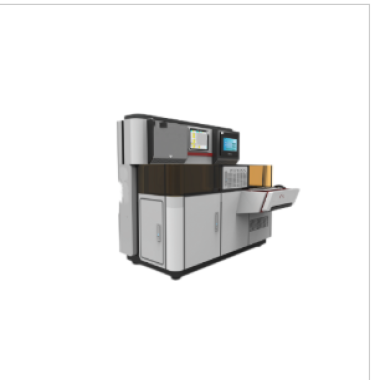

Guidewire Pushing Force Tester ASTM F | Standards YYT0807 - 2010 YY/T0663.2 - 2016 ASTMF2394 - 2007 Main Uses The guidewire pushing force tester is a precision testing tool in the med... |
 |
