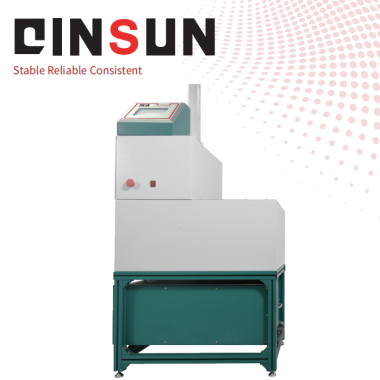

Rain Tester
Standard
- AATCC 35: Water Resistance: Rain Test for Fabrics
- BS EN ISO 22958: Textiles – Determination of Resistance to Water Penetration – Rain Test
- GB/T 23321: Textiles – Testing and Evaluation for Water Repellency
Product Advantages
- Realistic Simulation: Mimics horizontal rainfall (60–240 cm water column) to evaluate fabric water repellency under dynamic conditions.
- Precision Control: PLC + touchscreen automation ensures stable water pressure (±1.5 cm accuracy) and liquid level consistency.
- Versatile Testing: Suitable for umbrellas, raincoats, protective clothing, and industrial composites.
- Data Accuracy: Measures absorbent paper weight gain post-test for quantitative water repellency analysis.
- Energy Efficient: 1000W heating system maintains water temperature (±1°C uniformity).
- User-Friendly Design: Large reservoir (40L) reduces refill frequency; tap/distilled water compatible.
Product Features
- Horizontal Spray System: 13 nozzles (φ0.99mm) simulate directional rainfall at 305mm from the sample.
- Adjustable Water Column: 60–150 cm (standard) or 60–240 cm (extended) pressure range.
- Stainless Steel Construction: Corrosion-resistant inner groove for vertical sample fixation.
- Automated Replenishment: Algorithm maintains constant water level for consistent pressure.
- Sample Compatibility: Fits 40mm × 285mm × 190mm material sizes (e.g., fabrics, laminates).
- Safety & Compliance: Overheat protection, emergency stop, and CE certification.
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Water Column | 60–150 cm (±1.5 cm) / 60–240 cm (Extended) |
| Water Temperature | 20°C ±1°C (Adjustable) |
| Control Mode | PLC + 7-inch Touchscreen |
| Nozzle Quantity/Size | 13 pcs, φ0.99 mm |
| Nozzle-to-Sample Distance | 305 mm |
| Sample Holder Size | 40 mm × 285 mm × 190 mm |
| Reservoir Capacity | 40 L (Tap/Distilled Water) |
| Heating Power | 1000 W |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 810 mm × 610 mm × 1450 mm |
| Net Weight | 125 kg |
