Particle Strength Tester

Particle Strength Tester
  • Particle Strength Tester
Produced by: Qinsun Instruments Co., LTD

All supplier products
Send product request

Standard

  • ASTM D4179: Standard Test Method for Single-Pellet Pressure Resistance of Catalysts and Catalyst Carriers
  • ASTM D6175: Standard Test Method for Radial Crush Strength of Extruded Catalyst and Catalyst Carrier Particles
  • ISO 9773: Methods for Testing Catalysts – Radial Crush Strength

Product Advantages

  1. Unrivaled Precision
    • Sub-micron Force Resolution: Detects forces as low as 0.001 N for fragile materials like pharmaceutical granules.
    • High-Speed Data Acquisition: 10,000 Hz sampling rate captures transient deformation events.
  2. Universal Applicability
    • Tests particles from 0.1 mm to 50 mm in diameter (spherical, cylindrical, irregular shapes).
    • Multi-Mode Testing: Compression, tension, shear, and indentation modes in one platform.
  3. Intelligent Automation
    • AI-powered load application adjusts speed and force in real-time to prevent sample damage.
    • Auto-Centering Fixture: Ensures perfect alignment for irregularly shaped particles.
  4. User-Friendly Workflow
    • 10.1” HD touchscreen with gesture control and multilingual interface (12 languages).
    • One-Click Testing: Preprogrammed protocols for ASTM/ISO standards simplify operator training.
  5. Data Integrity
    • Blockchain-secured data storage prevents tampering (compatible with 21 CFR Part 11).
    • Cloud-connected analytics for remote monitoring and collaboration.

Product Features

  • Non-Destructive Testing (NDT) Option: Ultrasonic imaging module visualizes internal cracks without breaking samples.
  • Environmental Chamber Compatibility: Temperature (-40°C to 200°C) and humidity (10%–95% RH) control.
  • Dynamic Force Profiling: Programmable force ramps with sinusoidal, triangular, or custom waveforms.
  • 3D Force Mapping: Scans particle surfaces to identify weak points before full testing.
  • Emergency Stop System: Laser-based safety curtain halts operation upon intrusion detection.

Technical Parameters

ParameterSpecification
Force Range 0.001 N – 5,000 N (500 kgf)
Force Accuracy ±0.1% of reading (1–5,000 N)
Displacement Resolution 0.01 μm
Testing Speed 0.001–1,000 mm/min (adjustable)
Return Speed Up to 2,000 mm/min for rapid cycling
Connectivity USB 3.1, Ethernet, Wi-Fi 6, Bluetooth 5.0
Power Consumption 600 W (max), 50 W (idle)
Dimensions 550mm (W) × 480mm (D) × 720mm (H)
Weight 75 kg (net) / 90 kg (gross)

Accessories Included

  1. Testing Fixture Kit:
    • Compression platens (2mm/5mm/10mm diameters).
    • Tensile grips with serrated jaws (0.5–50mm capacity).
    • Shear blade set (V-notch and flat options).
  2. Software Suite:
    • License key forParticleAnalyst Pro(Windows/macOS).
    • 6-month free access to AI-driven failure prediction module.
  3. Calibration & Safety:
    • NIST-traceable calibration weights (1g–500g set).
    • Emergency stop pendant with magnetic dock.
  4. Portability & Storage:
    • Shockproof carrying case with custom foam inserts.
    • Dust cover and anti-vibration pads.
  5. Documentation:
    • Quick-start guide (printed and digital).
    • Compliance certificates for ASTM/ISO standards.

Send product request

To: Qinsun Instruments Co., LTD
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

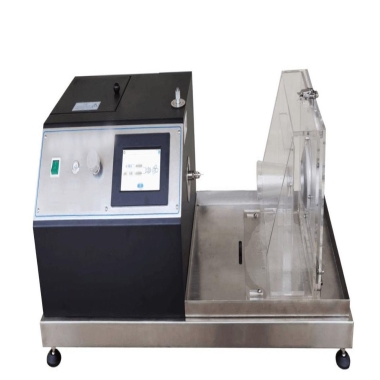

Medical Face Mask Synthetic Blood Penetration Tester
 Medical Face Mask Synthetic Blood Penetration Tester Applicable Standards: GB 19083-2010 YY/T 0691-2008 YY 0469-2011 ISO 22609 ASTM F1862-07 Features: 1. Mask fixture is metal human head mold, ...

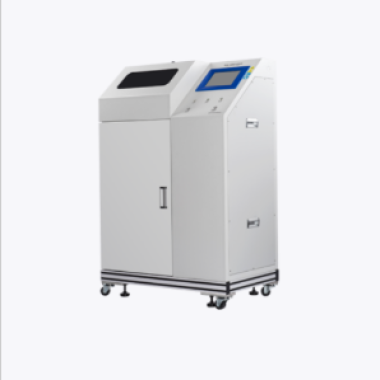

Solids Spontaneously Igniting Test chamber
 Solids Spontaneously Igniting Test chamber Product Description Conforms to the UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 33.3.1.4 Test N.2: Test ...

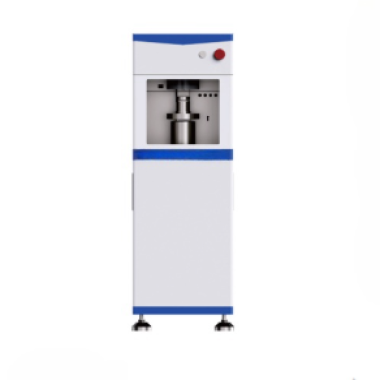

Battery Material Powder Compaction Density Testing System
