Xenotest | Light Fastness Tester Si220 (SunTest)
Get a quote：
Whats/App:+86 180 0160 0864
A Light Fastness Tester, or Xenon Tester, Accelerated Ageing Chamber, is used for xenon arc testing in dye fastness tests for lightfastness and weather resistance.Light fastness tester apply to light color fastness, anti-climate color fastness, light & perspiration color fastness and light aging tests of textile, paint, dye, coating, rubber, plastic, wood floor, paper and other materials, it have anti-climate functions of exposing to the rain, revolution and mist spraying.Light Fastness Tester are of two different cooling method: water cooling and wind cooling.
Application:
Qinsun si220 is a highly economic material color lightfastness tester that can test up to 250 samples simultaneously. It complies to industry standards ISO 105- B02. AATCC TM16 (option 3), and Marks & Spencer C9. C9A.
This light fastness tester is also apply to light color fastness, anti-climate color fastness, light & perspiration color fastness and light aging tests of paint, dye, coating, rubber, plastic, wood floor, paper and other materials, it have anti-climate functions of exposing to the rain, revolution and mist spraying.
Standard Compliance:
AATCC TM16-2004：Colorfastness to Light
AATCC TM16.3：Colorfastness to Light
AATCC TM169：Weather Resistance of Textiles: Xenon Lamp Exposure
ASTM G155：Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
ISO 4892-2：Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
ISO 16474-2：Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
ISO 105-B02：Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04;Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
ISO 105-B10:Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
M&S C9:Colorfastness to Light
M&S C9A:Colorfastness to wet light in the presence of alkaline or other chemical residues
For more relevant testing standards, please consult our professional engineers.
Product Advantages:
Energy-Efficient Air Cooling System
Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.
Low-noise operation (
Cost-Effective Maintenance
No water pipes, filters, or coolant replacements required. Simplified design minimizes downtime and maintenance costs.
Rapid Thermal Cycling
Achieve temperature shifts from -20°C to 80°C in
Advanced Spectral Control
Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.
User-Centric Design
10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.
Product Features:
Dual-Mode Cooling Technology
Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.
Intelligent Irradiance Control
Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).
Programmable Climate Control
Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).
Safety First
Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.
Modular Expandability
Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.
Accessories
Standard Kit:
1 × Air-Cooled Xenon Lamp (6500h lifespan)
2 × Adjustable Sample Racks (Max. 10 kg load)
1 × Calibrated Radiometer
1 × USB Data Logger (16GB)
1 × UV-Resistant Acrylic Viewing Window
Optional Add-Ons:
Humidity Control Module (-20°C to 80°C, 10%–95% RH)
Remote Monitoring Software (IoT-enabled)
Multi-Language Interface Pack (10+ Languages)
Spare Lamp Kit (2x Xenon Lamps + Filters)
Technical Parameters:
| Specification | Details |
|---|---|
| Xenon Lamp Power | 2.2 kW (Air-Cooled, 6500h lifespan) |
| Test Chamber Size | 700 × 500 × 500 mm (W×D×H) |
| Temperature Range | -20°C to 100°C (±2°C accuracy) |
| Humidity Range | 10%–95% RH (±3% accuracy) |
| Irradiance Range | 30–120 W/m² (300–400 nm, adjustable) |
| Test Cycles | 1–9999 hours (programmable intervals) |
| Power Supply | 220V/50Hz/60Hz, 20A (Single-phase) |
| Dimensions (W×D×H) | 1200 × 800 × 1800 mm |
| Weight | 350 kg (Net) |
Maintenance Information
Lamp Tube Cleaning: Regularly wipe fingerprints and dust from the lamp tube and filter surface using anhydrous alcohol to maintain light transmittance.
Water System Maintenance: The spray system must use deionized or distilled water, and filters should be replaced regularly to prevent nozzle clogging.
Heat Sink Cleaning: Periodically inspect the intake air filter of the air-cooling system and remove accumulated dust to ensure effective cooling.
Lamp Life Management: Closely monitor cumulative lamp usage time. Replace lamps promptly when irradiance fails to meet set values.
Send product request
Other supplier products
 |

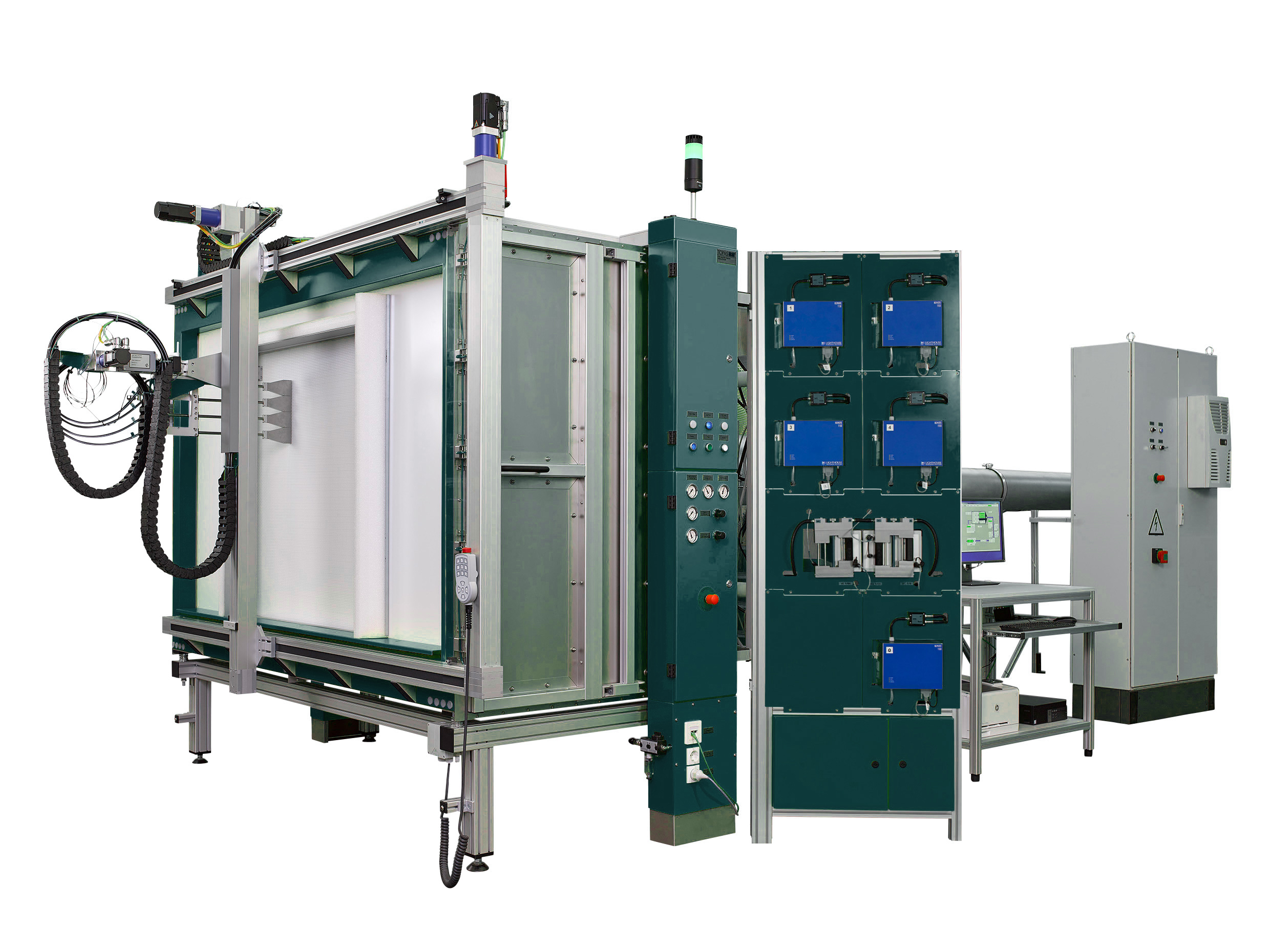

Automated HEPA/ULPA Filter Scanning Test System | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Automated HEPA/ULPA Filter Scanning Test System is designed for automated test... |
 |

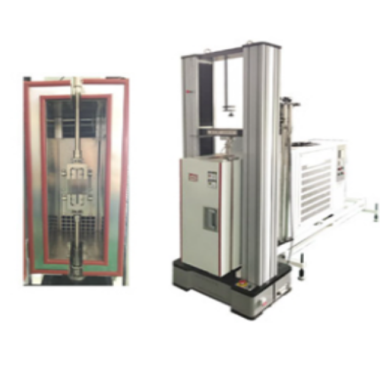

High and low temperature universal creep testing machine | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The High and Low Temperature Universal Creep Testing Machine is designed for long-... |
 |

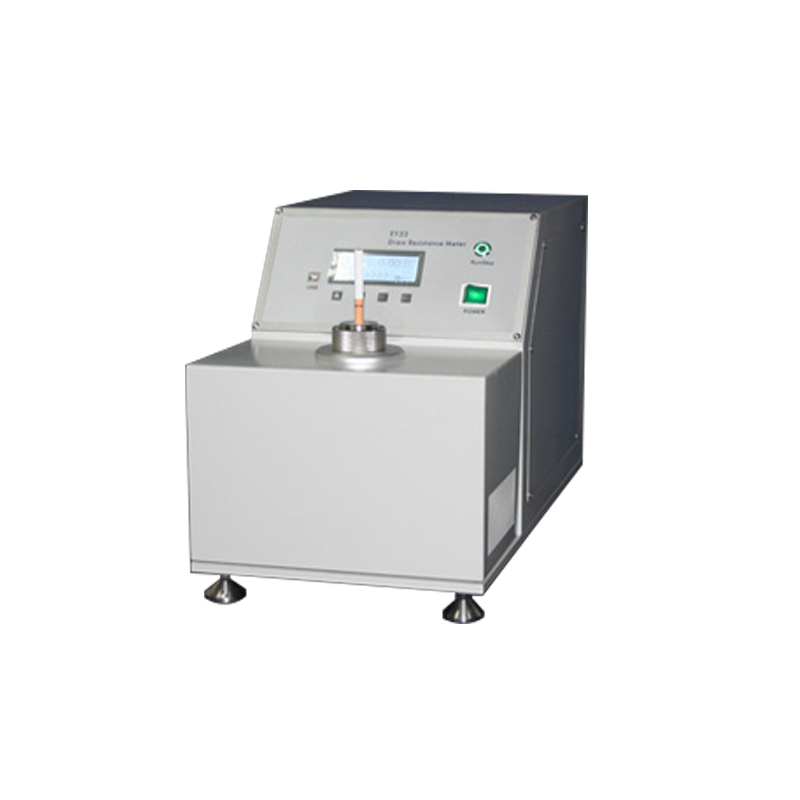

Cigarette Draw Resistance Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Cigarette Draw Resistance Tester is designed to measure the airflow resistance... |
 |

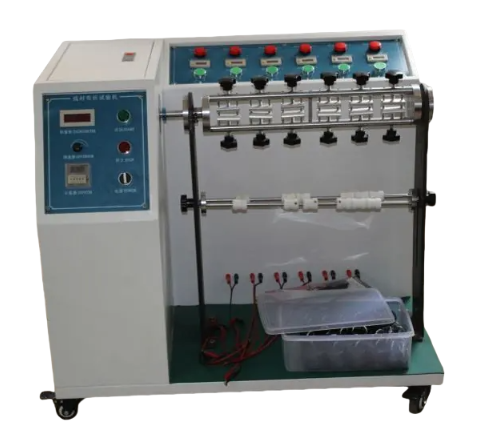

Wire Swing Bending Tester | Get a quote： Whats/App: +86 181 0160 0864 The Wire Swing Bending Tester is designed to simulate bending and swinging conditions that wires may en... |
 |

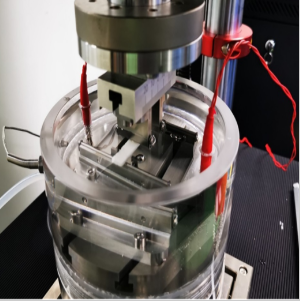

Absorbable Bone - connecting Plates Four - point Bending Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Absorbable Bone-connecting Plates Four-point Bending Tester is a specialized t... |
