Pipe coating scratch tester
Product Introduction:
Paint and varnish scratch resistance tester, also known as scratch resistance tester or balanced scratch rod adhesion resistance tester, is suitable for the scratch resistance evaluation of single coating or composite coating system of insulating color coated board. The scratch resistance of the coating is assessed according to the maximum weight of the spherical steel needle whether it scratches the coating or the steel needle does not scratch the coating.
Standard:
AS/NZS AS2924.2.ASTM C217.BS EN 438.2.BS EN 13310.BS EN 14323.BS EN 14688.DIN 53799.DIN 68861-4
Product Overview:
The scratch resistance tester of paint and varnish is suitable for the evaluation of scratch resistance of single coating or composite coating system of insulating color coated board, and the scratch resistance of coating is assessed by the maximum weight of spherical steel needle under a certain weight whether the coating is scratched or the steel needle is not scratched. The paint and varnish scratch resistance tester conforms to ISO1518. BS3900. ASTM D5178 and ASTM D2197 standards. The conductor substrate can display the scratched and unscratched curve on the screen in real time, and the test result is directly displayed on the screen: scratched or unscratched.
Technical parameters:
* Speed :1-120 mm/sec(adjustable)
* Travel :100 mm
* Power supply :220 V/50 HZ
* Standard steel ball needle diameter :1mm, 1.6mm steel ball needle can be purchased
* Standard weight :200g, 500g, 2000g each 1.50g, 100g, 1000g each 2 (can be purchased on request)
Send product request
Other supplier products
 |
Cleveland Open Cup Flash Point Test device | The Automatic Cleveland Open Cup Flash Point Analyzer is the latest addition to the Koehler Flash Tester family of products.This unit is robustly d... |
 |
Office Chair Caster Durability Test device | Implementation standards GB/T4085 EN425 Product features 1. The instrument adopts PLC touch screen control, simple and intuitive operation; 2. ... |
 |

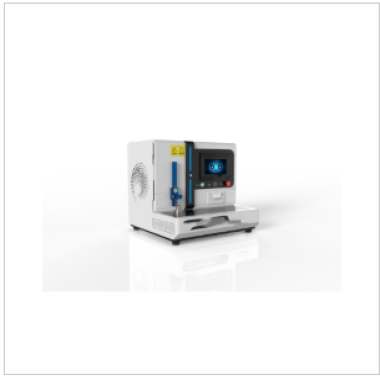

Guidewires Tip Flexibility Tester | Main Uses The guidewire tip flexibility tester is a specialized device used to evaluate the flexibility of the tips of medical guidewires. Its mai... |
 |
